Steel billet induction heating

Steel billet induction heating


Application: Forging , Forging & Rolling

Material Heated:Carbon Steel & Alloy Steel

Heating Method: Induction Heating

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Steel billet induction heating

Forever’s high power-density steel billet induction heating systems provide mill operators with the most efficient and cost-effective technology for bringing bars, blooms and billets to optimum temperature prior to a forming, rolling or forging operation. Our induction heating system are also well suited for temperature equalization for continuously cast billets coming off the caster and being sent directly to the rolling mill.

billet induction heating

Temperature control and consistency from the surface to the core, as well as over the length of the product, is usually a prime requirement.

● High efficiency solid-state power units

● Dual frequencies available for pre and post Curie heating

● Modular design for quick coil change to accommodate for different sizes

● Level control to centralize all bar sizes in coil opening

● Fully automated, PLC controlled material handing system

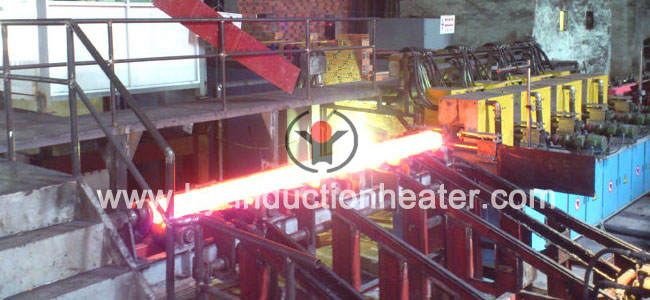

Billet induction heating rolling

  • Hot rolling/ reheating of Bars
  • Hot rolling/ reheating of Billets
  • Hot rolling/ reheating of Slabs
  • Hot rolling/ reheating of Plates
  • Hot rolling/ reheating of Blooms

    Successful cases

    Billet size Billet length Heating Temp. Production capacity
    60*60mm2 3m-4 m 1000℃-1100℃ 25T/H
    75*75mm2 3-6 m Room Temp.-1100℃ 25T/H
    100*100mm2 2 m 750℃-1000℃ 7T/H
    120*120mm2   750℃-1100℃ 30T/H
    120*120mm2 11.5-12.5m 950℃-1150℃ 90T/H
    125*125mm2 6  m Room Temp.-1200℃ 8T/H
    125*125mm2 2 m 750℃-1000℃ 7T/H
    130*130mm2 6 m 950℃-1150℃ 50T/H
    135*135mm2 6 m 950℃-1150℃ 100T/H
    150*150mm2 11.5-12.5m 950℃-1150℃ 70T/H质量英文版 001_副本companycustomer

    As our billet induction heater is all customized, the above parameters are only for your reference.
