Stainless steel hardening tempering

Stainless steel hardening tempering

Features:

Application: Hardening ,Annealing & Tempering

Material Heated:Carbon steel 45#,40Cr,42CrMo,65Mn

Bar Diameter Allow: Φ20-110mm

Pipe Diameter Allow: Φ60-300mm

Product Detail

Application Video

Product Tags

http://www.hy-inductionheater.com/products/stainless-pipe-heat-treatment-line.html

Stainless steel hardening tempering

Stainless steel induction hardening processes are used to impart specific mechanical properties to a component in order to render it fit for use.
Stainless steel induction  is a low temperature (150ºC to 650ºC) heat treatment intended to remove the stresses and brittleness caused by quenching and to develop the required mechanical properties.

As the leading factory of stainless steel hardening tempering line, we are focus on providing durable induction heat treatment equipment at reasonable price.

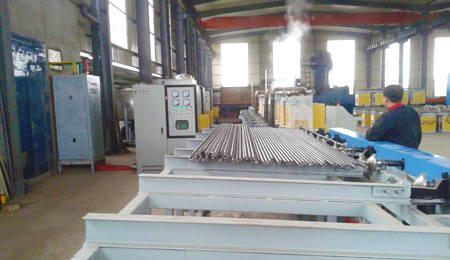

stainless steel hardening tempering line

Components for Stainless steel hardening tempering line

●     IF induction heating power supplies
●      Material storage rack & reserving device
●     Transportation system: The angle between roller axis and work piece axis is 18 ~ 21 °. The work piece is rotating and go forward at the uniform rate for uniform heating. Rollers between furnace are 304 non-magnetic stainless steel and water-cooled.

●     Induction heating coils: The coils diameter and length is customized made as per work piece size.
●     Rollers in heating area: As “V” type roller is working in the high temperature area, we punched in the center of the roll shaft and supply water to cool rollers..
●     Quenching box
●     Automatic discharging system: the roller is installed on the discharge end, driven by another speed motor.
●     Storage rack: After quenching and tempering for the work piece, it will be placed in storage rack.
●     Closed cooling system(This  component is optional, customer can prepare by themselves.)

Application

● Stainless steel pipe       ● Plate, steel plate
● Steel bar,round bars                          ● Grinding rods,grinding bars
● Sucker rod, piston rod              ● Seamless pipe,thick-walled pipe
● Casing, tubing                      ● Single prop
● Automotive Leaf Springs                             ● Wind power bolt
● Long bars & short bars                   ● Steel wire, steel strand

Successful cases

Steel bar diameter Automatic Control Power Design
Ø10-Ø28 mm IPC Control KGPS350KW Quenching+KGPS160KW Tempering
Ø42-Ø48 mm(Anchor Bolt) PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-60 mm IPC Control IGBT250KW Quenching+IGBT160KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-v110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
Pipe diameter Automatic control Power design
Ø95,Ø114 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø73.2,Ø88.9,139.7 mm(Drill pipe) IPC Control KGPS500KW Quenching+KGPS100KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering

If you are interested in our stainless steel induction heating equipment, Welcome to contact us at tom@foreverfurnace.com or call us at whatsapp +86-13303078975 for more detailed price & solution.
