Plate induction hardening line

Plate induction hardening line

Features:

Material ASMA36/JIS SS400
Plate size 18*300*2300
Bar length 3-7mm
Efficiency 30-40pcs/hr

Product Detail

Application Video

Product Tags

As one of the leading professional manufacturer of plate induction hardening line, Forever has mature technology and the latest IGBT technology, which can be suitable for more wide size of plate induction hardening  with more stable performance. (PS:The pictures for plate induction hardening line  is our real successful cases in the customer’s site. Please see the video for plate induction heat treating furnace)

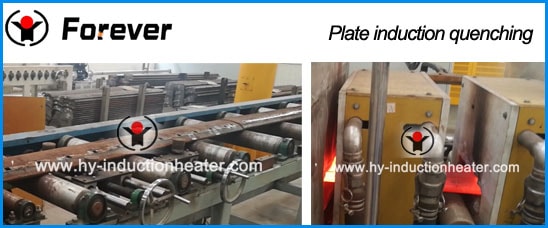

Site case for Plate induction hardening line

Product name Plate induction hardening line
Brand Forever
Material ASMA36/JIS SS400
Plate size 18*300*2300
Bar length 3-7mm
Efficiency 30-40pcs/hr
Hardness requirement HRC20-25

plate induction hardening machine

Main advantages for plate induction hardening line

●  The roller table between the induction heater is made of 304 non-magnetic stainless steel and through water for cooling. The other parts of the roller is 45 steel and surface hardening heat treatment.

●  Configurable integrated quench liquid circulation cooling system.

●   Roller grouping: Independently controlled for feeding group,induction heater and the discharge group, which is conducive to continuous heating without generating gap between the workpiece.

●   Temperature closed-loop system: quenching and tempering are all using America Raytek infrared thermometer and the German Siemens S7 to form closed loop control system with precise temperature control.

●   CNC system or PLC frequency control system to achieve workpiece positioning, scanning; Achieving automatic production by connection PLC and power supply.

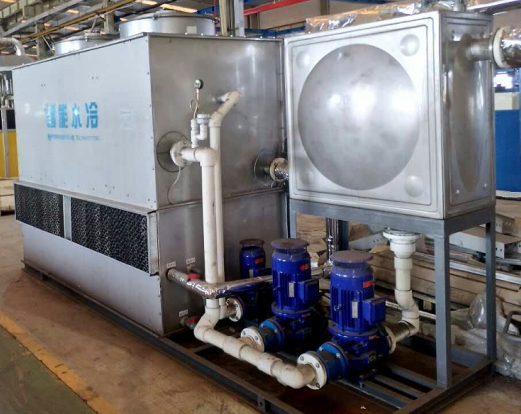

Enclosed cooling system for plate induction hardening line

●   The soft water closed recirculating doesn’t contact with air to avoid scaling, blocking phenomenon and Electrolysis phenomenon due to water quality problem;

●   Fan motor+coil+spray(Three treble cooling) the cooling effect is good;

●   Do not need to make pool;

●   Easy to move and save space.

cooling system for furnace

Contact-Us-Banner-1024x243-copy-copy

Contact person: Hailee Ma

Email:sales@foreverfurnace.com

Phone: 0086-18932783253(whatsapp, wechat)

Specialist of induction heating equipment and system in China; Glad to be your business partner in induction heating field.
