Induction plate heating

Induction plate heating

Features:

Application: Forging , Rolling  & Heat Treatment

Heating : Plate, Sheet,Slab

Power Allow: 100KW-8000KW

Length Allow:Not limited

Product Detail

Application Video

Product Tags

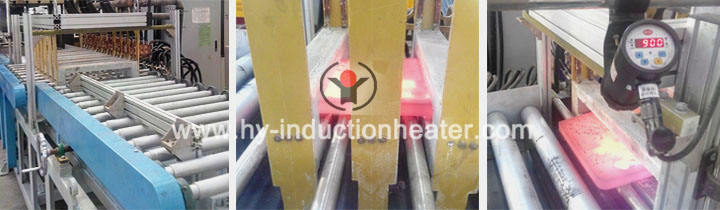

Induction plate heating

Forever high power-density induction plate heating furnace provide mill operators with the most efficient and cost -effective technology for bringing even the largest steel plate to the optimal temperatures for rolling. With fine induction coil design and temperature control system, Forever induction plate heating furnace can achieve uniform heating for the plate.

Induction plate heating furnace composition

●  Medium frequency power supply
●  Induction heater
●  Automatic feeder
●  Infrared thermometer
●  Remote console
●  Closed cooling machine

http://www.hy-inductionheater.com/products/induction-plate-heating.html



Induction plate heating furnace are designed to take over the plate heating process at the point in the thermal curve where gas-fired furnaces start to lose efficiency.

Unlike gas, induction plate heating systems maintain their high efficiency throughout their operating range.

In a typical induction plate reheating operation, the plate is brought to 1000 °C in a conventional gas-fired furnace, before moving into the induction system where it is raised to the precise temperature needed for rolling.

Because induction heats the metal directly, this operation occurs quickly, increasing plate through-put and reducing scale formation.

Generally, induction-based plate heating furnace require just 10% of the floor space needed for comparable gas-fired furnaces.

 High heating efficiency                          ●  Highly compact installations

 Quick plate throughput                            Closed loop temperature control

 In-line or oscillating heaters                   Reduced maintenance

 Reduced scale formation                          Worldwide service support

    cases

    Slab size Length Heating Temp. Production capacity
    60*60mm2 3m-4 m 1000℃-1100℃ 25T/H
    75*75mm2 3-6 m Room Temp.-1100℃ 25T/H
    100*100mm2 2 m 750℃-1000℃ 7T/H
    120*120mm2   750℃-1100℃ 30T/H
    120*120mm2 11.5-12.5m 950℃-1150℃ 90T/H
    125*125mm2 6  m Room Temp.-1200℃ 8T/H
    125*125mm2 2 m 750℃-1000℃ 7T/H
    130*130mm2 6 m 950℃-1150℃ 50T/H
    135*135mm2 6 m 950℃-1150℃ 100T/H
    150*150mm2 11.5-12.5m 950℃-1150℃ 70T/H

    As our induction heater is all customized, the above parameters are only for your reference.
