Tube induction heater

Tube induction heater

Features:

Application: Forging , Rolling & Quenching

Material: Carbon steel, Iron,Alloy steel,Stainless steel

Diameter Allow: Φ20-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Tube induction heater

Forever tube induction heater is used for tube heating before forging, tube annealing, tube quenching, tube preheating for coating etc. Please let us know the tube diameter, length and production capacity when you send us inquiry for tube induction heater

●  Pipe diameter: ø20-300mm
●  Length: Not limited

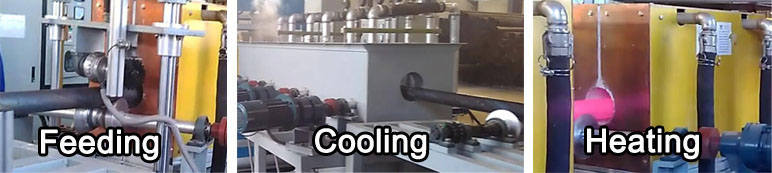

●  Feeding way: Continuous feeding one by one
●  Heating way: Induction heating

tube induction heating

Features for tube induction heater

Fast Heating… Development of heat within the work piece by induction provides much higher heating rates than the convection and radiation processes that occur in furnaces.

Fast Start-up... Furnaces contain large amounts of refractory materials that must be heated during start-up, resulting in large thermal inertia. The internal heating of the induction heating process eliminates this problem and allows much quicker start-up.

Energy Savings… When not in use, the induction heating power supply can be turned off because restarting is so quick. With furnaces, energy must be supplied continuously to maintain temperature during delays in processing and to avoid long start-ups.

High Production Rates… Because heat treating times are short, induction heating often allows increased production and reduced labor costs.

Main configuration for tube induction heater

 Solid state induction heating power supply

 Induction heating coils

 Optional remote control

● Optional automatic feeder and discharging device

Optional infrared thermometer

cases

Pipe diameter Automatic control Power design
Ø95,Ø114 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø73.2,Ø88.9,139.7 mm(Drill pipe) IPC Control KGPS500KW Quenching+KGPS100KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
