Rod hardening

Rod hardening

Features:

Heating: Rebar, piston rod, sucker rod, casing, tubing, round bars

Cooling way: Closed water cooling machine

Heating way: Induction heating

Product Detail

Application Video

Product Tags

http://www.hy-inductionheater.com/products/tmt-bar-heat-treatment-line.html

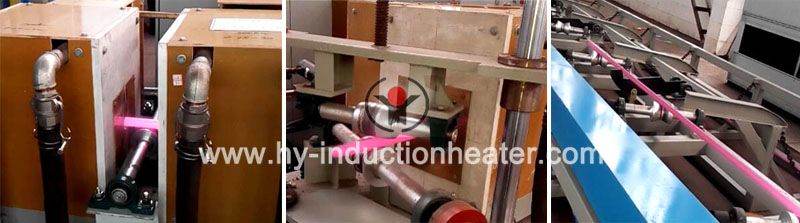

Rod hardening heat treatment line

Rod hardening production line is used for steel rod hardening heat treatment process with automatic adjustment of temperature. The hardening production line can be customized designed and made according to the size of the workpiece. It consists of induction heating system, feeding rack, induction heating power supply, PLC console and so on. The equipment can be equipped with infrared thermometer device, cooling tower, power transformer and low voltage distribution cabinet.

http://www.hy-inductionheater.com/case/rod-hardening.html

Rod hardening working process:

 Manual feeding→automatic turning rod→Transportation→hardening heating→Spraying→Rod receiving

 Except  for manual feeding, other processes are all automatically completed by PLC control and the entire process of production will be recorded.

Application

● Stainless steel pipe       ● Plate, steel plate
● Steel bar,round bars                          ● Grinding rods,grinding bars
● Sucker rod, piston rod               ● Seamless pipe,thick-walled pipe
● Casing, tubing                      ● Single prop
● Automotive Leaf Springs                             ● Wind power bolt
● Long bars & short bars                   ● Steel wire, steel strand

Design introduction

●   The rod is going through on the roller while rotating( roller has function to avoid rod head automatically
●   In order to ensure the rotation speed of  rod in transmission process, the transmission device is controlled by our CNC control system developed by ourselves
●   In order to reduce rod deformation,we installed pinch rollers on both sides of inductor. At the same time, this design will avoid rod end.
●   PLC controlled for heating & transmission; avoid threaded part heating automatically
(automatically adjusting rotation speed, transmission speed and heating power) ensuring more uniform quenching.
●   Based on the above requirements, we design the power is 200KW, frequency is 30000Hz, actual working frequency is about 20000Hz.
●   PLC main control system
Siemens PLC and 10-inch color touch screen;there is United States Raytek infrared thermometer in the inlet and outlet of the furnace,which achieves closed-loop control and production control.
