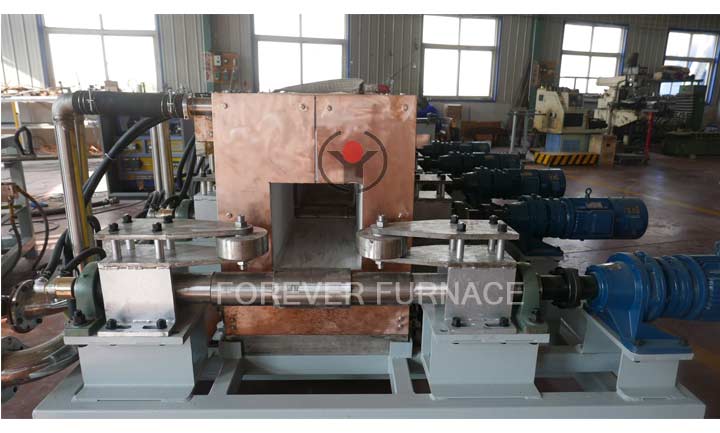

Square billet induction heating furnace FOREVER

Product Usage: Suitable for rolling and heating metal workpieces such as square billets, continuous casting billets, cold billets, stainless steel, etc.

Forever is committed to the production and design of square billet induction heating furnace with many years of experience. The process is mature and stable, and the operation is reliable. The square billet heating furnace has a one click operation, and one person can control the production of the entire medium frequency induction heating furnace. During operation, there is complete data monitoring, process records, and strong traceability. The specially customized human-machine interface for the square billet heating furnace constantly displays production data, and a professional technical team, To provide you with high-quality products and satisfactory services.

Technical parameters of square billet induction heating equipment :

1. Equipment brand: Yuantuo Electromechanical

2. Processing customization: Yes

3. Equipment name: Square billet heating furnace

4. Square billet size range: (6mm x 6mm) – (500mmx500mm)

5. Square billet length range: over 2 meters

The mechanical components of the billet heating furnace include the furnace frame, feeding mechanism, feeding mechanism, and discharging mechanism. The action setting and heating rhythm are completed by LPC.


1. Feeding mechanism

The feeding mechanism is completed by a storage platform, a V-shaped groove in front of the square billet induction heating machine , and a conveying device. Install a roller discharge mechanism at the discharge port to prevent the material from colliding with the furnace outlet.

2. Furnace frame

It is a welded component of shaped steel, containing water, circuit, gas components, capacitor slot copper bars, etc. Above is an inductor.

3. Infrared temperature measurement device

The temperature measurement device for the billet heating furnace adopts a non-contact monochromatic infrared thermometer, equipped with temperature display and multi output interface, for use by printers or recording instruments. There is a temperature display on the external control panel, which is characterized by high accuracy, good reliability, and strong resistance to environmental influences. When the measured temperature exceeds the set value, there is an audible and visual alarm function.
