Steel pipe hot rolling

Steel pipe hot rolling

Features:

Application: Rolling, Forging

Heating: rebar,round bar, pipe, deformed bars

Diameter Allow: Φ20-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Steel pipe hot rolling heating furnace

Having rich experience and practice in Steel pipe hot rolling heating furnace design, process, manufacturing and management, Forever has hardware and software senior engineers with decades of working experience in the field of induction heating. Familiar with the connotation of induction heating, combining the technology and equipment perfectly, we have independent intellectual property rights in the core technology and obtained a number of national invention patents and practical new-type patents.

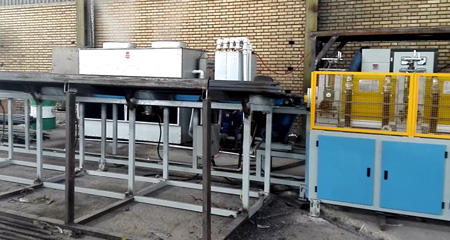

steel pipe heating for rolling

Description for steel pipe hot rolling heating equipment

●    Power supply system: Double rectifier twelve pulse KGPS2500KW/1000Hz intelligent IF power supply.
●    Transmission roller and pressure roller: Rollers between the furnace are made of 304 non-magnetic stainless steel and water-cooled, and other parts of the roller is made of 45 steel and the surface is hardened.
●   Inductor design: Variable pitch, design of preheating stage, heating-up stage and constant stage, which is more energy-efficient.
●    Infrared temperature measurement : Setting infrared temperature measurement device at the discharge, so that the steel pipe  temperature can be controlled in the allowed range before charging into the rolling machine.
●    Energy transformation : The power consumption is 280-310 KW/H for heating steel to 1000℃.

Configuration

No.

Specification

Quantity

1

IF induction heating power Supply

1 set

2

Capacitor Cabinet

1 set

3

Induction heater

1 set

4

Roller Table

1 set

5

Storage rack,the length is 6 meters

1 set

6

Feeding rack including transmission roller

1 set

7

Infrared thermometer

1 set

8

Remote console

1 set

9

Product qualification certificate and maintenance instruction

If you are interested in  induction heating equipment, please send us inquiry at sales@foreverfurnace.com or call us at whatsapp +8618932783253.
