Steel billet heat treatment furnace
|Application||Steel billet heating, rolling,forging,shearing
Product Name: Steel billet heat treatment furnace
Forever steel billet heat treatment furnace can be used for different material heat treatment such as induction heating,forging,rolling, extrusion, welding, brazing, hardening,tempering,hardening and tempering and so on,If you are interested,please feel free to contact us.
Steel billet heat treatment furnace inductor design
1.The furnace adopts square design;Copper tube use T2 oxygen-free copper winding.
2.The wall thickness of the furnace is more than or equal to 2.5mm.The material of furnace holding temperature has good features of high strength, high temperature resistance and longer service life.
3.Packaged with 5mm copper plate to the furnace inlet and outlet,which can reduce the magnetic leakage and increase service life.The cabinet under the furnace is made of high strength aluminum alloy, which can reduce the magnetic leakage and the influence of heat on other devices.

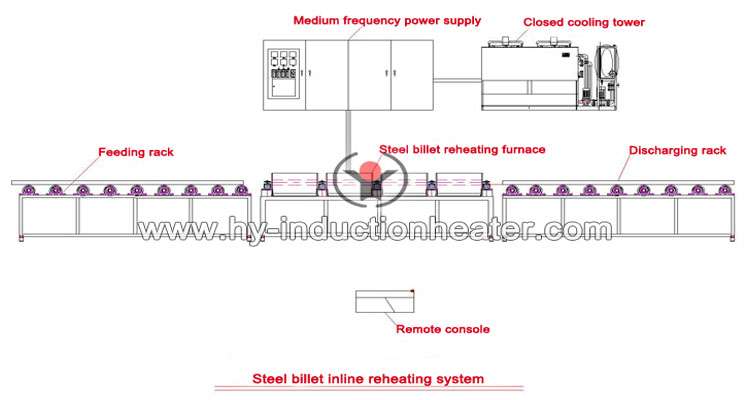

Steel billet heat treatment furnace configurations and Usage:
|PLC Console||Available to record,storage,inquiry,print all the production real parameters(including production efficiency,material temperature,power supply running parameters).|
|Heavy Billet Lifting Machine||Used to lift bigger diameter and heavier billet automatically.The worker can adjust the speed with converter and time relay,which reduce labor intensity and improve production efficiency.|
|Rotary Table Type Automatic Feeding Machine||Working with roller feeding device to achieve fully automatic production,reducing the labor cost|
|Steel billet Separation Device with Infrared Thermometer||Setting the temperature range of heated billet as per production temperature requirements.Then we can separate high temperature billet from low temperature billet.|
|Pinch Roller Feeding Device||Working with fully automatic feeding machine to achieve automatic production|
|Small automatic supplying and Air Cylinder Pushing Device||Automatic feeding to avoid labor’s missing material|
|Chain fast lifting machine||Used for drawing off the long steel billet quickly or furnace protection|
We are the leading steel induction heat treating equipment manufacturer in China.Any question about induction heat treating,welcome to contact us.We will be at your service.
