Steel bar hot rolling

Steel bar hot rolling

Features:

Application: Forging ,Rolling

Material: Carbon steel, Brass,Iron,Alloy steel,Stainless steel,Aluminum

Diameter Allow: Φ20-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Steel bar hot rolling induction furnace

Forever bar induction heating furnace is used for steel bar heating/preheating before hot rolling with advanced induction heating technology and powerful service team.

Induction heating is efficient, easily controlled, uses no energy when not heating, and puts the heat where you want it, when you want it. No idle time, no massive refractories to heat, and close coupling enables you to use energy in the best possible way.

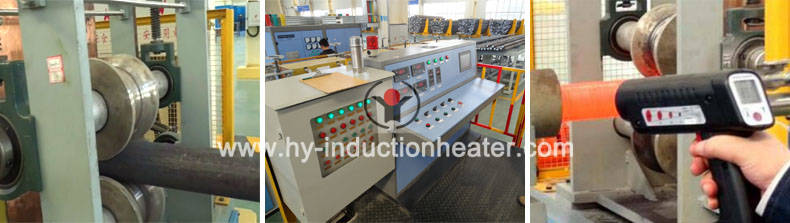

induction heating steel bar

 Steel bar heating hot rolling

● Hot rolling/ reheating of Bars
● Hot rolling/ reheating of Rods
● Hot rolling/ reheating of Slabs
● Hot rolling/ reheating of Plates
● Hot rolling/ reheating of Billets

http://www.hy-inductionheater.com/case/bar-induction-heating.htmlf

Benefits

● High -efficiency solid-state power units
● Standard units available in frequencies between 60 Hz and 10000 Hz
● Dual frequencies available for pre and post Curie heating
● Modular design for quick coil change to accommodate for different sizes
● PLC control;closed-loop temperature control
● Fully automated, PLC controlled material handing system

    Successful cases

    Bar Diameter Bar Length Heating Temp. Production capacity
    Φ36-45mm 1500mm 1125°C ± 25 3T/H
    Ø60mm 6000mm 1200℃ 4.4T/H
    Ø70mm 6000mm 1200℃ 5.3T/H
    Ø80mm 6000mm 1200℃ 6T/H

    As our billet induction heating furnace is all customized, the above parameters are only for your reference.
