Magnetic induction heating system

Magnetic induction heating system

Features:

Application: Forging , Rolling & Quenching

Material: Carbon steel, Brass,Iron,Alloy steel,Stainless steel,Aluminum

Diameter Allow: Φ20-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

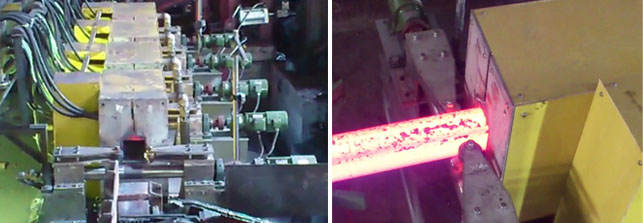

Magnetic induction heating system

The magnetic induction heating system can be used in the process of : heating before hot working, hardening, brazing, welding, annealing, tempering, coating. Forever magnetic induction heating system can be equipped with a wide range to automatic systems.

Forever magnetic induction heating system is available for:

● Solid bars: Steel bar, aluminum bar, copper bar, silver bar, magnesium alloy bar, titanium alloy bar
● Pipe: Seamless pipe, welded pipe, round pipe, square pipe
● Billet: Large billet, square billet

Forever magnetic induction heating system includes:

● Solid induction heating power supply
● Induction bar/pipe/billet heater
● Automatic feeding and discharging system
● Remote console
● Closed cooling tower

http://www.hy-inductionheater.com/products/magnetic-induction-heating-system.html

Features for magnetic induction heating system

 Efficient and quick heating
● Accurate, repeatable heating
● Safe heating as there is no flame
● Equipped with infrared pyrometer and automatic feeder(optional)
 New type power supply, saving power

NEW TYPE POWER SUPPLY for magnetic induction heating system

● Power saving 10% -15%:No harmonics, high power factor, load output voltage is high, the load coil current is low,small power consumption.
● Using special transformer for electric furnace.
 The furnace has high reliability: This product uses the latest DSP control technology, with reasonable structure, easy commissioning & reliable     performance, which has automatic protection functions including water temperature, water pressure, phase shortage, over-current, under-voltage to ensure The product is running in stable and reliable condition.
 Adopt famous brand components which reduce fault rate and make sure the equipment can run reliably, thereby reducing the shutdown probability caused by failure.
 Advanced technology & Easy maintenance: Having simple structure,perfect protection for control circuit & the most advanced touch screen control, our power supply can show complete failure and find the error.It adopts DSP control technology, which has a high processing speed, which ensures the efficient and orderly operation of the device functions. real-time computing function and real-time simulation and simulation capability.

cases

Bar Diameter Bar Length Heating Temp. Production capacity
Φ36-45mm 1500mm 1125°C ± 25 3T/H
Ø60mm 6000mm 1200℃ 4.4T/H
Ø70mm 6000mm 1200℃ 5.3T/H
Ø80mm 6000mm 1200℃ 6T/H
Billet size Billet length Heating Temp. Production capacity
60*60mm2 3m-4 m 1000℃-1100℃ 25T/H
75*75mm2 3-6 m Room Temp.-1100℃ 25T/H
100*100mm2 2 m 750℃-1000℃ 7T/H
120*120mm2   750℃-1100℃ 30T/H
120*120mm2 11.5-12.5m 950℃-1150℃ 90T/H
125*125mm2 6  m Room Temp.-1200℃ 8T/H
125*125mm2 2 m 750℃-1000℃ 7T/H
130*130mm2 6 m 950℃-1150℃ 50T/H
135*135mm2 6 m 950℃-1150℃ 100T/H
150*150mm2 11.5-12.5m 950℃-1150℃ 70T/H

As our induction heater is all customized, the above parameters are only for your reference.
