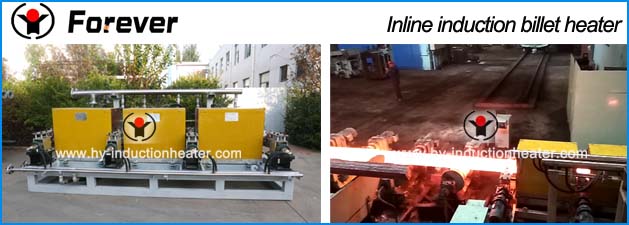

Inline induction billet heater
Features:
| Material | Carbon steel |
| Billet size | 165*165mm |
| Billet length | 12000mm |
| Process | Reheating billet for rolling |
Product Detail
Application Video
Product Tags
Specialized in manufacturing inline induction billet heater for 14 years, especially in 2017, we designed and produced 7 sets of large power inline billet induction heater. At present Forever inline induction billet heater has exported to Taiwan, Vietnam and got good feedback.
The reference for continuous billet heating furnace
| Product name | Inline induction billet heater |
| Brand | Forever |
| Material | Carbon steel |
| Billet size | 165*165mm |
| Billet length | 12000mm |
| Process | Reheating billet for rolling |
| Line speed | 16m/min |
| Power required | 6000KW |
Inline induction billet heater main advantages
● Automatic feeding, heating, cooling and discharging, saving a lot of manpower and resources
● Mature temperature closed-loop control system to ensure quality consistency and reliability: Our system set infrared thermometer at the port of heater and the thermometer will show the heating temperature in time. If the heating temperature is out of range, it will give signal to the control system. The control system will adjust the heating temperature through regulating the output power.
● ”One-click” quick operation, the entire production line will automatically follow the set process parameters to start running
● Siemens PLC control system, can store, query and print the specifications of the process parameters.
● The operation language can be show in English and Chinese or as per user’s requirements.
Forever inline billet induction heating equipment configuration
● 12 pulse power supply can reduce the harmonic influence on the grid.
● Induction heating coils
● Stainless steel roller table
● Closed cooling machine
● Main console
● Closed-loop control system
After-sales service for Inline induction billet heater
● 1 year warranty period since the installation and commissioning of the equipment
● Free spare parts during warranty period
● Any feedback from the users, Forever will give response within 24 hours.
● Long-term accessory support and technical services
| Bar Diameter | Bar Length | Heating Temp. | Production capacity |
| Φ36-45mm | 1500mm | 1125°C ± 25 | 3T/H |
| Ø60mm | 6000mm | 1200℃ | 4.4T/H |
| Ø70mm | 6000mm | 1200℃ | 5.3T/H |
| Ø80mm | 6000mm | 1200℃ | 6T/H |
| Billet size | Billet length | Heating Temp. | Production capacity |
| 60*60mm2 | 3m-4 m | 1000℃-1100℃ | 25T/H |
| 75*75mm2 | 3-6 m | Room Temp.-1100℃ | 25T/H |
| 100*100mm2 | 2 m | 750℃-1000℃ | 7T/H |
| 120*120mm2 | 750℃-1100℃ | 30T/H | |
| 120*120mm2 | 11.5-12.5m | 950℃-1150℃ | 90T/H |
| 125*125mm2 | 6 m | Room Temp.-1200℃ | 8T/H |
| 125*125mm2 | 2 m | 750℃-1000℃ | 7T/H |
| 130*130mm2 | 6 m | 950℃-1150℃ | 50T/H |
| 135*135mm2 | 6 m | 950℃-1150℃ | 100T/H |
| 150*150mm2 | 11.5-12.5m | 950℃-1150℃ | 70T/H |
