Steel billet induction heating equipment

Product Name: Steel billet induction heating equipment

Typical Application:

Forever steel billet induction heating equipment can do heat treatment according to different material shape and heating process requirement with power supply of 300-8000Hz. Please tell us your billet size,length and production capacity,then we will give you the most suitable and cost effective solutions for steel billet induction heating equipment.

Billet induction heating details:

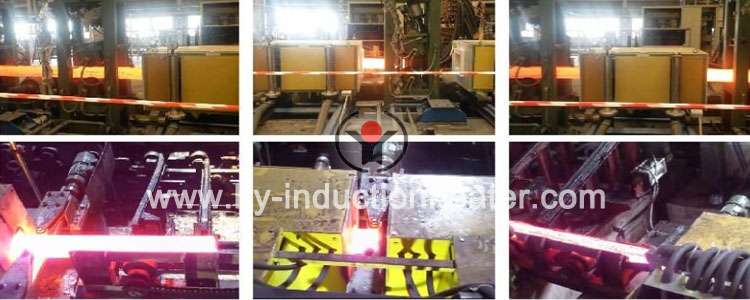

 Billet induction heating system

We take one successful case of our customers as the example for your reference.

Processing Technology and Technical Parameters

1.Steel range material need to be heated:Carbon steel,alloy steel

2. Steel billet dimension:85mm×85mm×（3000～6000）mm；

3.Steel billet Max. Camber before sending to the furnace:≤3mm/M

4.Temperature before sending billet to the furnace:Room temperature

5. Steel billet tapping temperature: 1100℃

6.Steel billet heating capacity:25t/h(On the basis of 20 working hours per day and the production capacity is 500 tons per day.)

7.Control for heating process:PLC automatic control for the whole heating process and show the production records such as the  number of billet heating and so on.

8.Equipped with United States Raytek infrared temperature measurement devices in the inlet and outlet of the furnace.

9.Water cooling carrier roller :Non-magnetic stainless steel

10.Variable frequency speed regulation range(practical range); 4.00-11.00）meter/minute

Forever is the leading manufacturer of billet induction heat treating equipment in China. Following the principle of “Devotion makes us professional”, Forever is researching development the Reliability and energy efficiency of induction heating equipment for more 16 years.
