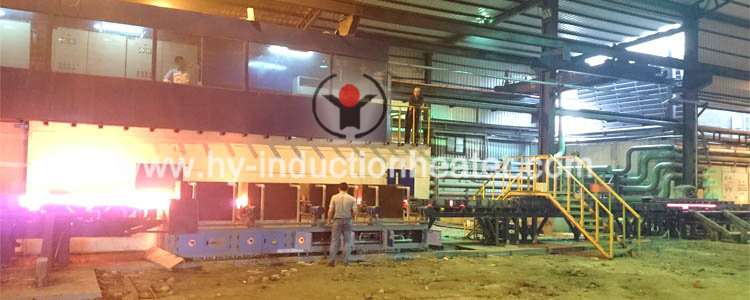

Steel billet continuous casting and rolling system

Steel billet continuous casting and rolling system


Application         Steel billet heating before hot rolling
Power  100KW-8000KW
Non standard Professional customization
Temp.control Infrared thermometer

Product Detail

Application Video

Product Tags

Product Name: steel billet continuous casting and rolling system


Typical application:

Steel billet continuous casting and rolling is non-standard product, so please provide the steel billet width,length, thickness, heating temperature and production capacity, then our engineer team will give you the high efficient technical solution and price.

Steel billet reheating/ steel billet continuous casting and rolling machine


 ● Power supply system: Double rectifier 12 pulse or 24 pulse KGPS1000-10000KW/1200Hz single set of power supply or multi-set of power supplies.

  Feeding system:Independent motor reducer drive for each axis, set the multi-axis drive, single inverter control to make multi-axis synchronous running.

 ● Guiding system: 304 non-magnetic stainless steel guide wheel and keep the guide wheel axial direction have appropriate flexibility to adapt the billet bending in the allowed range.

 ● Temperature closed-loop control system: Steel billet continuous casting and rolling  system includes America Raytek infrared thermometer and German Siemens S7. According to the billet initial temperature before charging into the inductor and feeding rate, the system will automatically adjust the power so that the heating temperature can keep constant before discharging the furnace.

 ● IPC system: Powerful functions including record and display the current working parameters and status, billet parameters memory, storage, memory, fault alarm, power down automatically and maintain constant temperature and so on.

▲ Energy transformation: The power consumption is 40-60 KW/H according to different billet surface temperature.

At present, Forever has many successful cases of billet induction heating equipment :Vietnam billet reheating line-the billet size is 120mm*120mm; China deformed bar hot rolling heating line-the billet size is Ø25Ø40mm; India billet automatic heating line-the billet size is 200*200*450mm.

750质量英文版 001_副本


More requirements about our induction heat treating system, please let us know.

Overseas manager: Tom Wang

Phone: 0086-13303078975(whatsapp, wechat,line)

Specialist of  bar heat treatment furnace in China; Glad to be your business partner in induction heating field.
