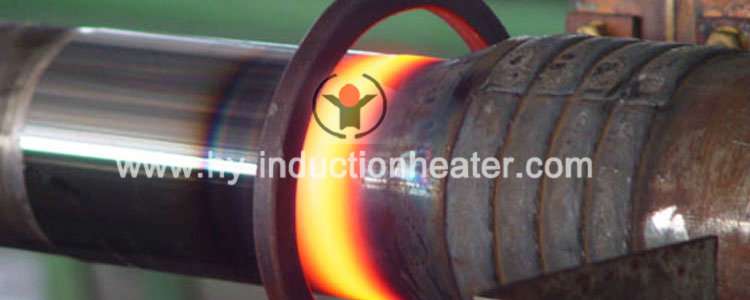

Weld seam annealing system
|Application||Weld seam annealing, annealing,tempering, preheating, forging, rolling, extrusion,|
|Power||100 KW-10000 KW|
Product Name: Weld seam annealing system
● Pipe diameter：6.625″ – 20″ （168.275-508mm）
● Pipe wall thickness：0.188“-0.625″（4.775-15.875mm)
● Pipe length：Continuous feeding
● Steel grade：X42-X60 ASI pipe
● Heating temperature：900℃
● Line speed：0.625″ （15.875mm）–10m/min,
The heating equipment mainly composed of intermediate frequency power supply, capacitor, inductor and closed cooling tower, the total power is 1000KW. Automatic temperature control system consists of industrial control computer, PLC, two sets of infrared thermometer, two sets of photoelectric switch and two speed testers. In the design and production of the entire equipment, we will ensure the nice appearance and simple structure as much as possible and minimize the equipment occupied space, materials selected is durable.
The pipe seam annealing system has features of stable, reliable, precise control and complete protections, which can control the pipe heating temperature at a high accuracy to ensure the pipe heating temperature can be up to 900℃ and temperature difference is in the required temperature range (± 10 C).
Outstanding advantages of weld seam annealing system
● Due to fast local heating for weld, the steel tube oxidation and deformation is minimum.
● Accurate and consistent diathermy makes the weld region get fine grain structure, so it can reach annealing process requirement, improving the mechanical properties of the welded pipe and extending pipe service life.
● Perfect protection and reliable performance.
● Stable tissue, eliminate internal stress and processing hardness.
● Easy to install and move.
● Quick change type furnace: user can replace the furnace within 5 minutes.
● Environmental protection: no pollution, noise and dust.
● Available for different shapes of the work piece.
Please kindly tell us:
The steel tube diameter and pitch for weld seam annealing?
The transmission speed or production capacity?
These will help us to choose the suitable power.
