Thick-walled pipe quenching tempering

Thick-walled pipe quenching tempering

Features:

Application: Quenching & Tempering

Material Heated:45#,40Cr,42CrMo,65Mn

Diameter range: not limited

Heating way: Induction heating

Product Detail

Application Video

Product Tags

Thick-walled pipe quenching tempering line

●  Product name:Thick-walled pipe quenching tempering line, Thick-walled pipe induction heat treating line
●  Diameter range: not limited
●  Length range: Not limited
●  Product strength: Uniform heating, heating speed is adjustable,PLC control.
●  Cooling way: Spray cooling

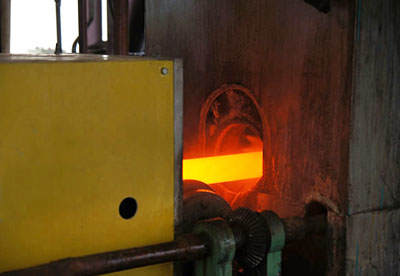

Thick-walled pipe quenching tempering line

Thick-walled pipe quenching tempering line parameters

●  Casing diameterø60.32-114.30mm
●  Casing length9-14m
●  Temperature for quenching900-930℃
   Temperature for tempering550-580℃

Configuration

Name Specification Quantity
Series energy-saving IF power KGPS 1300KW/500HZ  2 Sets
Induction heater GTRø60.32-114.30mm 4 segments
Capacitor cabinet Capacitor & bars inside  2sets
Equipment connection cable Water cable ≤ 4m 2Pairs
Storage platform and loading device Pneumatic automatic loading  material 1Set
Conveying device Length is 8 meters 1set
Spray cooling machine 1set
Discharging device 1set
Receiving platform 1Set
Remote console PLC automatic control & frequency control cabinet 1Set
Closed cooling tower 100T 1 Set
Infrared thermometer With digital display device  1Set

Features & control system of intelligent induction heating power supply

●  Parallel resonance design, phase-shift control; mature and stable performance; more advantages for the power of 3000KW or above.
●  DSP control, start with instant capture & Phase-Locked, meet the requirement of frequent start and stop ; 100% successful start rate.
●  Self-Adaptive at frequency variation or load variation;the frequency adaptation range is 200-10000Hz; induction furnace replacement is automatic matching, no need to make any manual adjustments.
●  The power supply cabinet adopts T2 copper which is processed by sandblasting and passivation; low leakage inductance, antioxidant, effectively reducing line losses.
●  Full touch screen control, pure digital setting, with complete process record and strict purview control.The main parameters can be one key recovery of the factory settings.
●  Per single output power 50 ~ 6000KW, frequency 200 ~ 10000Hz.

Contact-Us-Banner-1024x243-copy-copy

Contact person: Hailee Ma

Email:sales@foreverfurnace.com

Phone: 0086-18932783253(whatsapp, wechat)

Specialist of induction heating equipment and system in China; Glad to be your business partner in induction heating field
