Steel plate quenching induction heating Equipment

Forever Electromechanical specializes in producing steel plate induction hardening equipments. As long as you tell us your workpiece size, product specifications, heating temperature, process requirements, and the heating method you are currently using, Forever Electromechanical will provide reasonable suggestions for your process improvement and choose the appropriate plate induction quenching furnace for your workpiece requirements, reducing production costs, improving quality and efficiency.

Induction heating equipment sprayer: Forever Electromechanical uses a circular spray device made of stainless steel material, which is installed at the discharge end of the steel plate induction quenching equipment sensor. The workpiece passes through the sprayer, and high-pressure cooling water is sprayed from the spray holes on the inner wall of the sprayer to quench the workpiece. There is a water collection tank below the sprinkler, and the cooling water flows into the quenching circulating water tank through the water collection tank.

steel-plate-induction-heat-treatment-machine1113

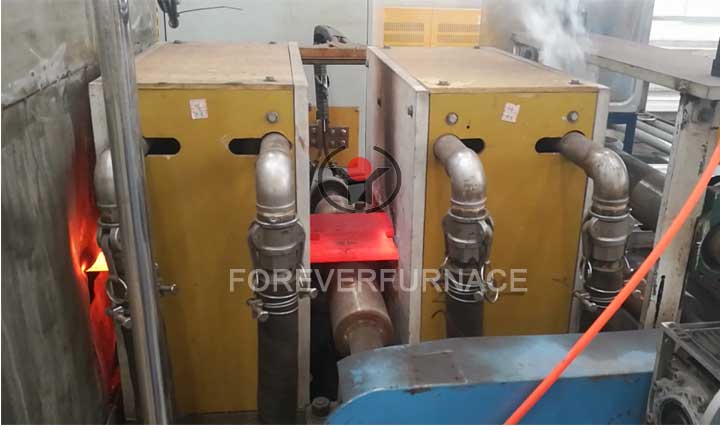

Plate type quenching furnace sensor: The salt reactor copper tube is wrapped with T2 oxygen free copper, and the wall thickness of the copper tube is greater than or equal to 3.0mm. The insulation material of the sensor has high strength, high temperature resistance, and longer service life. The inlet and outlet ends of the sensor are sealed with 5mm copper plate, which greatly reduces magnetic leakage and extends the service life. The sensor chassis is made of high-strength aluminum alloy to reduce the impact of leakage and heat on other components. A water-cooled roller is installed between every two sensors, and each roller is equipped with a variable frequency speed motor.

Dual color infrared thermometer and display: The temperature measurement device for the board quenching furna Steel plate induction hardening furnace adopts a non-contact dual color infrared thermometer, which can be used for temperature measurement in harsh environments with dust and smoke. It is equipped with temperature display and multiple output interfaces for use with printers or recorders. There is a temperature display on the external control panel, which has the characteristics of high accuracy, good reliability, and strong resistance to environmental influences. When the measured temperature exceeds the set value, there are sound and light alarm functions.

The technical personnel of Forever Electromechanical provide customers with a good solution for free quenching and rewiring wire of sheet metal to achieve the rationalization of equipment value. After the quenching and tempering wire of the sheet metal is completed in our company, it enters the initial debugging stage and is supervised by an engineer responsible for this induction heating equipment. It can only be shipped after the equipment is accepted.
