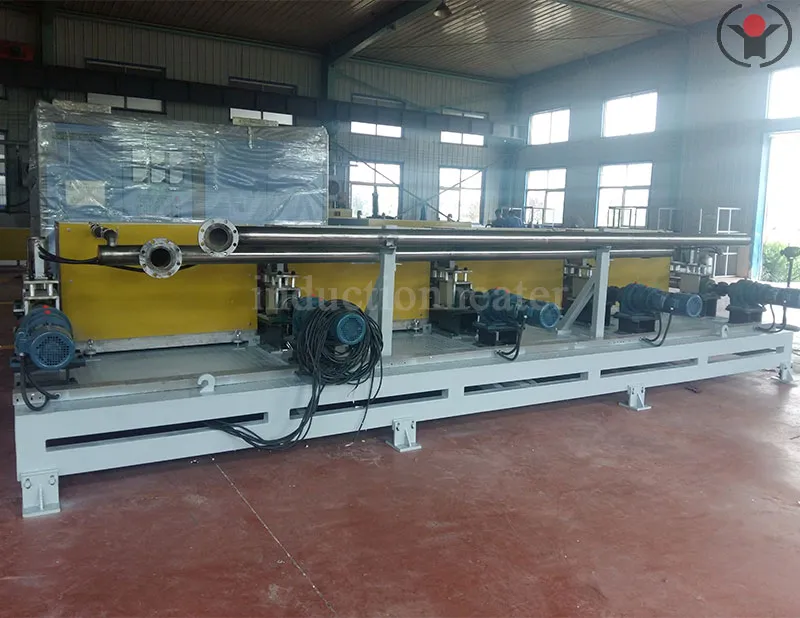

Steel Billet Induction Reheating Furnace

The steel billet reheating furnace is customized for users by Yuantuo Electromechanical Equipment Manufacturing Co., Ltd. Yuantuo has multiple successful cases of steel billet reheating furnaces. We have selected Hebei Yuantuo Electromechanical as the preferred supplier for steel billet electric induction heating furnaces. We have many years of production experience in the field of induction heating equipment, and the induction heating equipment adopts IGBT induction heating power supply control, which is energy-saving and environmentally friendly, with low power consumption.

★ Steel type and material: carbon steel, alloy steel;

★ Steel billet size: 120mm * 120mm * 6000mm;

★ Before entering the furnace, the steel billet has a large curvature of 1000mm and a large curvature of 4mm

★ Surface temperature of steel billet before entering the reheating furnace: 850 ℃

★ Control system: The entire heating process is automatically controlled by PLC, and production records such as heating quantity are displayed in a timely manner. This console is designed for standalone use, with a specially customized human-machine interface, highly user-friendly operation instructions, fully digital and deep adjustable parameters, and a one click restore function. It is easy to operate.

★ Power supply requirements: Dual power transformers, 12 pulse rectifier power supply, capable of infinitely reducing harmonic pollution and improving work efficiency.

★ Feeding and guiding system: Each axis is driven by an independent motor reducer, with multiple axis drives and a single frequency converter control to synchronize the operation of multiple axes. The components are selected from well-known brands, with reliable quality and stable operation. Using 304 non-magnetic stainless steel guide wheels, the axial elasticity of the guide wheels is maintained to adapt to the allowable bending range of the steel billet.

★The cabinet is entirely sandblasted, sprayed with plastic, and baked with paint. The waterway is made of thick walled stainless steel. The secondary heating furnace for steel billets is corrosion-resistant and has a long service life. The equipment is equipped with a large LCD temperature display screen (which is convenient for on-site personnel to observe and display data).

If you are also interested in this machine,please don't hesitate to contact us:

Overseas manager: Tom Wang

Email:tom@foreverfurnace.com

Phone/Wechat/Whatsapp:+86 13303078975
