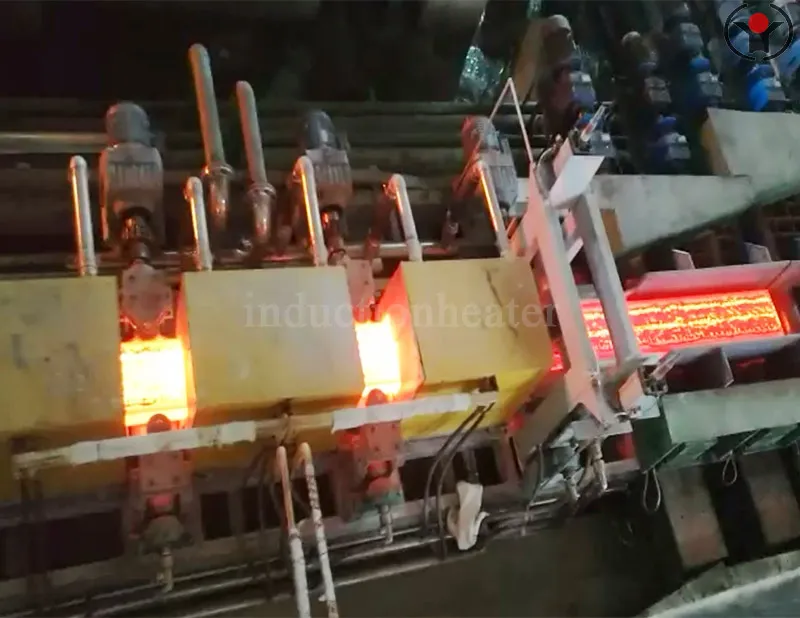

Square billet induction reheating furnace

The square billet induction reheating furnace is customized for users by Forever Electromechanical Equipment Manufacturing Co., Ltd. Forever has multiple successful cases of steel billet reheating furnaces. We have selected Hebei Forever Electromechanical as the preferred supplier for square billet induction reheating furnaces. We have many years of production experience in the field of induction heating equipment, and the induction heating equipment adopts IGBT induction heating power supply control, which is energy-saving and environmentally friendly, with low power consumption.

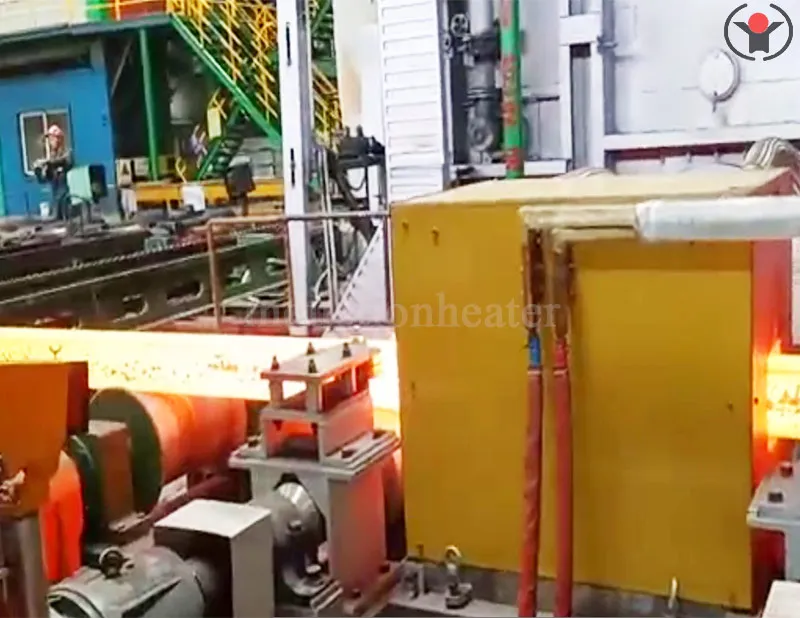

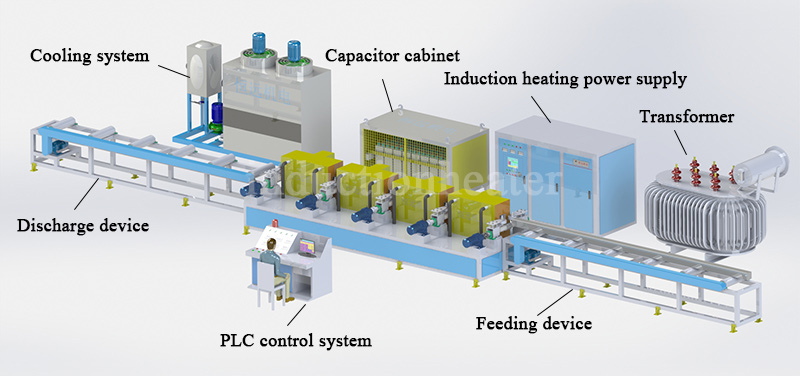

Steel Billet Induction Reheating Furnace

Process parameters of square steel billet induction heating furnace:

1. Brand: Yuantuo Electromechanical

2. Equipment Name: Induction Heating Furnace for Square Steel Billet (Non standard Product, Customized Processing)

3. Steel grades and materials: Q235q, Q3459, Q245R, A32, D32, 436, D36, etc

4. Square billet size range: (6mmx6mm) - (500mmX500mm)

5. Length range of billet: over 2 meters

Process of square billet induction reheating furnace

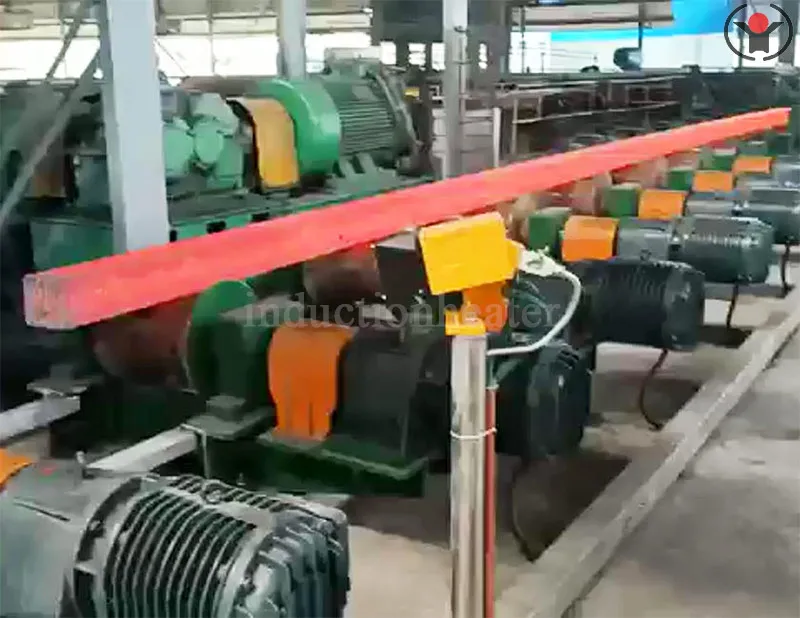

The furnace body adopts a contour design, and the copper tube is wrapped with T2 oxygen free copper. The wall thickness of the copper tube is greater than or equal to 2.5mm. The insulation material of the furnace body is made of knotted material imported from the United States, which has high strength, high temperature resistance, and longer service life. A water-cooled roller is installed between every two sections of the furnace body, and each roller is equipped with a variable frequency speed motor. The two ends of the furnace body are sealed with a whole piece of copper plate,. The furnace chassis frame is made of non-magnetic stainless steel or aluminum alloy to reduce the impact of magnetic leakage and heat generation on other components. Install a water pressure gauge and high water temperature protection for each section of the furnace body.

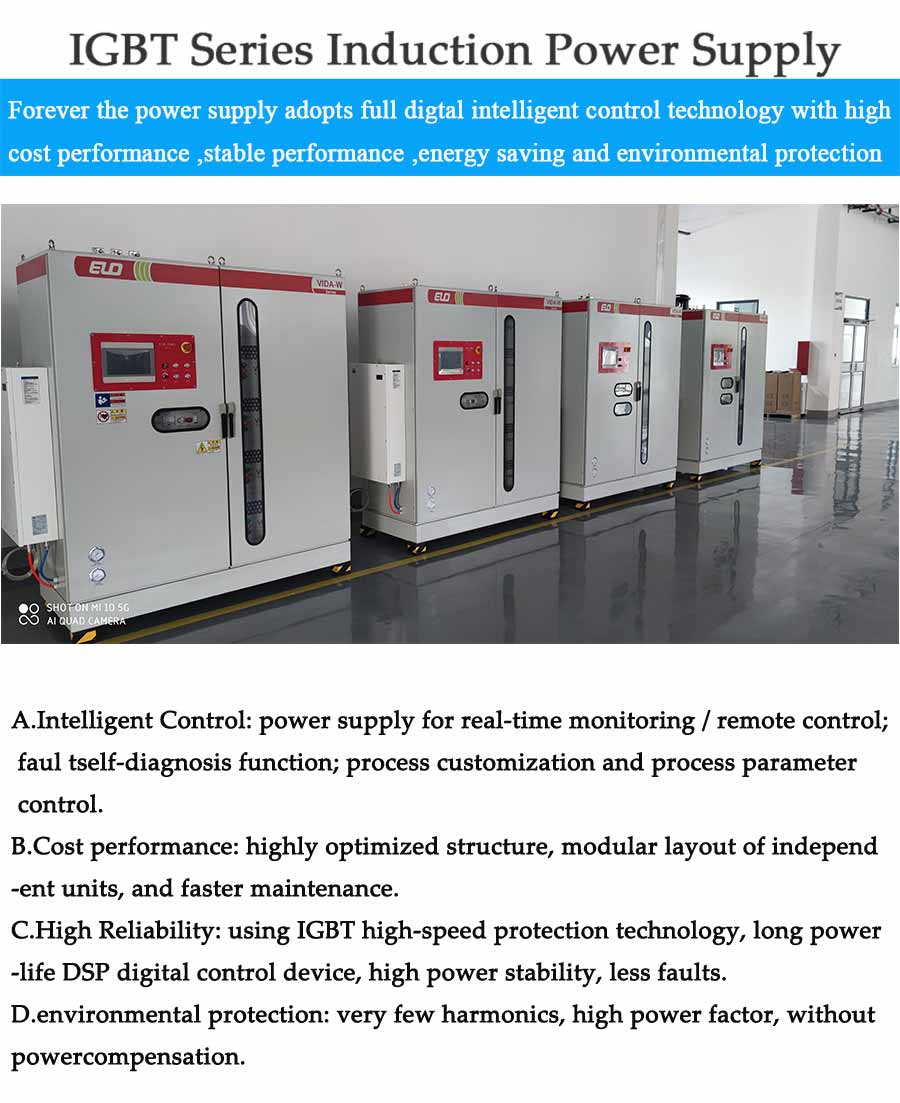

IGBT Induction Power Supply

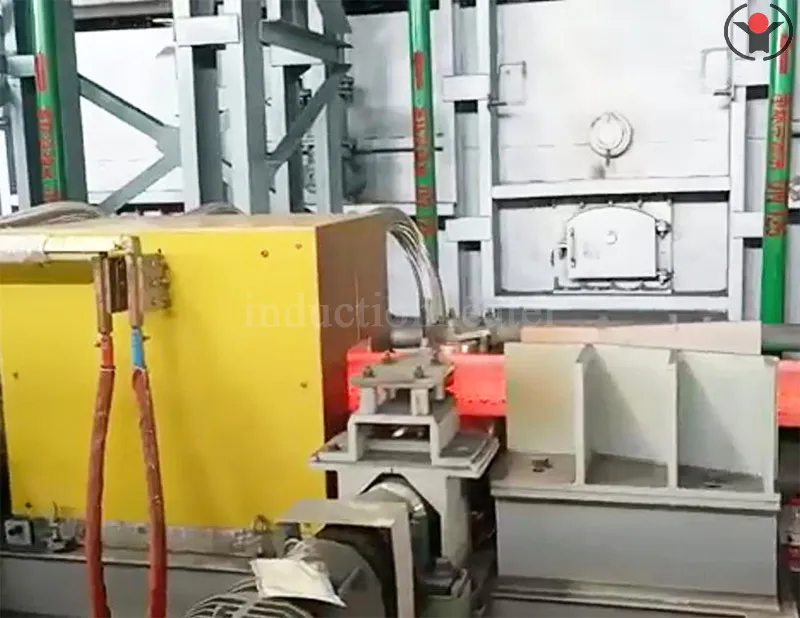

Steel Billet Induction Reheating Furnace
