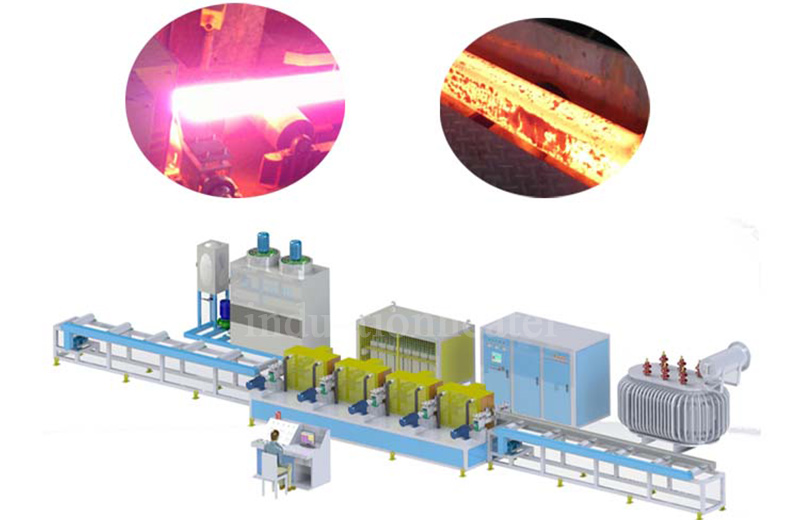

Square Steel Billet Induction Heating Furnace

Forever Electromechanical Equipment Manufacturing Co., Ltd. has designed and manufactured multiple sets of high-power square steel induction heating furnaces. The square steel induction heating furnaces have been maturely used in heat treatment production and have received high praise from users. Hebei Yuantuo Electromechanical Manufacturer provides users with free design and quotation solutions for square steel induction heating furnaces. Welcome to call our induction heating equipment service hotline for consultation.

The main configuration of square steel induction heating furnace:

1. Furnace frame (including capacitor bank, water circuit, circuit, gas circuit)

2. Induction heating system

3. Storage platform and automatic feeding device for pinch rollers

4. Quick discharge device for pinch roller

5. Infrared temperature measurement system

6. Transformer (optional according to customer's actual needs)

7. Capacitor (optional according to customer's actual needs)

8. PLC main control console

9. Cooling tower

10. Intermediate frequency induction heating power supply

★ Steel type and material: carbon steel, alloy steel;

★ Steel billet size: 120mm * 120mm * 6000mm;

★ Before entering the furnace, the steel billet has a large curvature of 1000mm and a large curvature of 4mm

★ Surface temperature of steel billet before entering the furnace: 850 ℃

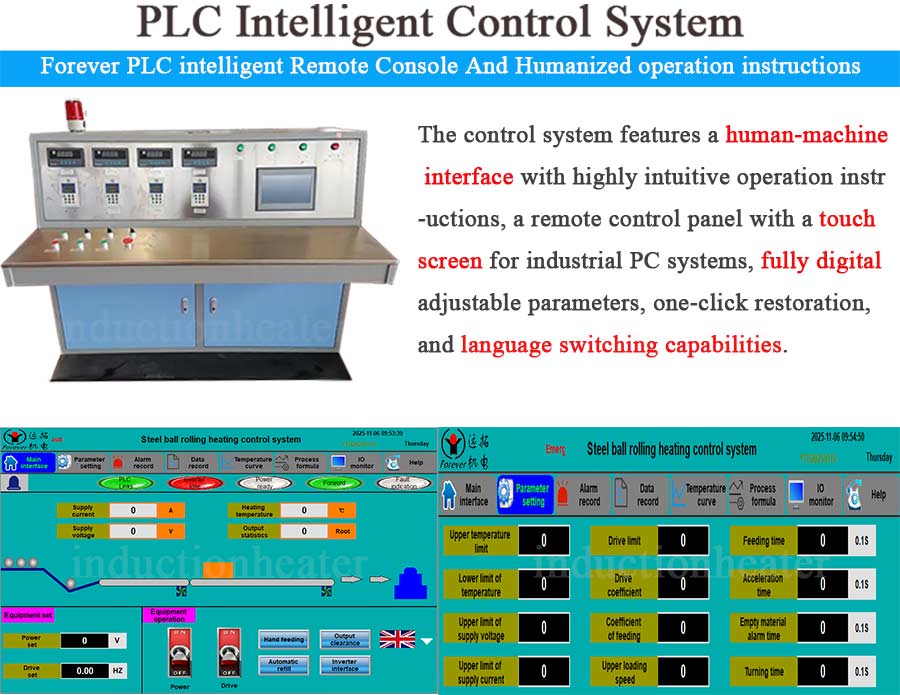

★ Control system: The entire heating process is automatically controlled by PLC, and production records such as heating quantity are displayed in a timely manner. This console is designed for standalone use. The square steel induction heating furnace features a specially customized human-machine interface, highly user-friendly operation instructions, fully digital and deep adjustable parameters, and a one click restore function. It is easy to operate.

★ Power supply requirements: Dual power transformers, 12 pulse rectifier power supply, capable of infinitely reducing harmonic pollution and improving work efficiency.

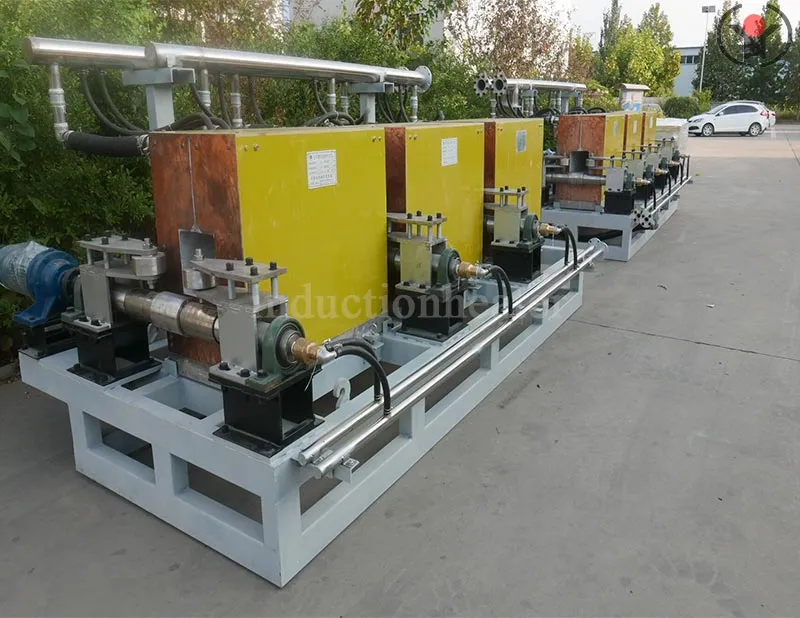

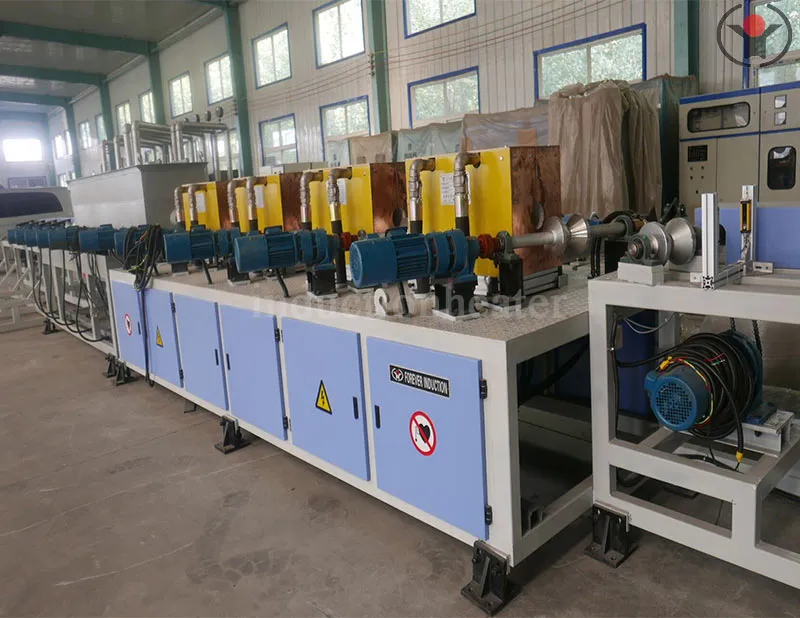

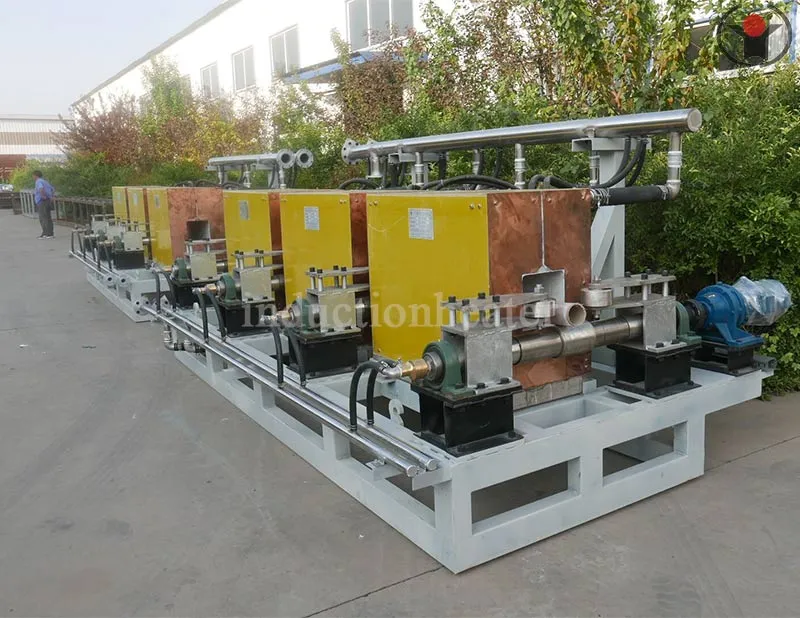

★ Feeding and guiding system: Each axis is driven by an independent motor reducer, with multiple axis drives and a single frequency converter control to synchronize the operation of multiple axes. The components are selected from well-known brands, with reliable quality and stable operation. Using 304 non-magnetic stainless steel guide wheels, the axial elasticity of the guide wheels is maintained to adapt to the allowable bending range of the steel billet.

★ The cabinet of the square steel induction heating furnace is completely sandblasted, sprayed with plastic, and baked with paint. The waterway is made of thick walled stainless steel. The steel billet heating furnace is corrosion-resistant and has a long service life. The square steel induction heating furnace is equipped with a large LCD temperature display screen (which is convenient for on-site personnel to observe and display data).
