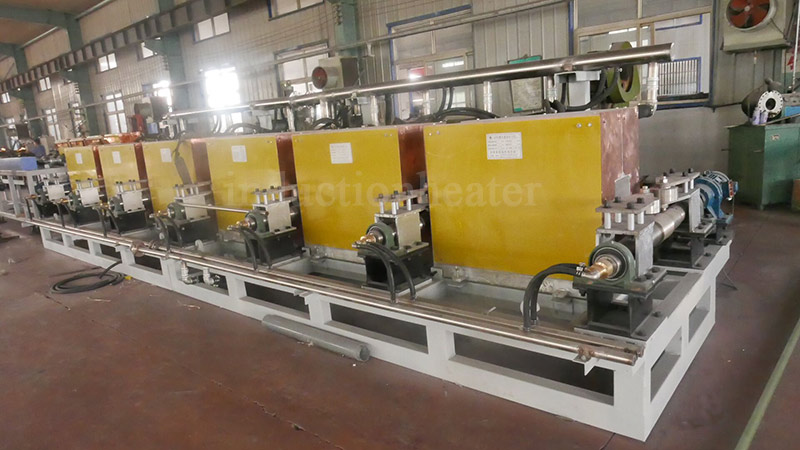

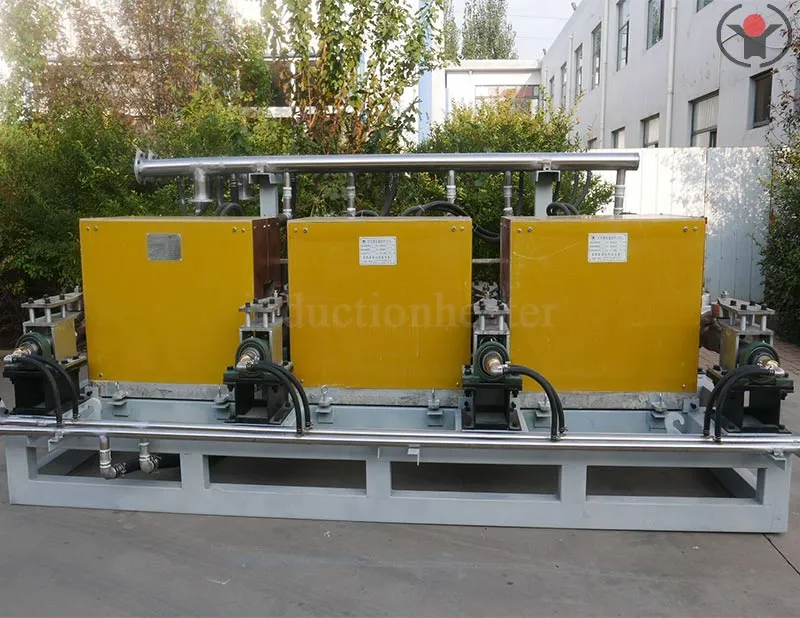

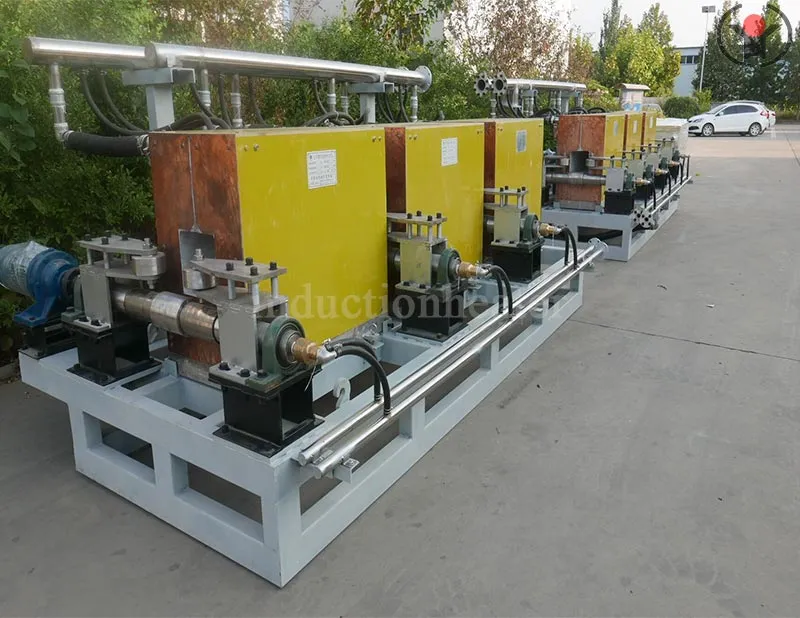

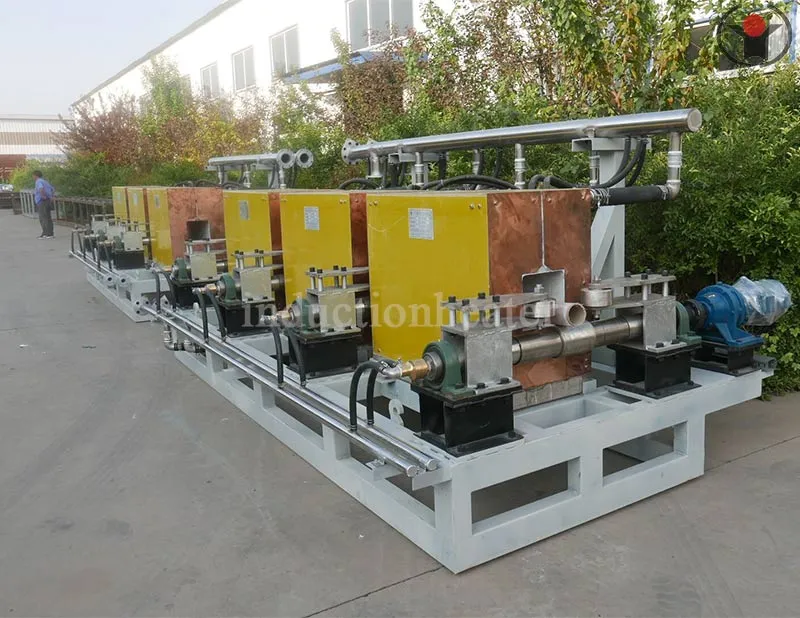

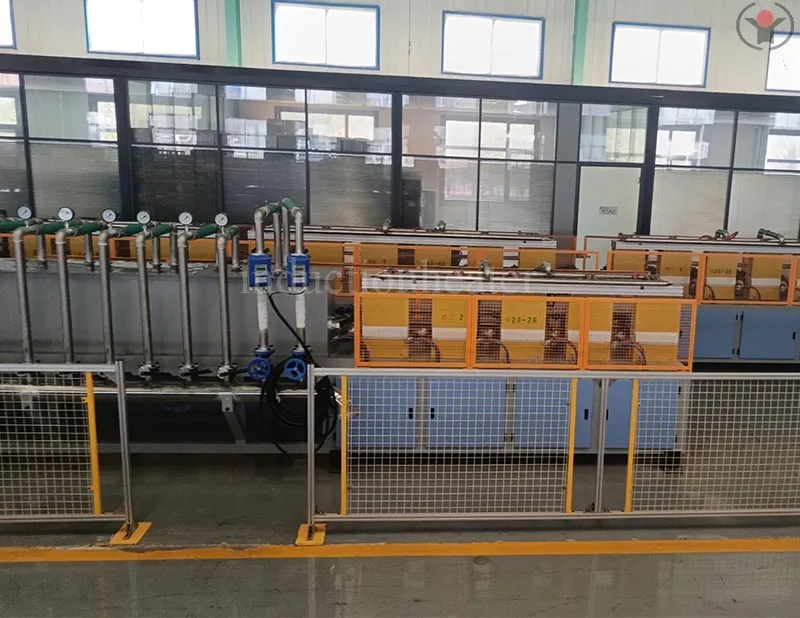

Induction heating furnace for billets

Hebei Forever Electromechanical specializes in producing billet heating furnaces and secondary heating furnaces for continuous casting billets. We provide free solutions and quotations for billet induction heating equipment. With years of rich experience in the field of induction heating equipment, our billet heating furnaces are energy-saving, environmentally friendly, and have stable performance, earning the trust of a wide range of users!

★ Steel grade material: Q345; Q235;

Steel scrap size: 120mmx120mmX6000mm;

★ Steel damage before entering the furnace, large curvature: 1000mm, large curvature: 4mm

★ Surface temperature of secondary heated steel billet before entering the furnace: ≥ 850 ℃

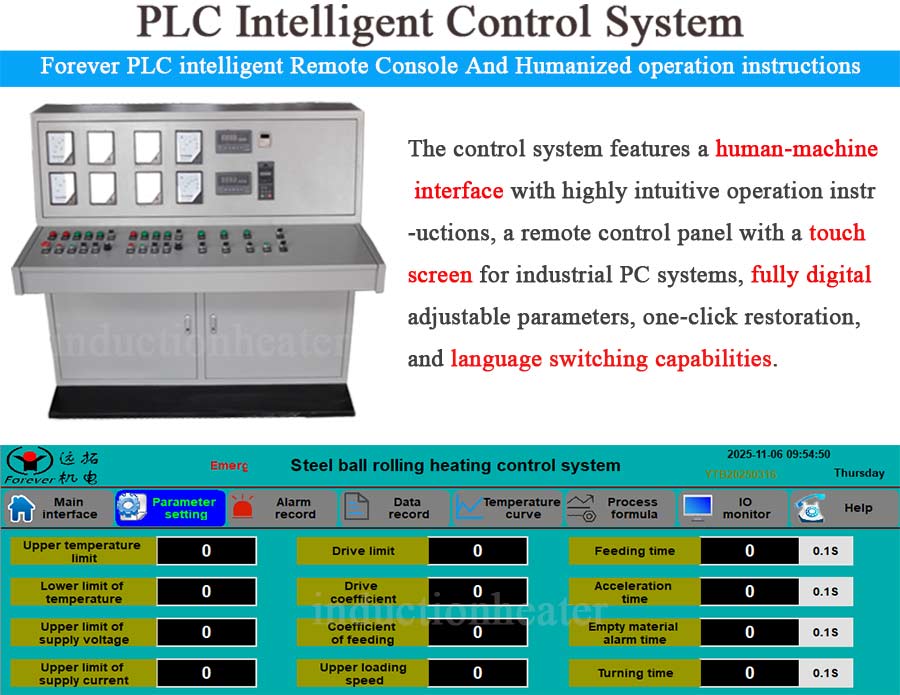

★ Control system: The entire heating process is automatically controlled by PLC, and production records such as heating quantity are displayed in a timely manner. This console is designed for standalone use, with a specially customized human-machine interface, highly user-friendly operation instructions, fully digital and deep adjustable parameters, and a one click restore function. It is easy to operate.

★ Power supply requirements: Dual power transformers, medium frequency power supply made into 12 pulse rectification, can infinitely reduce harmonic pollution and improve work efficiency.

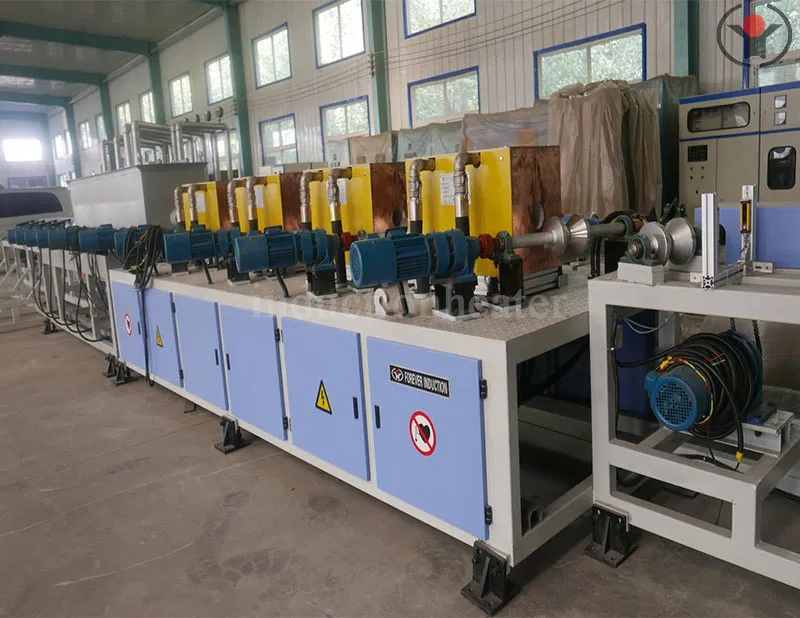

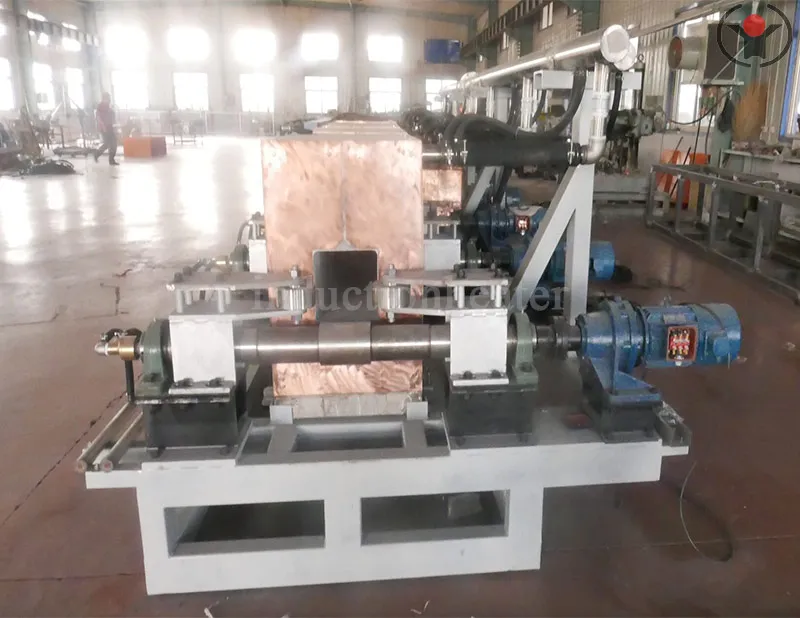

★ Feeding and guiding system: Each axis is driven by an independent motor reducer, with multiple axis drives and a single frequency converter control to synchronize the operation of multiple axes. The components are selected from well-known brands, with reliable quality and stable operation. Using 304 non-magnetic stainless steel guide wheels, the axial elasticity of the guide wheels is maintained to adapt to the allowable bending range of the steel billet.

The cabinet is entirely sandblasted, sprayed with plastic, and baked with paint. The waterway is made of thick walled stainless steel, and the equipment is corrosion-resistant with a long service life. The equipment is equipped with a large LCD temperature display screen (which is convenient for on-site personnel to observe and display data).
