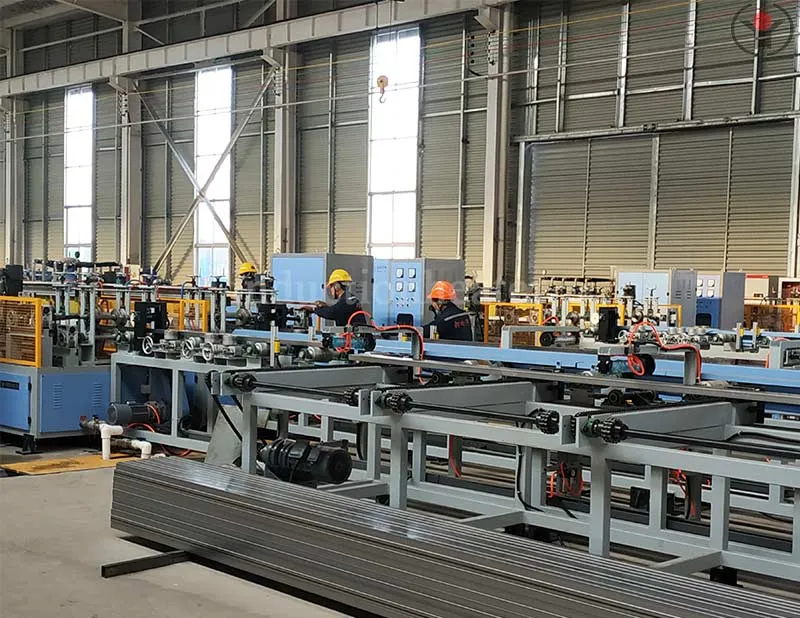

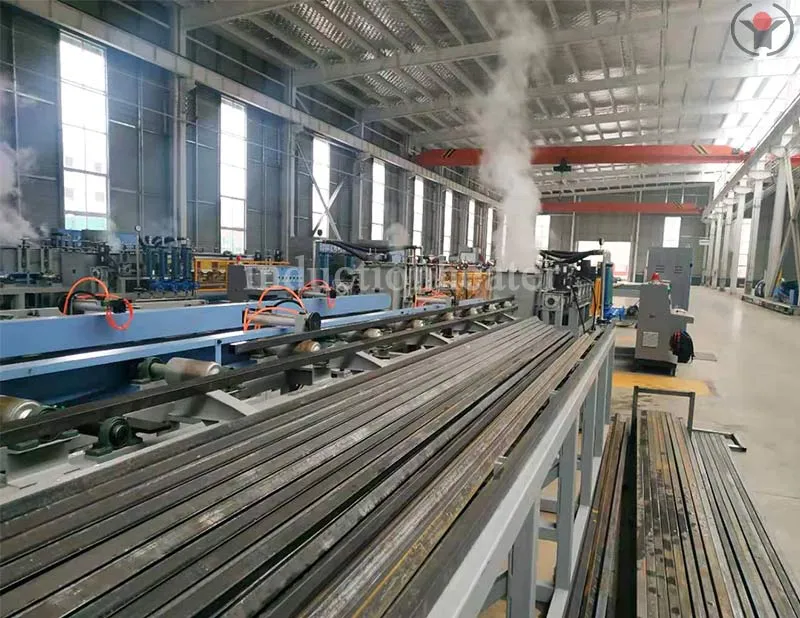

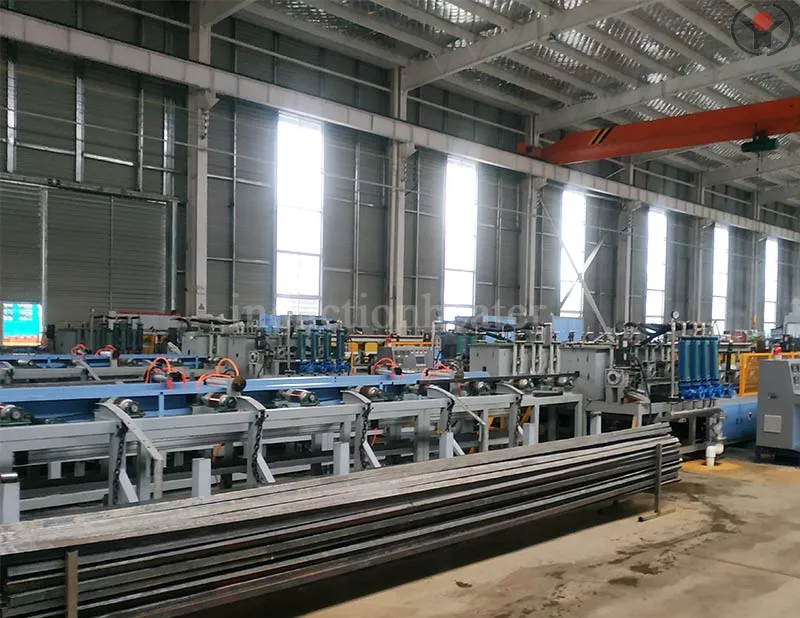

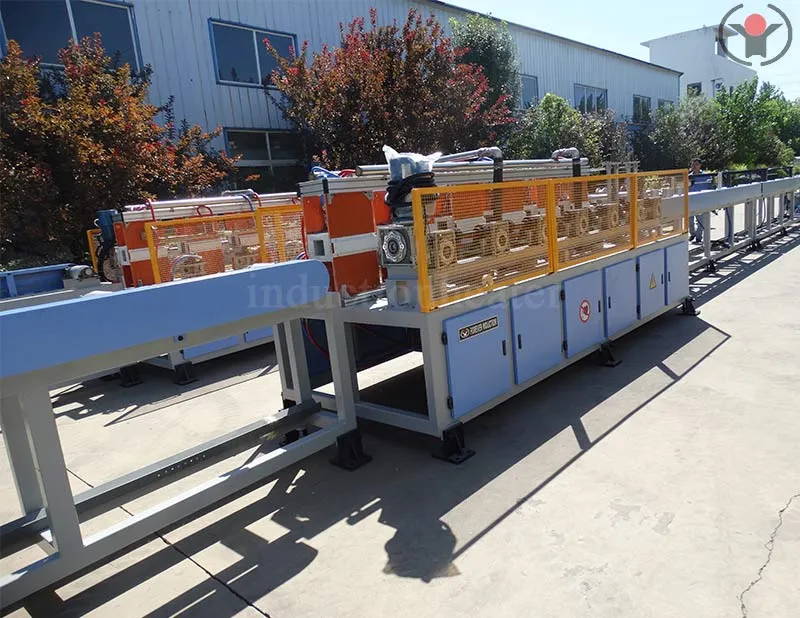

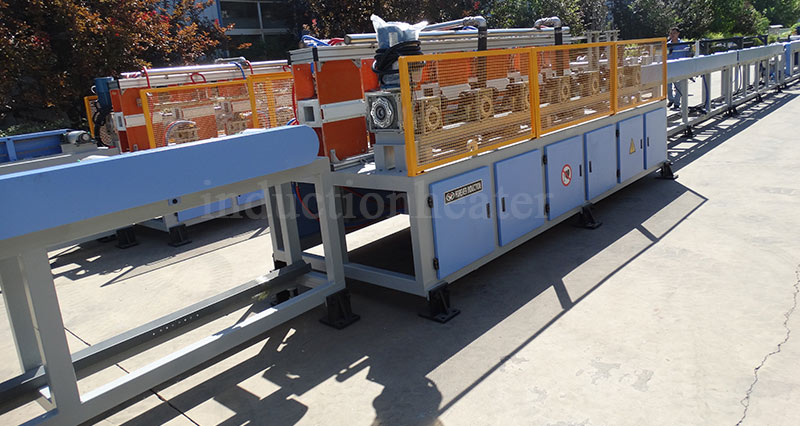

Square steel pipe hardening and tempering furnace

Main application: square steel pipe hardening and tempering furnace Suitable for quenching and tempering heat treatment of thin-walled rectangular tubes, square tubes, trailer collision beam tubes, etc.

Power supply system: KGPS200~800KW/4~8KHZ or IGBT 200~800KW/4~15KHZ: hourly output of 0.6-2.5 tons.

Scope of application: Thickness 1.0mm-5.0mm, width 20mm-500mm, height 20mm-500mm.

Conveyor roller conveyor: The roller conveyor between the furnace bodies is made of 304 non-magnetic stainless steel and water-cooled.

Feeding system: Each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of speed difference output, segmented control of operating speed formula management function: A powerful formula management system that automatically calls relevant parameters after inputting the steel grade, outer diameter, and wall thickness parameters to be produced, eliminating the need to manually record, view, and input the required parameter values for various workpieces.

·Multi channel closed-loop function: A high-level temperature, voltage and other multi-channel closed-loop system has been designed to address the instability of power supply systems in underdeveloped areas and countries.

● Good straightness

The Forever square steel pipe hardening and tempering heating furnace is adopted, and the straightening function is designed during the heat treatment process. The square tube can achieve considerable straightness after heat treatment quenching and tempering.

High degree of intelligence, safe and easy to operate

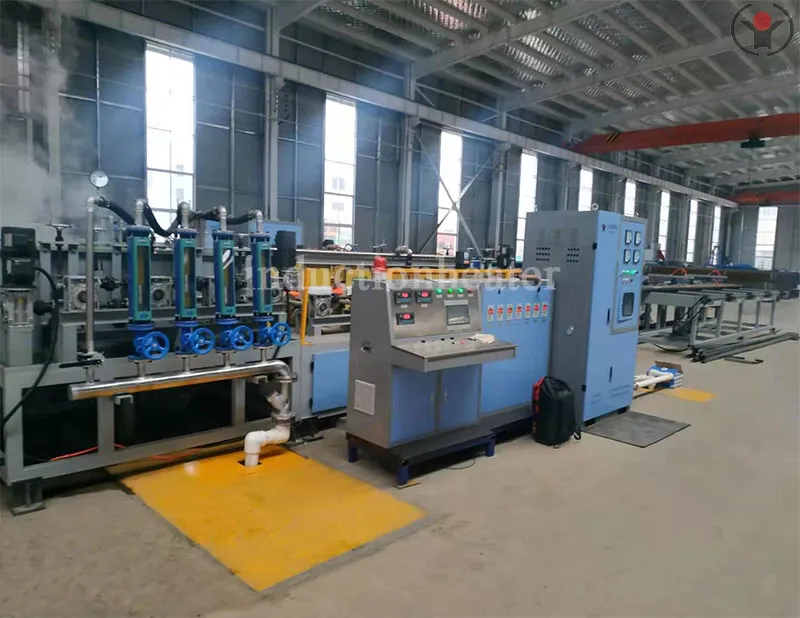

The square steel pipe heat treatment production line adopts PLC control system+touch screen display, with high intelligence, one click control, more installation, and more convenience.

● Strong reliability for continuous operation

Forever IGBT variable frequency power supply is used for square tube induction heating, heat treatment, and tempering production lines. It has been running continuously for more than a year without stopping for 24 hours, and has undergone multiple non-stop load changes (switching between heavy and light loads repeatedly) without any faults.

● Energy saving and environmental protection in production

The production process of square tube induction heating and heat treatment tempering line does not produce harmful substances, effectively improving the working environment of workers. By using induction frequency to quench the square tube, the yield rate is high and it is more energy-efficient.

1. JB/T4086-85 "Technical Requirements for Electric Control Equipment for Medium Frequency Induction Heating"

2. GB/T10067.3-2005 "Basic Technical Requirements for Electric Heating Equipment - Induction Heating Equipment"

3. GB/T10063.3-88 "Test Methods for Electric Heating Equipment"

4. GB/T5959.3-88 "Safety of Electric Heating Equipment"

1. The petroleum steel bar tempering furnace ensures uniform heating of workpieces and precise temperature control.

2. The petroleum cracking tube tempering production line offers fast heating, no oxidation or decarburization, and high heating efficiency.

3. Yuantuo Electromechanical's medium-frequency induction heating equipment has low energy consumption and high thermal efficiency.

4. The petroleum seamless steel pipe tempering production line offers simple and flexible operation and a high degree of automation.

5. The petroleum cracking tube tempering production line utilizes a PLC control program with a human-machine interface and is equipped with a one-button restore function.

6. The entire petroleum cracking tube tempering production line uses an infrared thermometer for temperature testing, ensuring more uniform heating.
