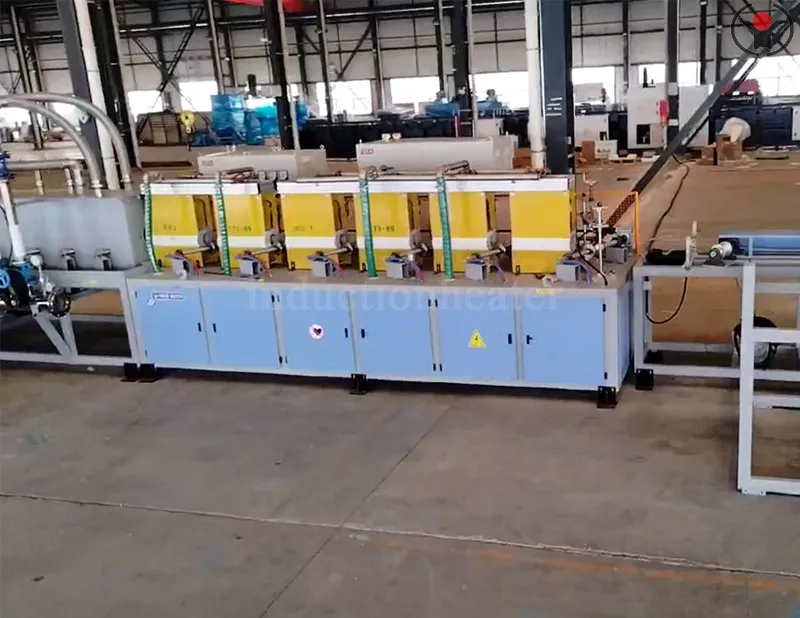

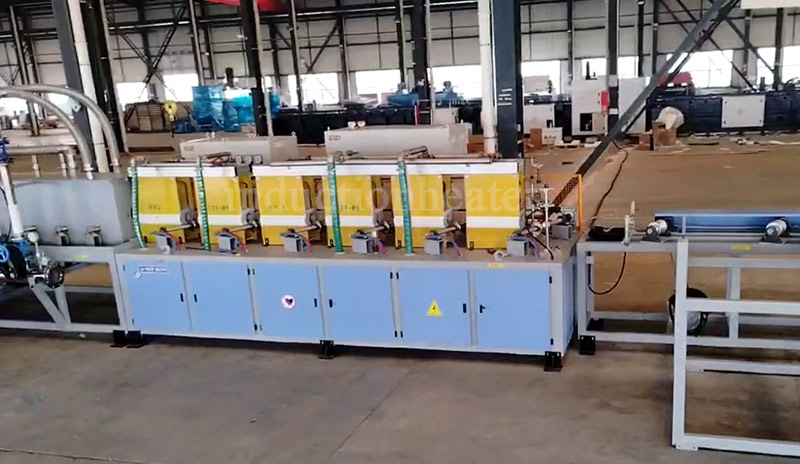

Steel Pipe Quenching and Tempering Induction Production Line

The steel pipe quenching and tempering induction production line determines the frequency and required power of the power supply based on the external dimensions of the workpiece and the production batch. Forever Electromechanical can customize a steel pipe quenching and tempering induction production line according to your actual needs. Forever Electromechanical has many years of production experience in induction heating equipment production, with stable equipment performance, efficient production, energy conservation and environmental protection.

Application of steel pipe quenching and tempering induction production line:

300-800Hz power supply can be used for heating according to the geometric shape and heating process requirements of workpieces made of different materials. Induction heating equipment is mainly used for heat transfer, reheating, blue quenching cutting, online heating, local heating, heating of metal materials before forging (such as precision forging of gears, half shaft connecting rods, bearings, etc.), extrusion, hot rolling, shearing, as well as overall quenching and annealing of metal materials for bar, round steel, square steel, and steel plates.

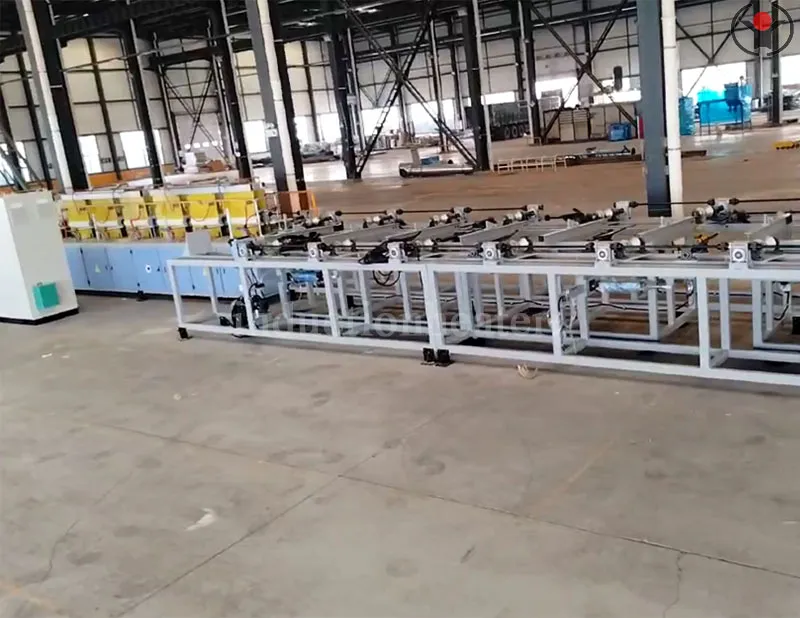

1. Automatic feeding system: Workers place workpieces on shelves, and then the automatic feeding system transfers square tubes to parallel rollers.

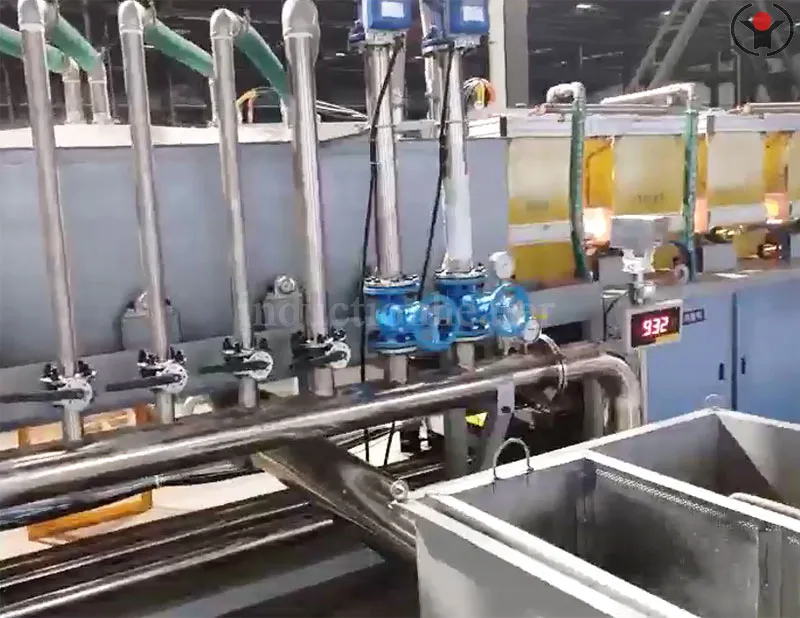

2. Induction hardening: Due to the stable operating speed of the transmission system in the steel pipe quenching, tempering and tempering production line, the transmission system will transport the workpiece in the induction heater. The far-infrared thermometer will automatically monitor and control the temperature during the temperature measurement process. When the temperature reaches the target quenching temperature, the cooling device will cool down. Then, the transmission system of the steel pipe quenching and tempering production line will send the workpiece to the discharge system, waiting for the next heat treatment.

3. Tempering system: The hardened workpiece will be transferred to an induction heater, and the induction tempering heat treatment equipment will be reheated under the control of a far-infrared thermometer. Then the workpiece will be moved to the furnace to store heat. After maintaining the temperature for a certain period of time, the straightening will be sent to the parallel rollers.

4. Automatic discharge system: Transport steel pipes to the discharge system for natural cooling.

5. Inspection and storage.
