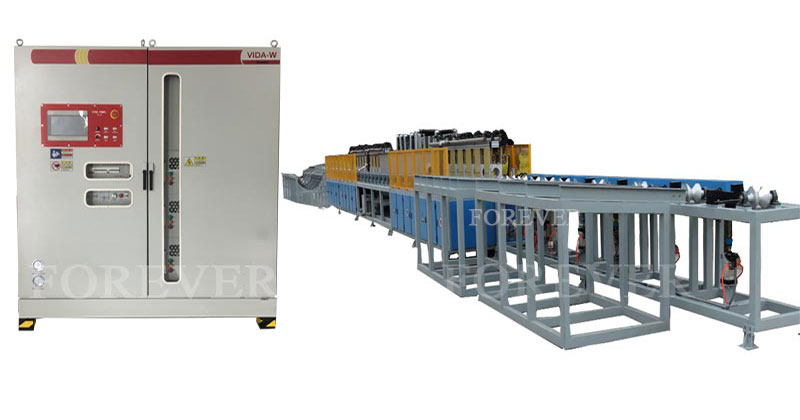

long bar induction quenching & tempering production line

The integrated equipment for long bar quenching, tempering and tempering is a non-standard customized production line for overall heat treatment of steel bars with a diameter of 10-150mm. The process flow covers three stages: heating, quenching, and tempering, adopting an integrated design to reduce material turnover and improve efficiency and stability.

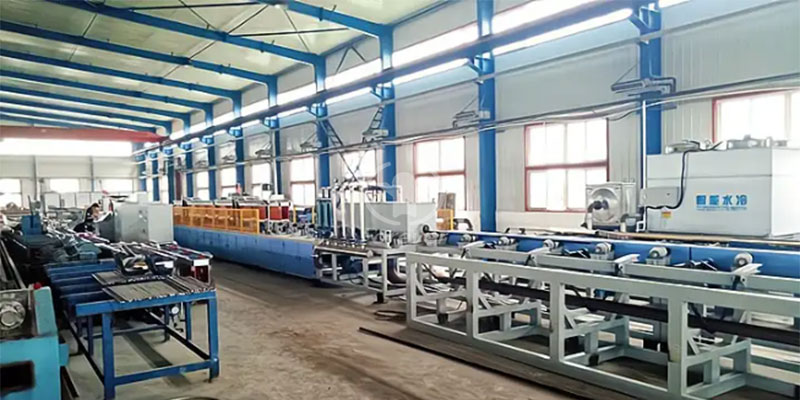

                                                                           long bar induction heat treatment production line

 Core configuration analysis power system: commonly used 1600-5000kW intermediate frequency series power supply, high power factor, suitable for large-scale continuous production. long bar induction quenching and tempering machine: multi zone design (3-5 zones) ensures uniform heating, excellent heat transfer effect, and supports quick change structure. Cooling system: annular spray, segmented control of water flow and pressure (0.3-0.5MPa), adjustable hardening layer depth of 2-6mm. Tempering system: using induction tempering, fast heating rate, temperature control range of 500-650 ℃, effectively eliminating stress and improving toughness. Conveyor system: Independently driven roller conveyor, designed with an inclination angle of 18-21 °, allowing steel bars to rotate and heat up during transportation, avoiding local overheating. Control system: PLC+infrared temperature measurement+flow monitoring, realizing closed-loop control of heating, cooling, and tempering throughout the process, and can establish a process database.

Process description: Induction heating: Quickly heat the steel rod to the critical temperature (850-920 ℃); Quenching and cooling: forming a martensitic layer through segmented spraying to enhance hardness; Tempering treatment: Heat to 500-650 ℃ to relieve stress, making the steel rod have both hardness and toughness; Automated control: The system adjusts power and flow in real-time to ensure stable mass production. Forever Electromechanical has adopted integrated quenching and tempering solutions in projects such as Ansteel, Shigang, and Japan's Donghe, ensuring process continuity and helping customers achieve the dual goals of high efficiency and stable quality.

If you are also interested in this machine,please don't hesitate to contact us:
