Seamless Steel Pipe Continuous Annealing Furnace

Hebei Yuantuo Electromechanical Induction Heating Equipment Manufacturer independently researches, designs, and produces seamless steel pipe continuous annealing furnaces, integrating multiple patents. The seamless steel pipe annealing production line adopts high-purity, high-density ceramic fiber board, high-quality heating elements, high-precision temperature measuring elements, stable performance, and quality assurance. When purchasing seamless steel pipe induction heating equipment, choose Yuantuo Electromechanical.

Feature:

Product Name: Seamless Steel Tube Continuous Annealing Furnace

Workpiece material: carbon steel, alloy steel, etc

Workpiece diameter range: 10mm to 500mm in diameter

Workpiece length range: greater than 2m

Intelligent intermediate frequency power supply series: KGPS160KW-8000kW

Power consumption: calculated based on the customer's workpiece material and diameter, heating temperature, operating speed, etc.

Seamless steel pipe execution standard:

Common standards:

① GB/T 2102-2006 Acceptance, Packaging, Marking and Quality Certificate of Steel Pipes.

② GB/T 17395-2008 Seamless steel pipes - Dimensions, shape, weight and allowable deviations.

③ GB 5310-2008 Seamless steel pipes for high-pressure boilers.

④ GB 9948-2013 Seamless steel pipes for petroleum cracking.

⑤ GB 6479-2013 Seamless steel pipes for high-pressure fertilizer equipment.

⑥ GB 18248-2008 Seamless steel pipes for gas cylinders

The seamless steel pipe continuous annealing furnace adopts MCSV7.6F medium frequency power control system, which mainly consists of three parts: main control board, rectifier trigger board, and inverter trigger board. The core components of the annealing heat treatment furnace adopt high-performance, high-density, large-scale dedicated DSP+FPGA composite integrated circuits, which enable all circuits to be digitized. All parameters can be digitally corrected on touch screens or remote devices, and have the characteristics of high reliability, strong anti-interference ability, and fast response speed. Easy to operate, high product quality.

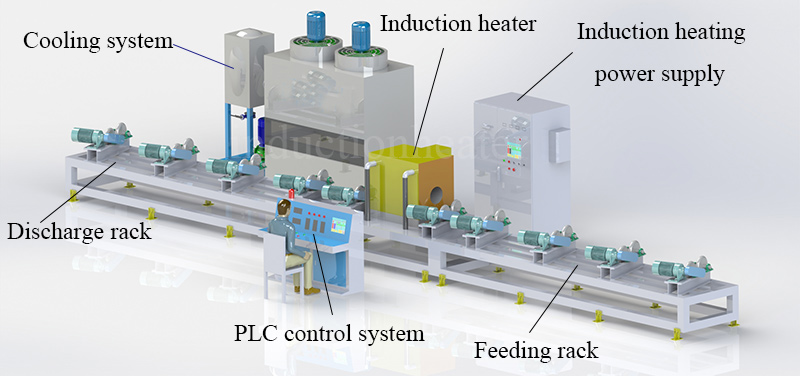

The seamless steel pipe continuous annealing furnace adopts PLC control system, and can choose touch screen or industrial computer control system according to customer needs. The seamless steel tube induction heating equipment adopts a Siemens PLC independent control panel, which can provide full process control of the entire mechanical action and annealing, with simple operation and uniform heating. Professional human-machine interface and powerful formula management system. After selecting the parameters of the workpiece and plate to be produced, the relevant parameters are automatically called, without the need to manually record, query, or input the required parameter values for various workpieces.

Pre sales service:

Provide detailed and professional answers to customer inquiries through telephone, internet, and other means, offering professional technical knowledge, advice, and business consulting services. Based on customer requirements, recommend high-quality induction heating equipment models and production line configurations.

In sales service:

Yuantuo Electromechanical always maintains communication with customers. After the seamless steel tube induction heating equipment is completed, our professional induction heating equipment engineers will supervise it. It can only be shipped after the equipment is accepted.

After-sales service

Dispatch skilled after-sales technicians to the customer's seamless steel pipe annealing equipment site for installation and commissioning, provide technical training on operation, maintenance, repair, and maintenance to the customer's on-site operators, and provide technical guidance to ensure that the operators fully master the technology. Yuantuo Electromechanical Seamless Steel Pipe Continuous Annealing Furnace provides free maintenance services during the 12-month warranty period. Provide long-term maintenance services.

If you are also interested in this machine,please don't hesitate to contact us:

Overseas manager: Tom Wang

Email:tom@foreverfurnace.com

Phone/Wechat/Whatsapp:+86 13303078975
