Sucker Rod Induction Hardening Furnace

Hebei Forever Electromechanical Equipment Manufacturing Co., Ltd. is a professional supplier of automated sucker rod hardening equipment that integrates the research and development, production, sales, and after-sales of induction heating equipment. Forever Electromechanical has high-tech equipment and technical talents, and can customize sucker rod hardening equipment according to your process needs.

Feature:

Brand: Forever Electromechanical

Non standard professional customization

Heating steel material: oilfield sucker rod

Rod size: (16-32) * (7520-9100) mm

Quenching heating temperature: 850 ℃

Depth of hardened layer: 1.1-2.3mm (or the hardness layer reaches 5% -13% of the rod diameter). After quenching, the surface hardness is 42,

Production efficiency requirement: Processing 140 sucker rods in 8 hours

Control system: closed-loop temperature control

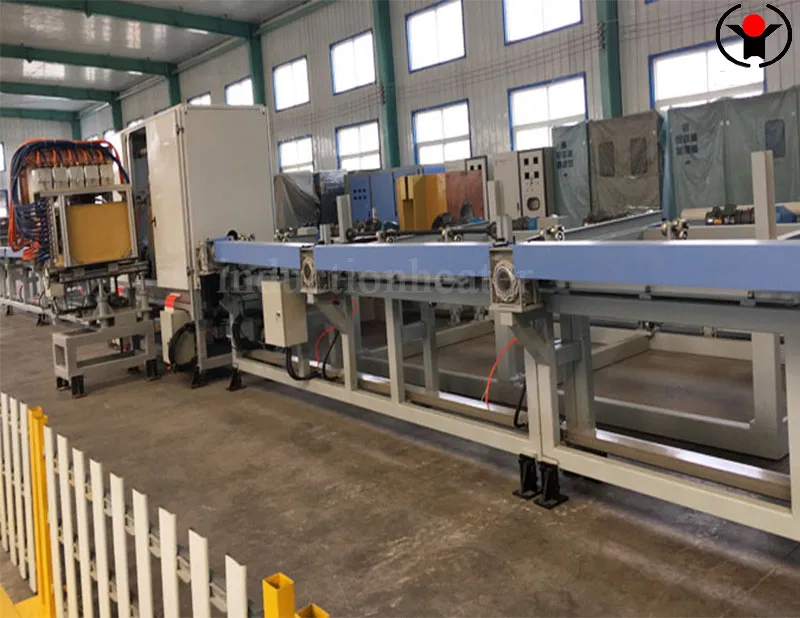

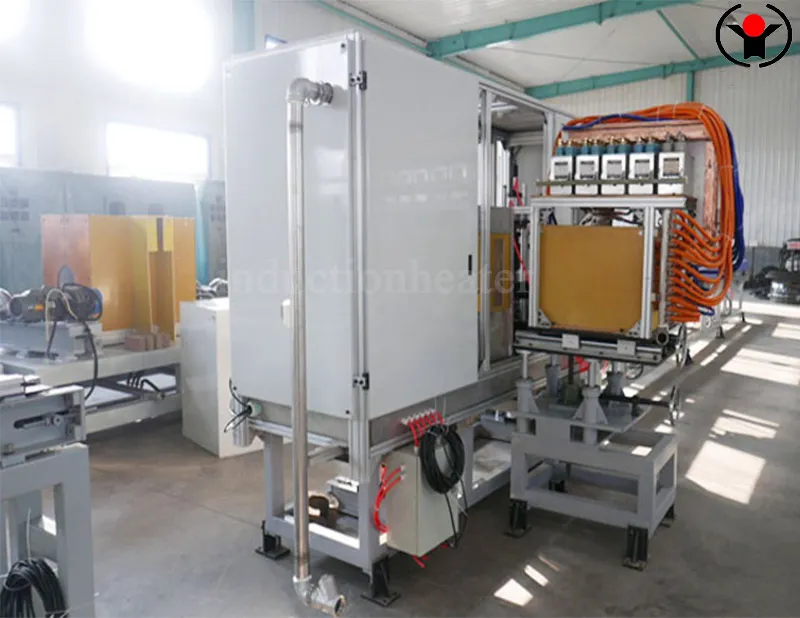

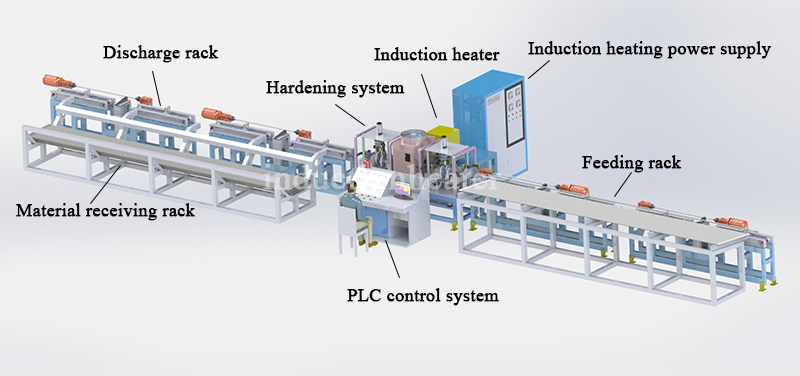

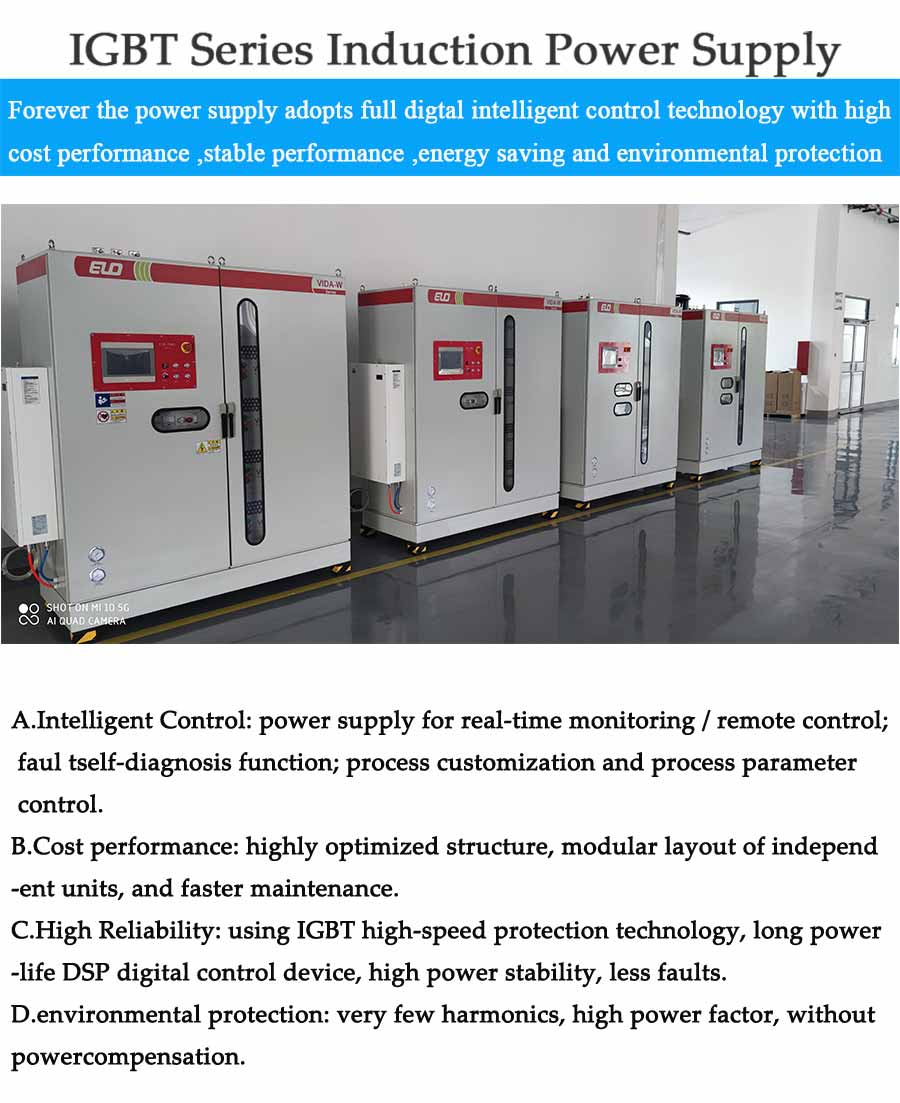

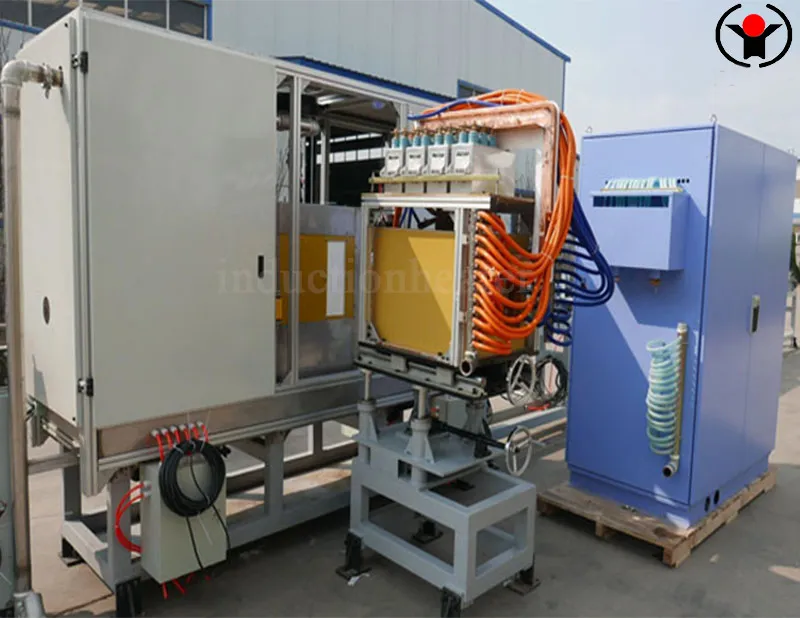

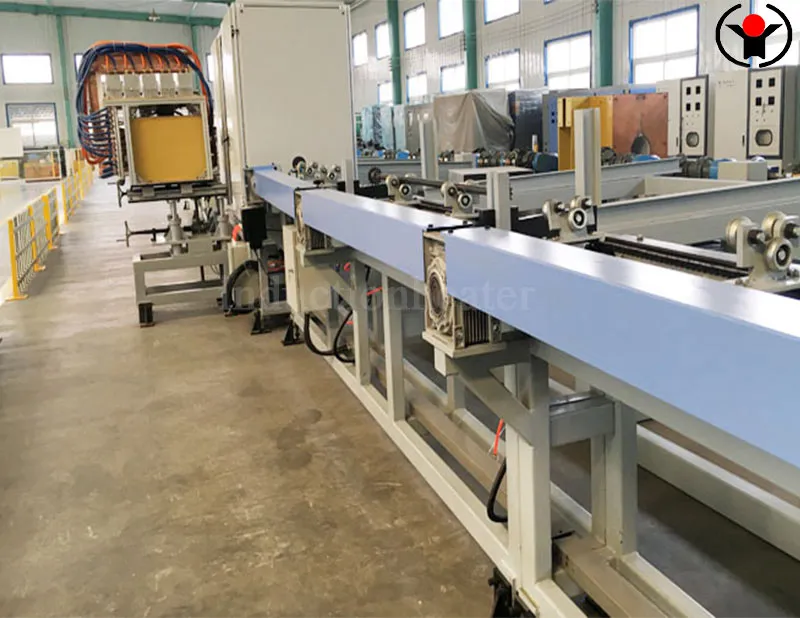

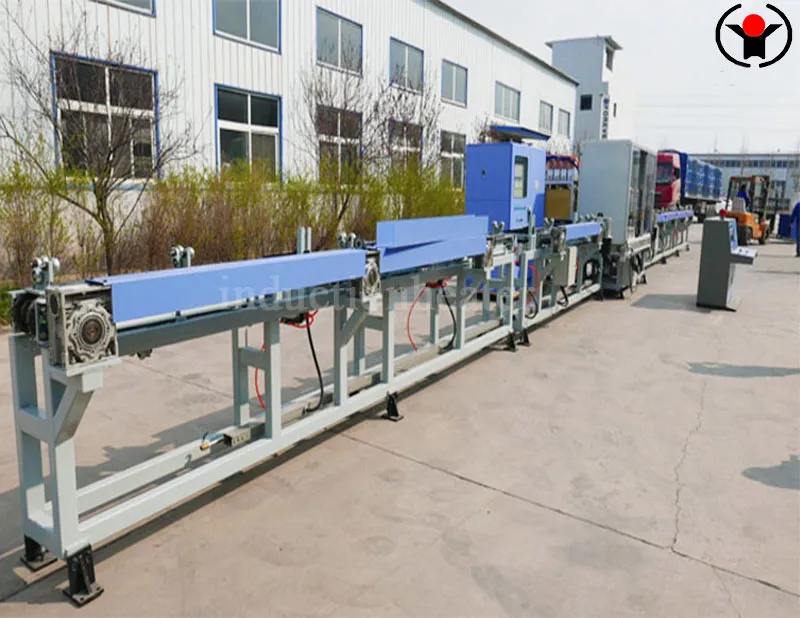

The complete set of equipment for the automated sucker rod quenching furnace consists of IGBT power supply, capacitor cabinet, inductor, fully automatic feeding rack, plate heat exchanger, unloading rack, and control cabinet. The IGBT power supply adopts a split structure design, and the power cabinet is a GGD standardized cabinet. The PLC controlled pumping rod quenching equipment is professionally designed for the structure of capacitor cabinets and inductors, improving heating efficiency and quenching speed. Reasonably control the distance between the sensor and the quenching ring.

The induction hardening equipment for sucker rods can automatically control the operating speed of the transmission mechanism based on the intermediate frequency induction heating process parameters set by the user. When there is no workpiece in the sensor, the automatic control system automatically reduces the output power of the IGBT power supply; The workpiece enters the sensor, and the automatic control system automatically increases the output power of the intermediate frequency power supply.

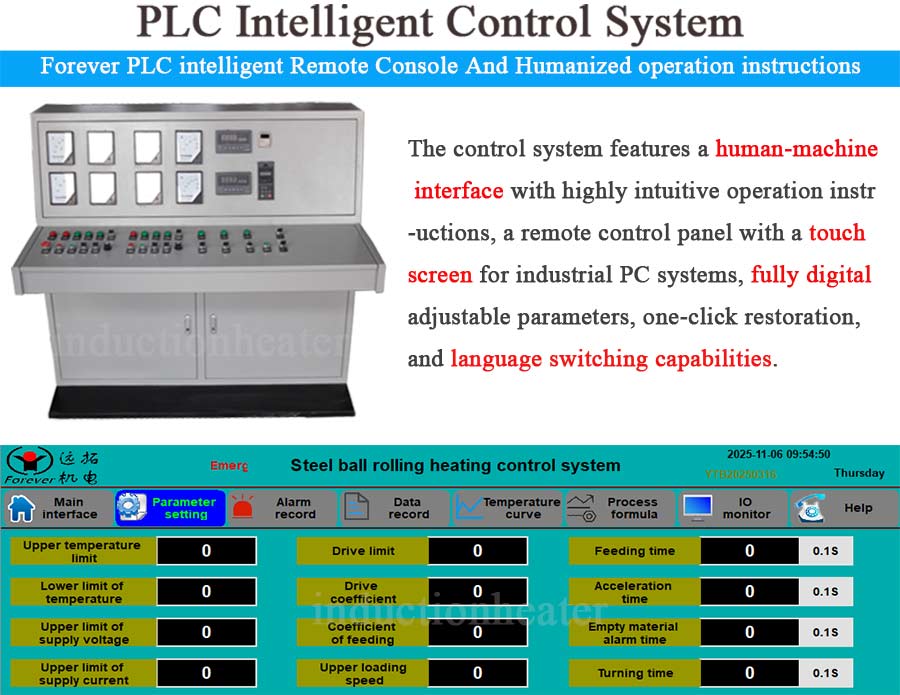

The automated pumping rod quenching equipment adopts a newly designed spray quenching water ring, which eliminates the phenomenon of original water spray blocking holes and greatly improves the stability of the workpiece during quenching. During the transmission process of the workpiece, it moves forward and rotates simultaneously to ensure the uniformity of heating and quenching cooling of the workpiece. The remote control cabinet can be customized and produced according to customer requirements, using PLC+touch screen control method. Realize functions such as automatic material flipping, variable frequency speed regulation for automatic feeding, automatic heating, automatic unloading, temperature detection, automatic adjustment of power supply and parameter storage.
