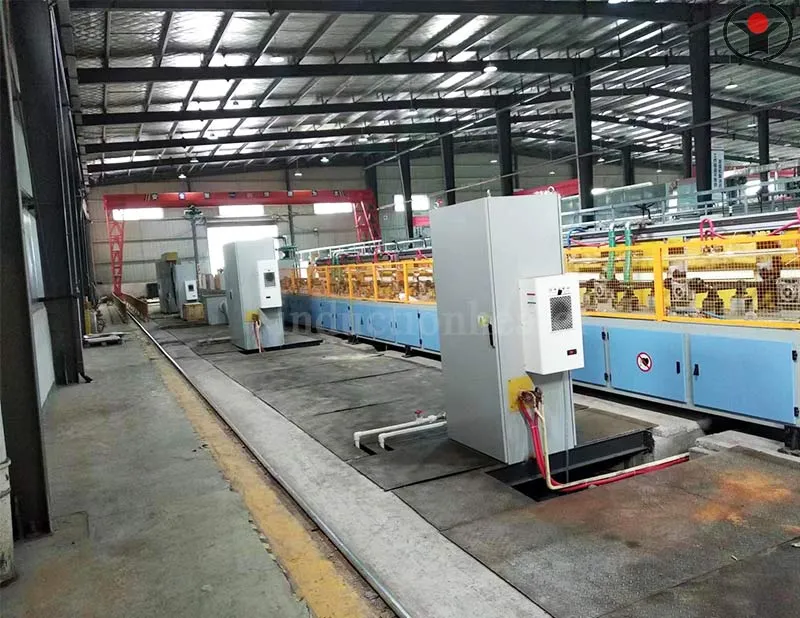

Bar Material Hardening and Tempering Equipment

Forever Electromechanical specializes in providing bar material quenching and tempering furnaces, with a complete induction heating equipment system solution. The core and key areas of our professional technology are our intelligent power supply and sensors, specially tailored for customers' job tasks.

Bar Material Hardening and Tempering Equipment

Process parameters of bar quenching and tempering furnace:

1. Intelligent quenching medium frequency power supply IGBT350KW/2000-3000Hz

2. Round steel material: S45C, SCM440, 42CRMO4, 16MNCR5, 40CR4

3. Workpiece parameters: diameter of 25mm or more, length of 6000mm

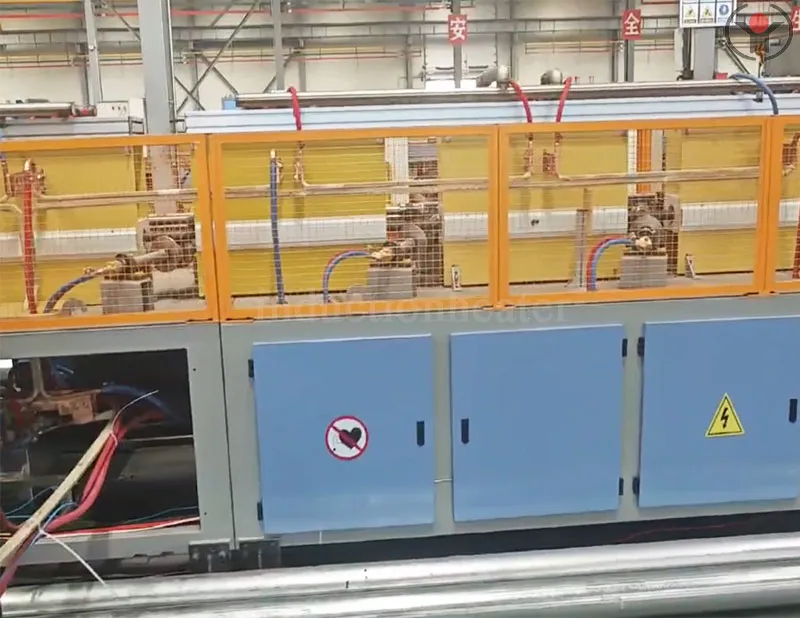

Process principle of bar material hardening and tempering furnace

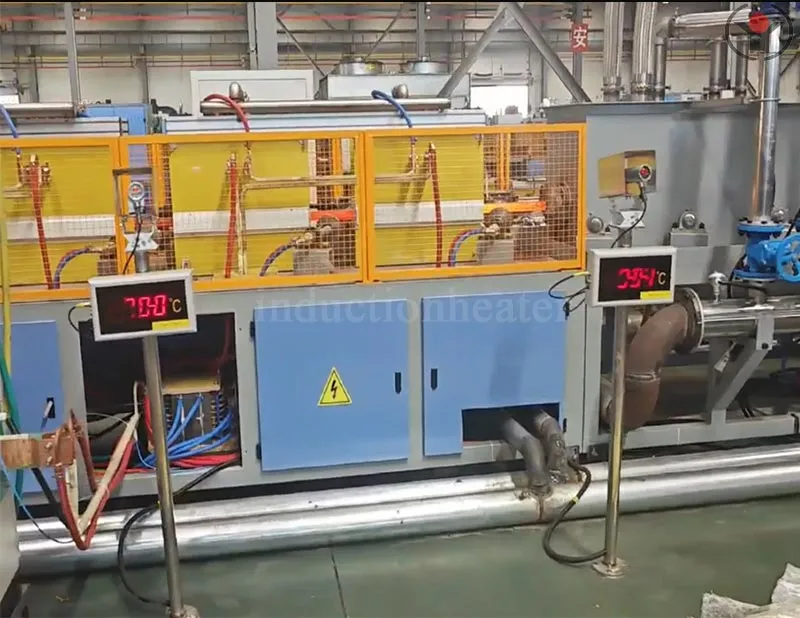

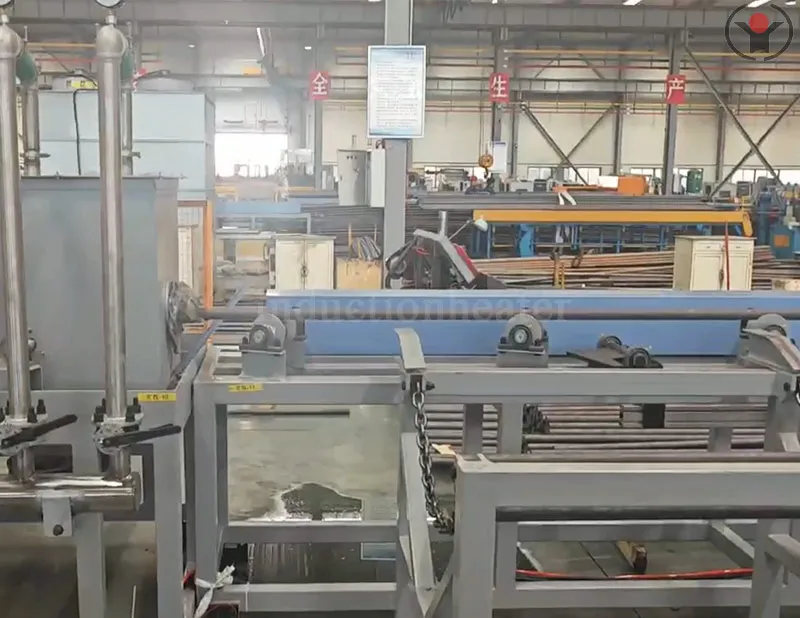

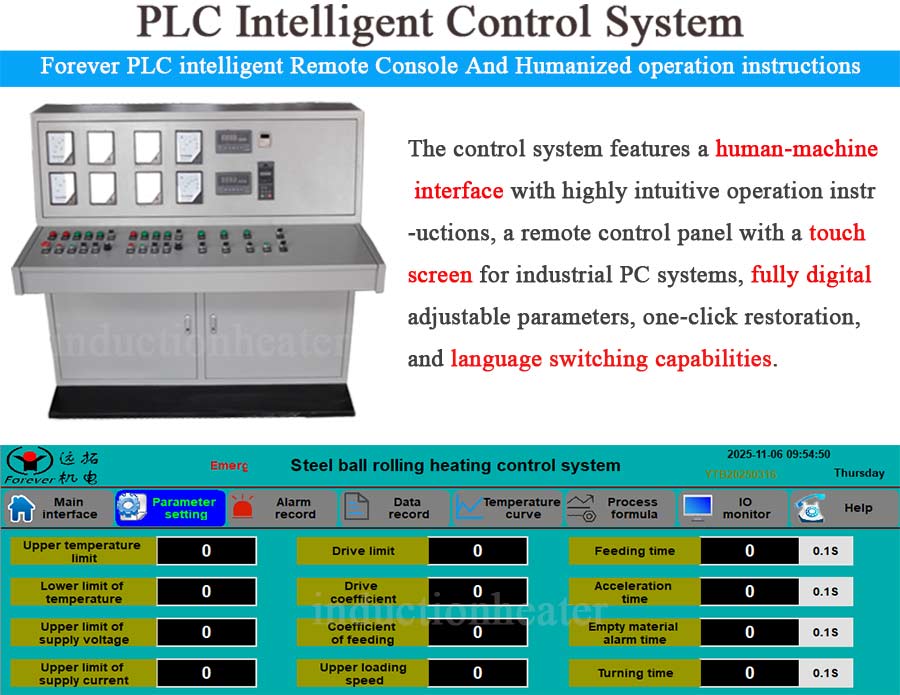

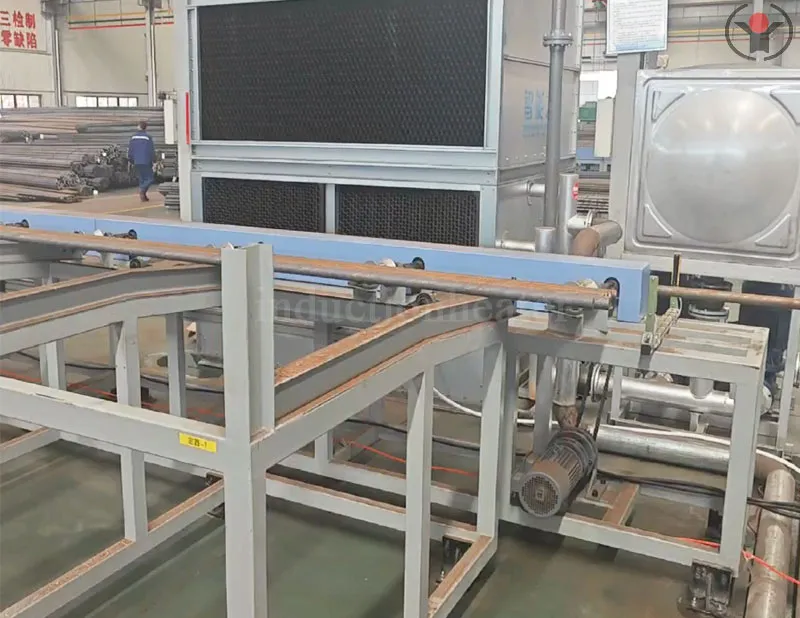

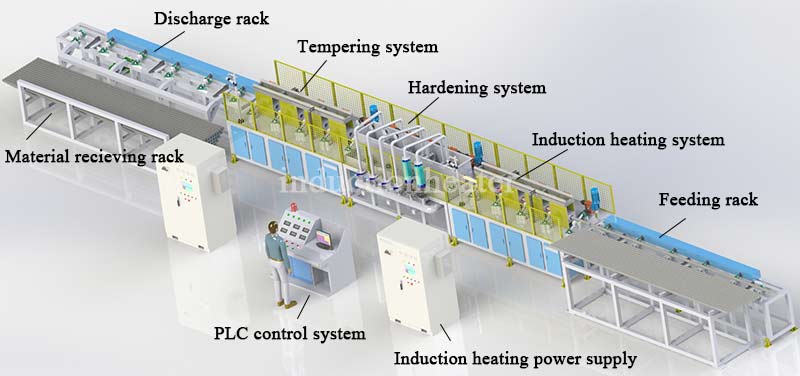

The bar hardening and tempering furnace is composed of Forever's unique intelligent intermediate frequency quenching system, intermediate frequency tempering system, intermediate frequency closed water cooling system, storage rack, quenching mechanical feeding device, infrared temperature measurement, spray cooling system, feeding device, unloading rack, and central control system. The bar hardening and tempering furnace can quench bar materials with a diameter of 25 or more. The heating method is online continuous heating. The bar hardening and tempering furnace only requires a crane to lift the steel bar onto the storage rack, and the rest of the actions are automatically completed by the system controlled by PLC. The steel bar heat treatment equipment adopts computer automatic control to store, display, automatically record and print the mechanical operating parameters, quenching parameters, temperature and other parameters of the entire system. The system runs automatically according to the set process parameters. Uniform heating temperature and high production efficiency.

IGBT Induction Power Supply

Bar Material Hardening and Tempering Equipment
