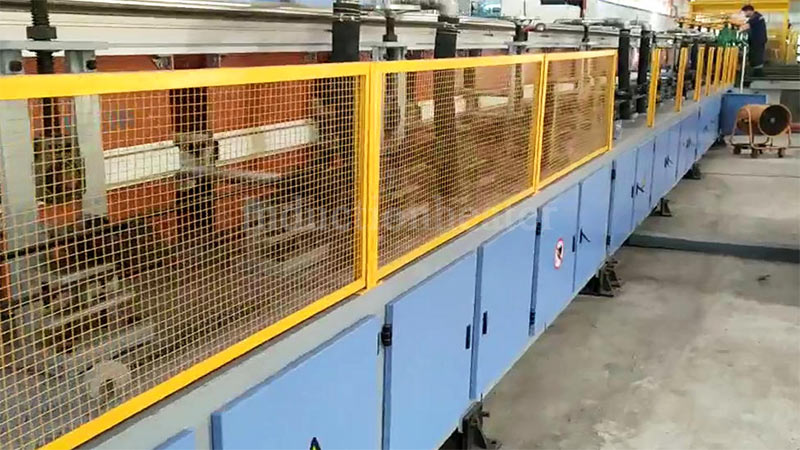

Threaded bar induction hardening and tempering equipment

Forever's threaded bar induction hardening and tempering equipment is indeed very professional in terms of efficiency, quality and automation, especially suitable for large-scale production.

The core advantages of the steel bar quenching, tempering and tempering furnace are:

1、 Heating efficiency and uniformity

Fast heating: Using non-contact induction heating technology, it can efficiently heat up after starting, without the need for long preheating times.

High temperature uniformity: Through multi zone independent power regulation and rotary conveying, the axial and radial temperature of the steel rod is ensured to be uniform, with a temperature difference controlled within ± 20 ℃.

2、 Cooling and tempering system

Flexible cooling: Adopting a ring-shaped segmented spray system, the flow rate and water pressure can be adjusted to adapt to different steel grades and specifications, ensuring uniform depth of the hardened layer (2-6mm).

Integrated tempering: Equipped with an induction tempering system, the temperature control range is 500-650 ℃, which quickly eliminates stress and improves toughness.

3、 Automation and Intelligent Control

Highly automated: integrating loading, heating, quenching, tempering, and unloading functions to achieve continuous production and reduce manual intervention.

Intelligent temperature control: adopting PLC centralized control and infrared temperature measurement closed-loop system, real-time data collection and automatic power adjustment to ensure process stability of the deformed bar induction hardening tempering machine.

4、 Production efficiency and applicability

Efficient and energy-saving: adopting network-based energy-saving power control, with low power consumption and high production efficiency.

Wide applicability: Suitable for steel bars with a diameter of 20-150mm, capable of processing workpieces with a diameter of 10-200mm, widely used in fields such as construction machinery and automotive parts.

5、 Quality stability

Uniform performance: After quenching and tempering, the overall performance of the workpiece is uniform, with a deviation of no more than 20MPa in yield strength and tensile strength.

High qualification rate: Through automated processing and precise control, the qualification rate of finished products is greatly improved, ensuring the stability of surface hardness.

6、 Data traceability and maintenance

Data recording: The control system can record and save all process parameters, facilitating future viewing of historical records and achieving long-term quality management.

Fault alarm: equipped with fault display and alarm functions, reducing downtime and improving equipment reliability.

Overall, this thread bar induction heat teatment machine from Forever not only ensures quality but also significantly improves production efficiency, making it particularly suitable for scenarios that require large-scale, high-precision processing.
