Intelligent Technology Upgrades: Sucker Rod Induction Hardening System Empowers Oil Equipment Manufacturing
In June 2026, a major technological breakthrough has emerged in the heat treatment of petroleum machinery. The upgraded intelligent sucker rod induction heat treatment machine has achieved large-scale industrial application, marking a new era of precision, high efficiency and digitalization for oilfield sucker rod processing.
Traditional sucker rod hardening mainly relies on manual operation and empirical temperature control. This conventional process faces prominent drawbacks, including unstable temperature control, inconsistent hardness distribution, excessive oxide scale, high energy consumption and low production consistency, which can hardly meet the industry’s growing demand for high-strength and long-service-life sucker rods. The newly upgraded intelligent induction hardening system solves these long-standing industry pain points by integrating intelligent closed-loop control technology, high-frequency power regulation and multi-dimensional real-time monitoring modules.

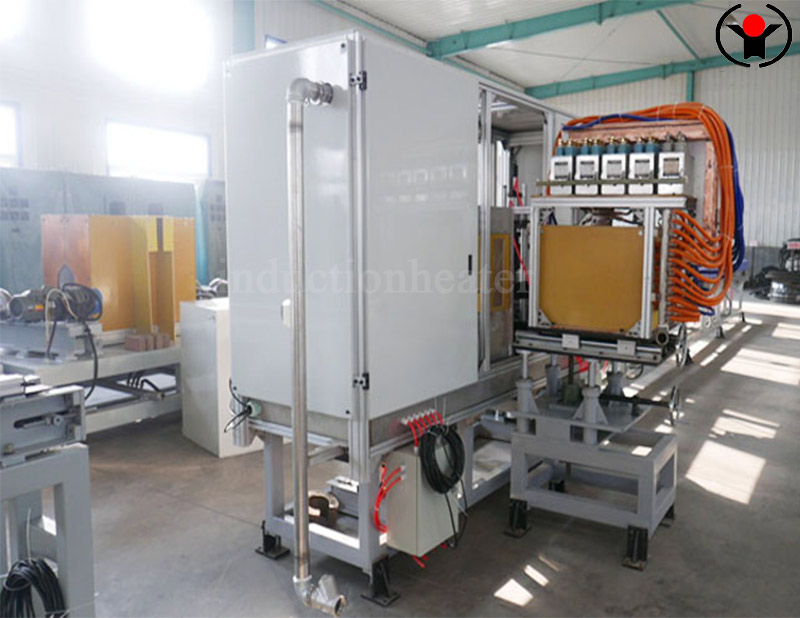

Equipped with an advanced PLC intelligent control system and human-machine interactive interface, the system integrates high-precision infrared temperature sensors, magnetic field sensors and water pressure and flow monitoring units. It collects core operational data in real time and adjusts technological parameters at the millisecond level, controlling the temperature error within ±2℃. This ensures uniform heating and consistent hardness of the entire sucker rod, greatly improving product qualification rate and structural stability.

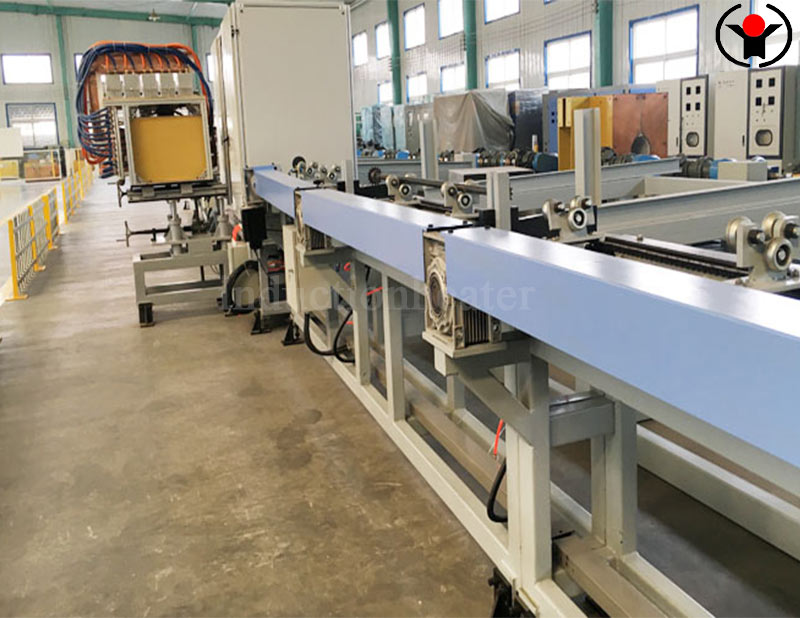

Adopting IGBT intermediate frequency power supply and series resonant circuit, the equipment realizes adaptive power matching according to workpiece status. It automatically reduces power under no-load conditions to save energy and outputs accurate energy under load conditions, boosting energy efficiency by more than 20% compared with traditional equipment. The built-in rotary conveying structure enables 360° uniform heating and cooling of sucker rods, effectively reducing oxide scale generation and material loss. The integrated straightening mechanism completes calibration synchronously during heat treatment, eliminating secondary processing procedures. It is compatible with solid and hollow sucker rods with a diameter of 16mm to 42mm, increasing overall production efficiency by 40%.
The system supports full digital management and intelligent operation and maintenance. Multiple built-in sensors monitor current, vibration and operating status in real time to realize early fault warning and predictive maintenance, reducing equipment failure rate and maintenance costs. All process data is automatically stored and traceable, supporting remote monitoring and parameter debugging, which perfectly adapts to Industry 4.0 intelligent production standards.
Industry experts pointed out that the popularization of the intelligent
sucker rod induction hardening system promotes the transformation of petroleum machinery heat treatment from experience-driven to data-driven manufacturing. It not only improves the quality and service life of oilfield equipment, but also promotes the green, low-carbon and intelligent upgrading of the machinery manufacturing industry. With the further integration of digital twin and IoT technology, the system will provide more reliable technical support for high-end oilfield equipment manufacturing in the future.
