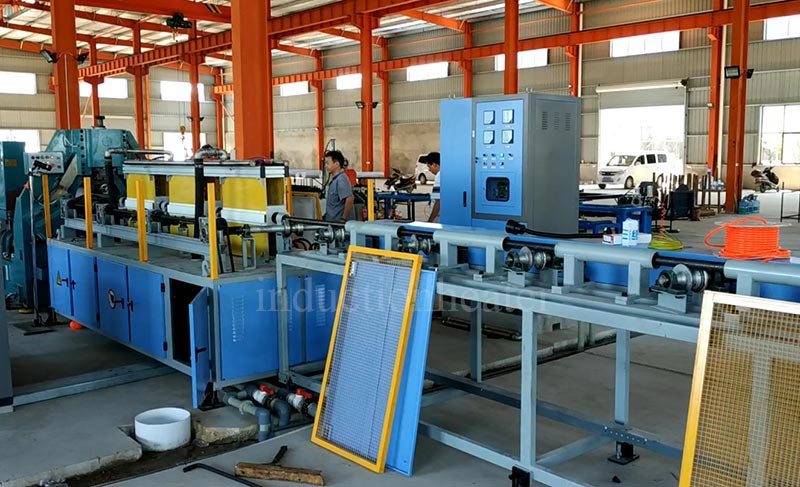

Seamless steel pipe induction annealing furnace

Hebei Forever Electromechanical Equipment Manufacturing Co., Ltd. has a professional design team for seamless steel pipe continuous annealing furnace technology solutions. We tailor a suitable seamless steel pipe induction heating annealing furnace according to your process requirements. The equipment is computer-controlled to achieve automatic loading, heating, and unmanned operation throughout the entire process. The dual color American Raytheon infrared thermometer is used for stable real-time control of the steel pipe, ensuring uniform heating and high product qualification rate.

Working characteristics of Forever Electromechanical high-efficiency seamless steel pipe annealing furnace:

1. Efficient and precise temperature control and uniformity guarantee

The furnace body is divided into multiple independent temperature control zones along the length direction (such as preheating zone, heating zone, uniform heating zone, slow cooling zone, etc.). Each zone is equipped with multiple high-precision thermocouples and intelligent PID regulators to ensure minimal horizontal and vertical temperature gradients inside the furnace, typically controlled within ± 5 ℃.

Install high-power, high-temperature resistant centrifugal circulating fans on the top or side walls to drive the protective atmosphere or hot air to flow at high speed and uniformly in the furnace, eliminating temperature blind spots and ensuring that every steel pipe and every part of the steel pipe is heated uniformly.

2. Advanced energy-saving technology and extremely low operating energy consumption

Using high-quality ceramic fiber modules, with small heat capacity, low thermal conductivity, extremely low heat storage and dissipation losses, fast heating and cooling speed, especially suitable for periodic production.

The flue gas generated by combustion is preheated to 400-600 ℃ by an efficient air preheater, which directly improves combustion efficiency and can save energy by 20% -30%.

The hot air from the cooling section (heat dissipated from the steel pipe) is recovered and sent to the heating section for use as secondary air or for preheating the cold steel pipe entering the furnace.

By using self preheating burners or regenerative combustion technology (RTO), air preheating and combustion are integrated, with a thermal efficiency of over 80%. At the same time, pulse/proportional combustion control is adopted to accurately adjust the firepower output according to the steel pipe electric induction annealing furnace temperature requirements, avoiding energy waste.

3. Highly automated and intelligent operation

Adopting PLC+industrial computer (IPC) control system to achieve fully automatic programmed control from loading, heating, insulation, cooling to discharging. The operator only needs to select the preset process curve (such as curves for different steel grades and specifications), and the system will automatically execute it.

Key parameters such as temperature, atmosphere, and operating speed throughout the entire process are automatically recorded and stored, and reports can be generated to provide data support for product quality traceability and process optimization.

Support remote status monitoring, fault alarm and preliminary diagnosis through the Internet to improve service response speed.

The working characteristics of Forever Electromechanical's high-efficiency seamless pipeline induction annealing furnace reflect the "four highs" development direction of modern industrial furnaces:

High quality: Through uniform temperature and controllable atmosphere, ensure that the hardness of the steel pipe is uniform, the structure meets the standard, and the surface is bright after annealing.

High efficiency: fast heating, efficient insulation, waste heat utilization, with energy consumption per unit output far lower than traditional furnace types.

High automation: One click operation, reducing human error, improving production stability and management efficiency.

High environmental protection: low emissions, low noise, in line with green manufacturing requirements.

This type of equipment is a key device for enhancing the added value of seamless steel pipe products and strengthening market competitiveness, especially suitable for high-end manufacturing fields that have strict requirements for product quality and cost control.
