Piston Rod Heat Treatment Production Line – Automatic Quenching & Tempering Solution

Introduction: Targeting Core Pain Points of Piston Rod Processing

Piston rods are key load-bearing parts widely adopted in hydraulic cylinders, construction machinery, mining equipment and automotive shock absorption systems. They operate under repeated reciprocating impact, friction and alternating stress, which sets strict standards for surface wear resistance, core toughness, straightness and fatigue performance. Traditional box-type furnace heat treatment often suffers from inconsistent hardness, large bending deformation, heavy oxide scale and low production efficiency. Uneven heating easily leads to local overheating, hidden cracking risk and high rejection rate in subsequent grinding and chrome plating procedures. To solve these bottlenecks, Forever Electromechanical launches the fully automatic piston rod induction quenching and tempering production line, built on mature IGBT medium-frequency induction technology for continuous one-flow heat treatment of round piston rods.

piston rod heat treatment production line

Workflow and Intelligent Control System

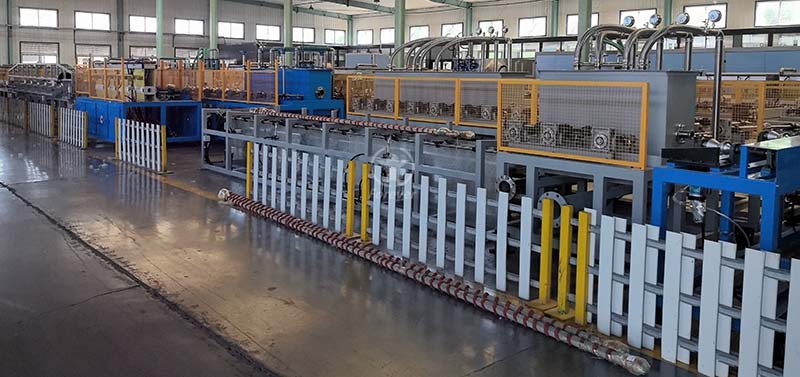

This production line integrates automatic feeding, centering positioning, induction quenching, precision spray cooling, induction tempering, online straightening and discharging as one closed-loop system. After manual or mechanical loading, servo roller conveyors clamp and send rods forward steadily to avoid offset during heating. Segmented induction coils are customized according to rod diameter and hardening depth requirement. Multi-channel infrared temperature sensors collect real-time temperature data along the workpiece and feed back to the IGBT power source, dynamically adjusting output power to stabilize heating temperature within a narrow tolerance range. The PLC touch screen stores multiple process recipes for different steel grades including 45# steel, 40Cr and 42CrMo. Operators can call preset parameters with one click, realizing repeatable and standardized quenching and tempering for mass orders. All production data such as temperature curve, feeding speed and running time are automatically recorded for full quality traceability.

steel bar induction hardening and tempering furnace

Core Advantages: Low Distortion, Stable Hardness and Energy Saving

Different from radiation heating of traditional furnaces, induction heating generates heat inside the piston rod through eddy current effect. Heating speed is fast and concentrated on the target layer, shortening high-temperature holding time greatly. It effectively reduces thermal stress and bending deformation, cutting the workload of post-heat straightening. The finished rod keeps excellent straightness, which lowers scrap rate in fine grinding and hard chrome plating. The separation of quenching and tempering stations balances surface hardness and core toughness, delivering stable mechanical properties and outstanding anti-fatigue performance. The IGBT power unit maintains high power factor under variable load, significantly cutting electricity consumption compared with resistance furnaces. Meanwhile, shorter high-temperature exposure suppresses decarburization and oxide scale, improving surface quality and reducing material loss. Flameless heating also helps factories meet low-carbon and clean manufacturing requirements.

Flexible Customization for Diversified Specifications

Forever Electromechanical supports personalized configuration for piston rods of different diameters, lengths and technical requirements. The coil structure, cooling manifold and power curve can be adjusted for overall quenching-tempering or local surface hardening treatment. The line can run independently or connect seamlessly with lathe, grinding and plating lines to build a full continuous production cell. Key components adopt standardized spare parts for easy maintenance, which helps overseas users minimize downtime. The whole line features stable operation, simple operation and strong compatibility for small-batch trial production and large-volume continuous production.

Application and Service Layout

This automatic piston rod heat treatment line serves hydraulic cylinder manufacturers, engineering machinery factories and precision component suppliers. As global hydraulic system customers raise higher requirements for component service life and consistency, demand for reliable induction heat treatment equipment keeps growing. Drawing on rich experience in billet, steel bar and pipe heat treatment lines, Forever Electromechanical provides integrated equipment, process debugging and long-term technical after-sales support. This new QT solution helps manufacturers balance product quality, output capacity and energy cost, becoming a preferred upgrade alternative to outdated batch furnaces for piston rod manufacturers worldwide.
