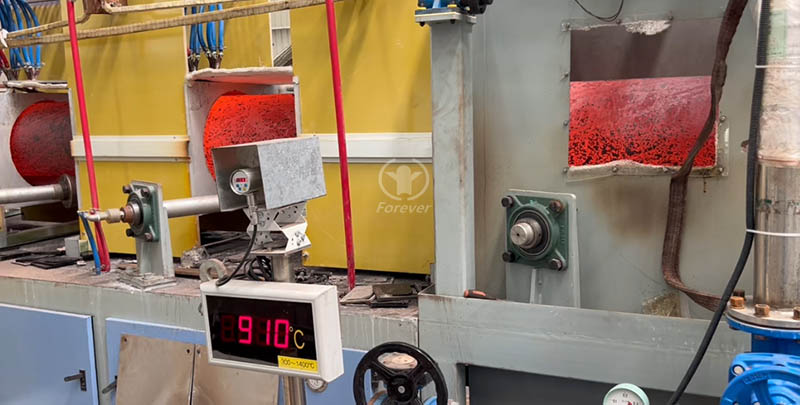

Long Pipe Induction Hardening Machine: Industry Pain Points & Targeted Solutions

Long pipe induction hardening is a critical‑link process for oil drill pipes, hydraulic tubes, seamless mechanical pipes and OCTG components. As global downstream industries raise higher standards for mechanical performance, surface hardness, straightness and batch consistency, many metal processing manufacturers are trapped by persistent bottlenecks from conventional induction hardening machine, which seriously restrict product yield, raise operational costs and limit output capacity.

The first major pain point is unstable metallurgical quality and high reject rate. Traditional pipe induction quenching machine mostly adopt fixed single‑segment coils and analog power units. When processing extra‑long workpieces, magnetic‑field distribution becomes inconsistent along the pipe body. It brings obvious temperature deviation between inner and outer walls, plus uneven circumferential heating. Consequently, hardness fluctuation exceeds 12‑15 HRC, with local soft spots, inconsistent quenching depth, pipe bending and thermal deformation. In severe cases, surface cracking occurs after spray quenching, creating large‑volume scrapping and heavy economic losses for factories.

Second pain point lies in high energy consumption and low production efficiency. Most legacy devices still rely on outdated SCR‑based power supply. Low energy‑conversion efficiency and large reactive‑power loss push up per‑ton power consumption. Meanwhile, low‑level automation forces frequent manual parameter adjustment for different pipe diameters, wall thicknesses and material grades. Operators must repeatedly tune power, travelling speed and quenching flow. Specification change‑over takes long time, and manual mis‑operation easily triggers defective batches. Continuous mass‑production capacity is greatly constrained.

Third pain point covers poor system stability and difficult maintenance. Under long‑term 24‑hour heavy‑duty running, old‑style power cabinets and ordinary coils suffer high failure frequency. Once key components break down, lengthy downtime halts the whole production line. Besides, lack of real‑time closed‑loop temperature monitoring makes quality trace‑ability impossible. Manufacturers cannot record actual heating data for each pipe, which fails to satisfy quality‑audit requirements for high‑end oil‑gas and engineering machinery projects.

To resolve above‑mentioned industry‑wide challenges, Forever Electromechanical launches optimized long pipe induction hardening machine, delivering integrated hardware‑and‑process solutions for global pipe heat‑treatment processors.

For inconsistent heating and pipe deformation, Forever applies segmented magnetic‑balance induction coils matched with rotary synchronous conveying structure. Pipes keep stable rotation during travelling, paired with 360° annular uniform spray quenching unit. Multi‑point infrared thermometers build full‑process temperature closed‑loop feedback. The system dynamically adjusts output power according to pipe material, dimension and line speed. It controls hardness deviation within ±2 HRC, effectively reduces bending distortion and lowers scrap rate dramatically.

For high‑energy consumption and heavy manual workload, the equipment adopts high‑performance digital IGBT power supply. Power factor reaches above 0.95 with greatly reduced reactive‑power loss. Full‑PLC automatic control realizes one‑key parameter recall for various pipe specifications. Servo feeding system guarantees stable travelling speed. One single operator can manage the whole line, cutting labor cost and shortening specification‑switching cycle significantly.

Regarding reliability and quality trace‑ability, Forever designs modular power units and easy‑replace coil assemblies to shorten maintenance cycles. The system automatically stores production data including temperature, power, speed and quenching parameters for every workpiece. Historical records can be exported for quality review. Heavy‑duty cabinet structure adapts to non‑stop industrial running, lowering unexpected shutdown risks.

Forever Electromechanical’s long pipe induction hardening machine supports wide‑range pipe diameter coverage, adaptable for seamless steel pipe, drill pipe, hydraulic support pipe and casing. It helps overseas customers achieve stable high‑quality hardening production, balancing quality improvement, energy‑saving and operational cost‑reduction for modern metal heat‑treatment workshops.
