Long Bar Induction Hardening & Tempering Machine: Optimized Heat Treatment Solution for Steel Bars

With the rapid upgrading of steel processing standards, long steel bars used in machinery, construction and automotive industries require balanced hardness, toughness and ultra-low deformation after heat treatment. Traditional batch furnace tempering solutions suffer from slow heating, serious oxidation, inconsistent metallographic structure and large dimensional deviation, which can no longer meet high-standard industrial production demands. The newly optimized Long Bar Induction Hardening & Tempering Machine provides a professional one-stop thermal processing solution for long steel bars, realizing standardized, precise and efficient induction quenching and tempering treatment for various carbon steel and alloy steel long bars.

long bar induction hardening & tempering machine

This professional long bar induction hardening and tempering furnace adopts advanced IGBT medium-frequency induction technology and independent dual-power control design, separating hardening heating and tempering heating power systems to support flexible parameter matching for different steel grades and bar specifications. Different from traditional overall slow heating, it utilizes electromagnetic eddy current internal heating to achieve rapid and uniform temperature penetration on the surface and core of long bars. The optimized segmented coil structure effectively balances the temperature gradient of bar ends and middle sections, completely solving common industrial pain points such as local overheating, insufficient core temperature and uneven hardness distribution.

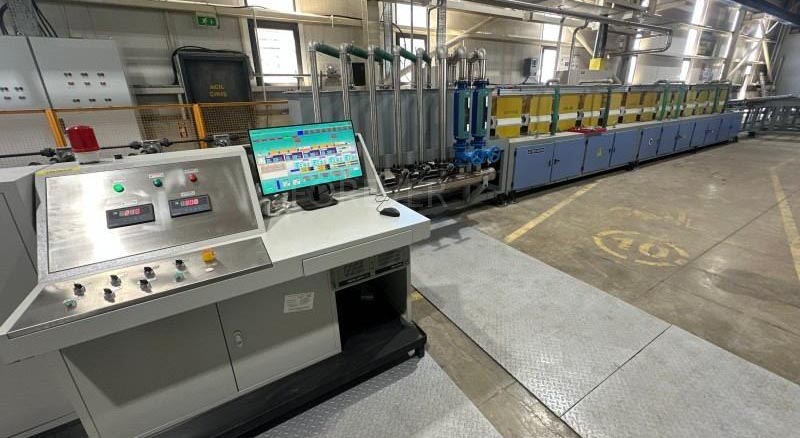

Equipped with high-precision infrared closed-loop temperature detection system and PLC intelligent control module, the equipment realizes real-time temperature monitoring and dynamic power compensation throughout the processing procedure. It maintains stable heating accuracy and uniform metallographic transformation, ensuring consistent mechanical properties of each steel bar. Matched with variable-frequency rotating conveying mechanism, long bars advance and rotate stably during heating and cooling, achieving all-round uniform hardening and tempering effect, which greatly reduces bending deformation and effectively improves product qualification rate.

Equipped with independent dual-power control systems for quenching and tempering sections, the equipment supports separate parameter adjustment to match diverse steel grades and bar specifications. The high-precision infrared temperature closed-loop monitoring system achieves real-time temperature tracking and dynamic power compensation, maintaining ultra-stable heating accuracy throughout the production process. Cooperated with variable-frequency skew roller conveying mechanism, long steel bars rotate and advance stably at a constant speed, ensuring uniform circumferential heating and even cooling effect. The whole process realizes stable hardness uniformity within ±10 HB, greatly improving the qualification rate of finished steel bars.

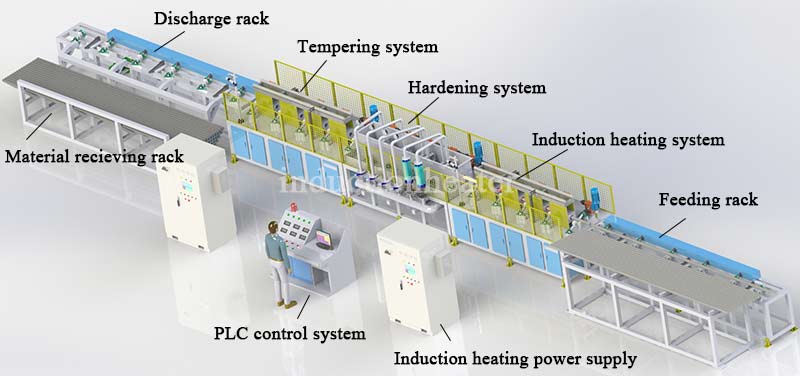

The integrated process flow includes automatic feeding, induction hardening heating, circulating spray quenching, low-temperature induction tempering and intelligent discharging, forming a fully continuous unmanned production mode. It supports 24-hour uninterrupted operation, effectively shortening the heat treatment cycle and improving production efficiency by more than 35% compared with traditional furnace processing. Meanwhile, the induction heating mode features high thermal efficiency and low energy consumption, while the closed cooling system minimizes oxide scale generation and avoids surface decarburization, ensuring smooth and high-quality bar surface.

Widely applicable to heat treatment of engineering machinery bars, structural steel bars and automotive high-strength bars, this Long Bar Induction Hardening & Tempering Machine can stably optimize the hardness, toughness and wear resistance of steel materials. As a mature and upgraded heat treatment solution, it helps steel processing enterprises achieve high-precision, energy-saving and intelligent production, becoming the ideal replacement for traditional furnace heat treatment equipment.
