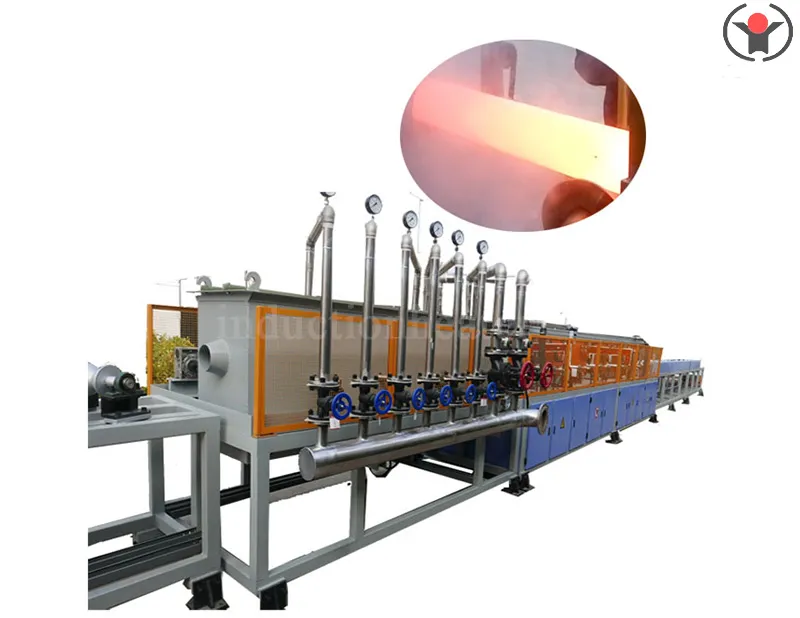

Wear-resistant steel bar induction hardening furnace

Inquire Now Next Product

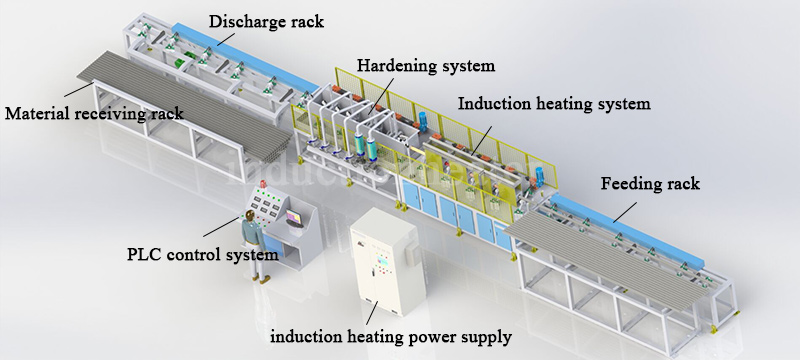

The complete set of wear -resistant steel bar induction hardening furnace consists of a material rack, quenching induction heating system, spray quenching device, intermediate frequency power supply, and PLC control system. The operation is mainly focused on the console equipped with a touch screen, which is easy to operate. The device's functions can be achieved through a touch screen with simple point control operations.

Wear-resistant steel bar induction hardening furnace

Technical Specifications of the wear-resistant steel bar induction hardening equipment

Power range: 160-1000KW (optional 0.5-2.5KHz or customized).

Applicable specifications: Diameter ø 20 ø 150mm, unlimited length, hourly output of 0.5-30 tons.

Cooling system: multi-stage spray cooling, adjustable pressure and flow rate, suitable for different hardenability requirements.

Advantages of the wear-resistant steel bar induction hardening furnace

1. High efficiency: Induction heating technology can quickly and uniformly heat steel bars, improving production efficiency.

2. Precise control: Through the PLC control system and touch screen operation interface, heating parameters can be accurately set and controlled to ensure stable and consistent product quality.

3. Low energy consumption: Induction heating technology has high energy utilization efficiency and saves energy.

4. Easy to operate: Point control is performed through the touch screen, simplifying the operation process and improving the work efficiency of operators.

5. High degree of automation: The steel bar induction hardening line is equipped with an automated control system, which can achieve automated production and reduce manual intervention.
