Continuous casting billet heating furnace

Forever Electromechanical specializes in providing continuous casting billet heating furnaces, PLC fully automatic intelligent control, closed-loop temperature control for continuous casting billet heating furnaces, uniform heating, no overburning, no deformation, no cracks, quality assurance, and free technical solutions and pricing for continuous casting billet heating furnaces for users.

Brand: Yuantuo Electromechanical

Customized processing: Yes

Steel grade materials: carbon steel, alloy steel;

Steel damage size: 120mmX120mmx6000mm; Before entering the furnace, the steel billet has a large curvature of 1000mm, with a maximum curvature of ≤ 4mm

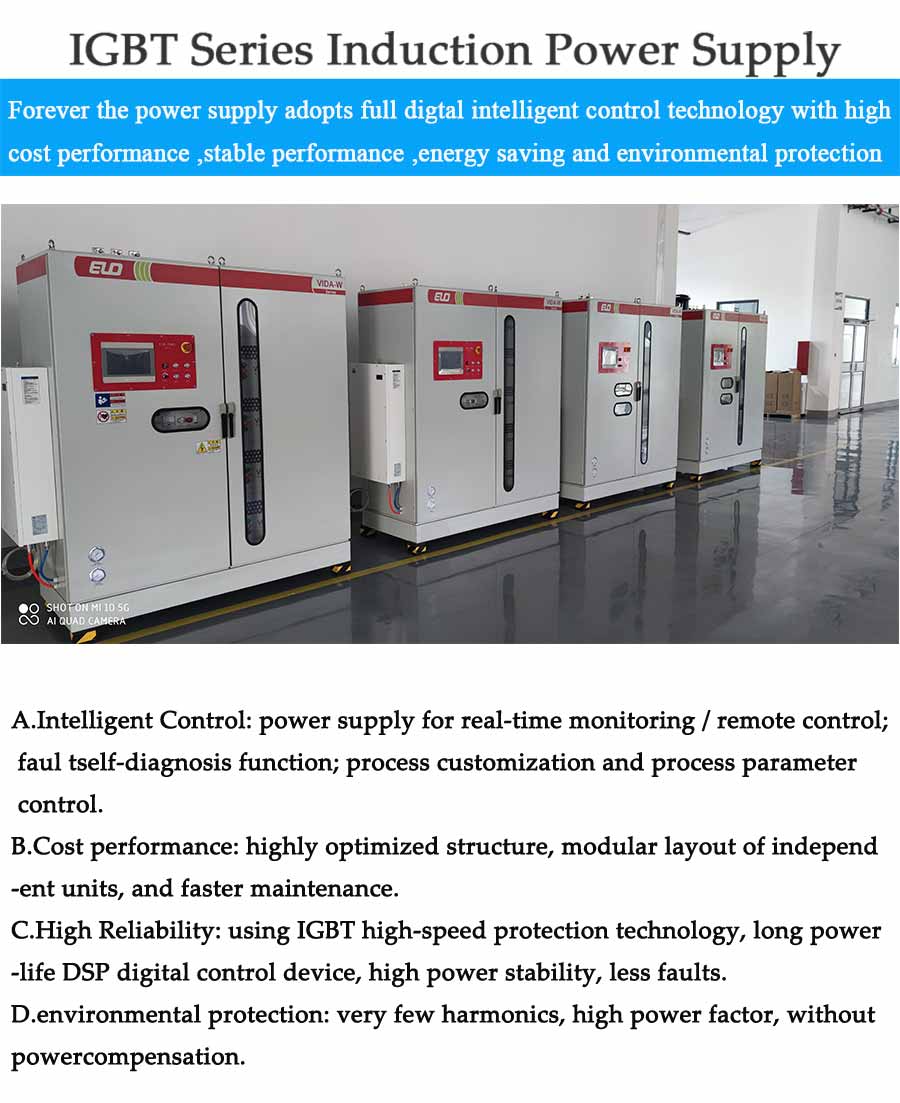

★ Power supply system: IGBT induction heating power supply control. Install specialized transformers on the equipment to reduce the impact of harmonics on the power grid. Users can use it with confidence, safe and reliable.

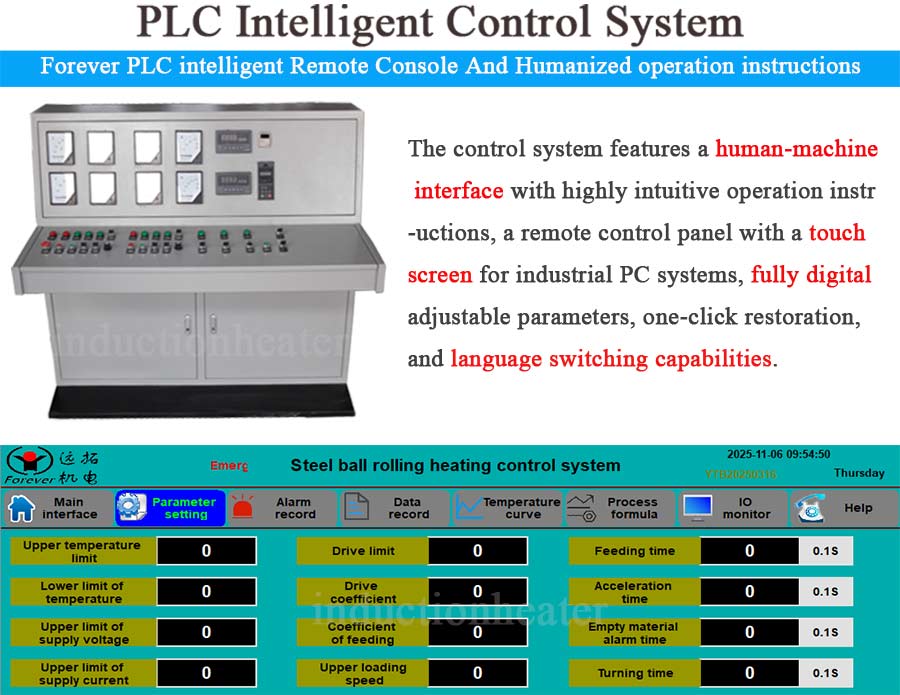

★ Surface temperature of continuous casting steel billet before entering the heating furnace: 850 ℃ Control system: The entire heating process is automatically controlled by PLC, and production records such as heating quantity are displayed in a timely manner. This console is designed for standalone use, with a specially customized human-machine interface, highly user-friendly operation instructions, fully digital and deep adjustable parameters, and a one click restore function. It is easy to operate.

★ The power supply requirements for the steel heating furnace include dual power transformers and a 12 pulse rectifier power supply, which can infinitely reduce harmonic pollution and improve work efficiency.

★ Feeding and guiding system: Each axis is driven by an independent motor reducer, with multiple axis drives and a single frequency converter control to synchronize the operation of multiple axes. The components are selected from well-known brands, with reliable quality and stable operation. Using 304 non-magnetic stainless steel guide wheels, the axial elasticity of the guide wheels is maintained to adapt to the allowable bending range of the steel billet.

★ All cabinets are sandblasted, sprayed with plastic, and baked with paint. The waterways are made of thick walled stainless steel. The continuous casting steel billet heating furnace is corrosion-resistant and has a long service life. The equipment is equipped with a large LCD temperature display screen (which is convenient for on-site personnel to observe and display data).
