Main Technical Parameters of Steel Ball Forging Production Line

● Workpiece materials: B2, B3, B6, 70Cr2, 75Mncr, 65Mn, 60Mn, GCr15, 40Cr, 45#.

● Power supply: KGPS 200-6000kW or IGBT 200-2000kW.

● Applicable range: Φ20mm-Φ250mm.

● Adjustable rollers: Ensure uniform feed speed for workpieces of varying diameters. The rollers between the furnaces and the rollers are made of 304 non-magnetic stainless steel and are water-cooled.

● Infrared temperature measurement: An infrared temperature measurement device is installed at the discharge end to ensure consistent temperature of the bars before they enter the forging press/air hammer.

Steel Ball Production Line

Advantages and Characteristics of Steel Ball Forging Production Line

● The steel ball forging production line offers stable production, excellent hardenability, dense metallographic structure, fine grains, and stable deformation. The steel balls retain their shape and roundness, while maintaining low energy consumption, achieving impact strengths of 12-35 J/cm² and a breakage rate of less than 1%.

● The entire steel ball forging production line is highly automated, from loading to cutting. This significantly reduces labor intensity, minimizes human interference, and improves steel ball production quality.

● Due to the rapid medium-frequency heating rate, the contact time between the round steel surface and air is shortened, significantly reducing surface oxidation and scale formation. This improves round steel utilization, saves production costs, and enhances steel ball production efficiency.

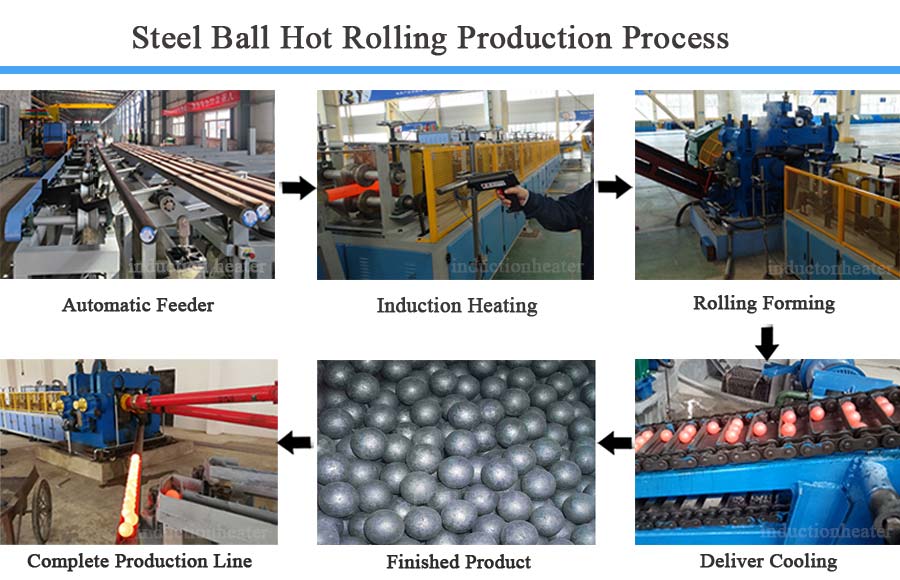

Steel Ball Hot Rolling Production Process

Steel Ball Production Line
