Forever Electromechanical specializes in manufacturing intelligent fully automatic hot-rolled steel ball production lines, engaged in the induction heating industry for more than 20 years, with rich practical production experience and successful cases. The steel pipe hot rolling equipment has the advantages of high production efficiency, beautiful appearance of heated products, smooth surface, and high finished product qualification rate. Welcome to visit the factory and discuss business.
main components
The main components of the steel ball heat treatment heating equipment are:
1. Storage rack and automatic feeding and conveying device;
2. Induction heating furnace and temperature control device;
3. Steel ball skew rolling unit;
4. Steel ball lifting and conveying cooling device;
5. Isothermal quenching device;
6. Trolley type or online mesh belt tempering furnace;
7. Automatic control system for quenching temperature, quenching water, and tempering temperature.
Overview of the principle and process
Overview of the principle and process of hot rolling steel balls in an electric furnace:

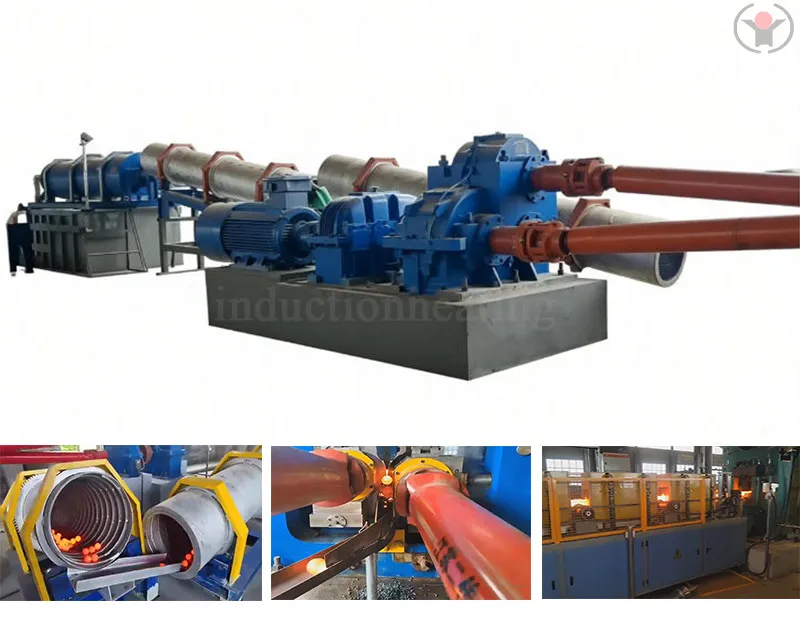

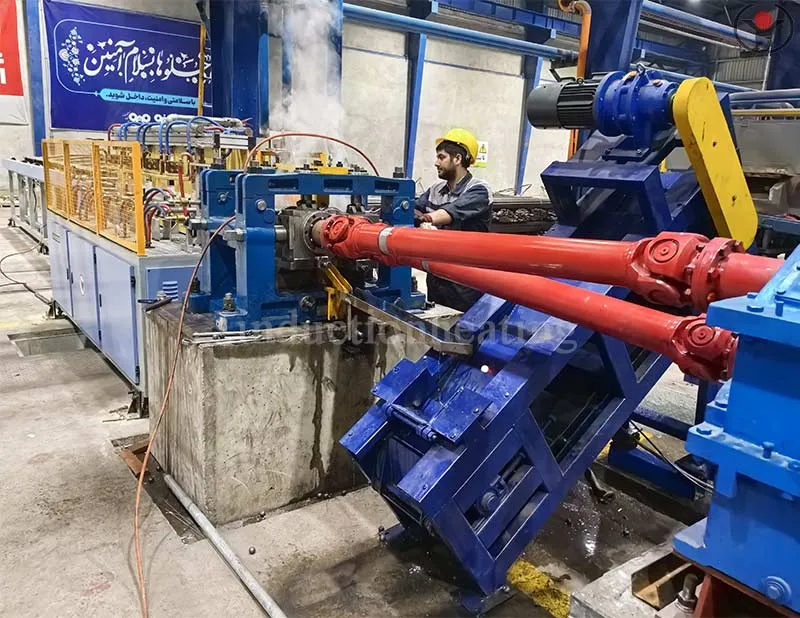

Steel ball oblique rolling mill is used to produce steel balls. When rolling steel balls diagonally, in order to make the spiral direction on the rolling mill correspond to the spiral direction on the rolled piece, the axis of the rolling mill and the axis of the rolled piece form an angle with each other. The angle between the two rolls is generally 2-6 degrees. The rolling mill has a spiral hole pattern. When the two rolls rotate in the same direction, the material is returned to the opposite direction between the rolls and moves forward. Under the action of the spiral hole pattern, the round steel billet gradually becomes spherical
The connecting neck between the spheres becomes thinner and thinner, and finally disconnects to obtain a steel ball.
After sales service
After sales service of Forever Electromechanical Steel Ball Hot Rolling Electric Furnace:
1. Company strength guarantee: Our company will establish a dedicated after-sales service system for the induction heating equipment project;
2. If you have any questions, please feel free to contact us at any time. 3. Under equal competitive conditions, our company sincerely offers you the most favorable price without compromising the technical performance of the bar heating equipment or changing product components. 4. During the warranty period, the supplier will provide free repair and replacement of parts damaged due to quality issues in the hot-rolled steel ball heating production line. For parts damaged outside the warranty period, only the cost fee will be charged for the provided parts. For equipment damage caused by human factors on the part of the purchaser, the supplier's repair or provided parts will be calculated at cost price.
Company
Transportation
Contact us
If you are also interested in this machine,please don’t hesitate to contact us:
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone/Wechat/Whatsapp:+86 13303078975
