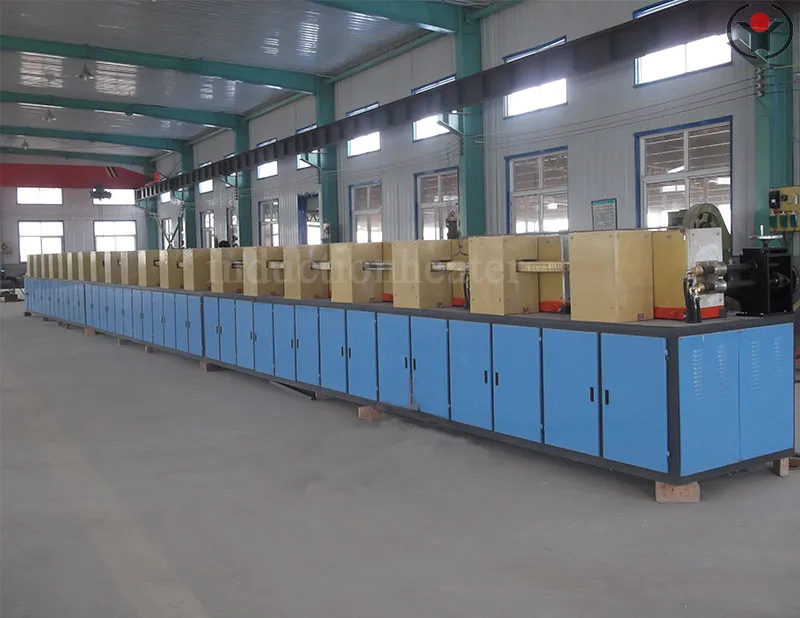

Threaded Steel Bar Heating Equipment

Inquire Now Next Product

Forever Electromechanical Equipment Manufacturing Co., Ltd. has introduced advanced induction heating technology. The threaded steel bar heating equipment adopts advanced industrial control computer to control the entire system. The threaded steel bar heating equipment has high reliability and can work continuously for 24 hours at full load. The induction heating equipment has protection functions such as overvoltage, overcurrent, water shortage, load short circuit and discomfort. The program is also equipped with one click restoration of the factory date setting of the threaded steel bar heating equipment.

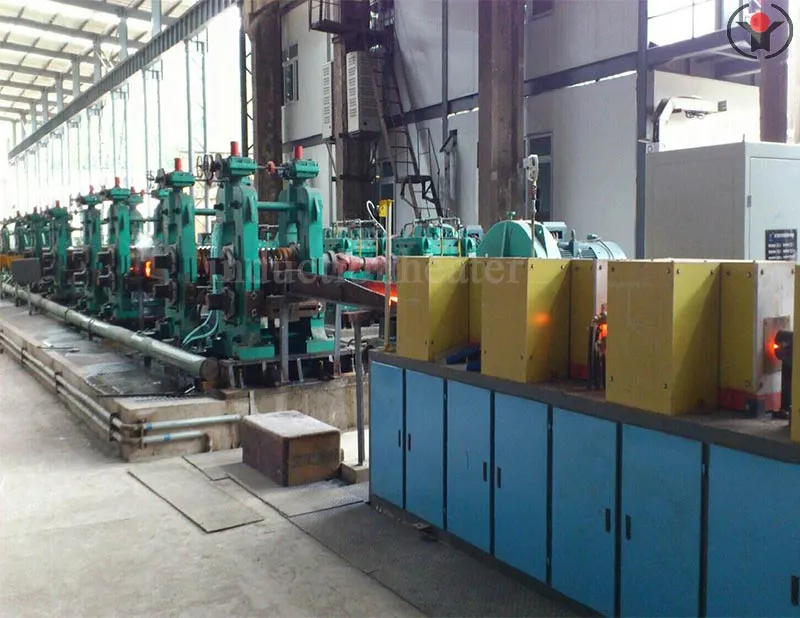

The spiral steel bar heating equipment provided by Forever Electromechanical is mainly used for high-strength hot-rolled spiral steel bars, which are processed by heating and hot rolling to achieve various properties that meet international standards.

Threaded Steel Bar Heating Equipment

Equipment name: Threaded steel bar heating equipment

Non standard customization: Yes

Product specifications: Diameter 15mm-52mm

Product length: 5m-16m

Annual output: 10000 tons

The requirement for the bending degree of threaded steel bars is that the bending degree per meter of steel bars should not exceed 4mm, and the total bending degree should not exceed 0.4% of the total length of steel bars.

Significant advantages of threaded steel bar heating equipment

1. Induction heating equipment for threaded steel bars, with fast heating speed and less oxidation and decarburization.

2. The threaded steel bars after heating have less oxidation, high heating efficiency, and good process repeatability.

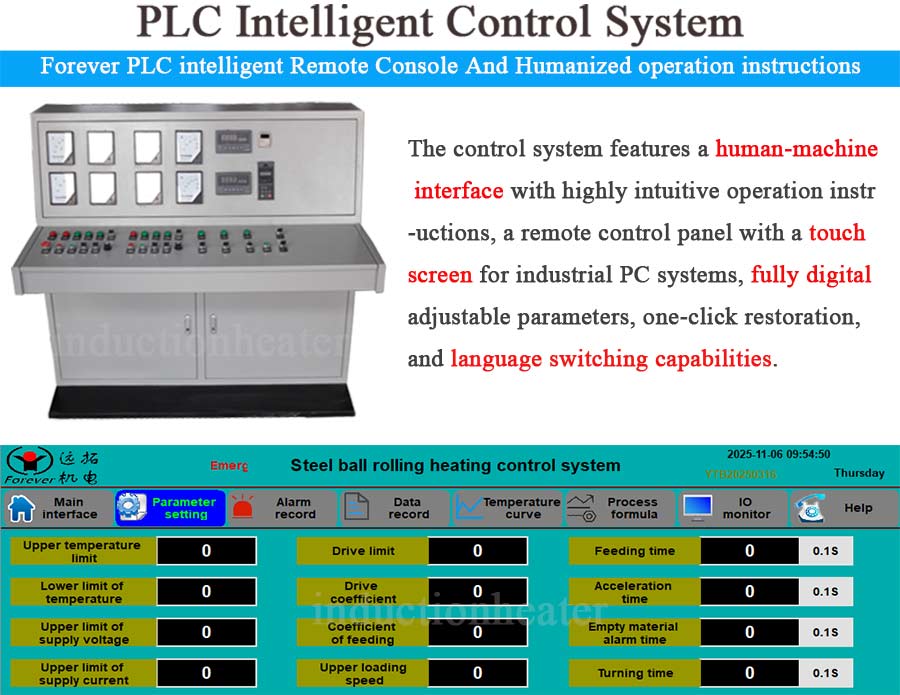

2. The spiral steel bar heating equipment has a high degree of automation, with a PLC fully automatic intelligent control system.

3. Uniform heating, high temperature control accuracy, easy to achieve uniform heating, and small temperature difference between the core and surface. The application of temperature control system can achieve precise temperature control.

4. The spiral steel billet hot rolling heating furnace is equipped with low energy consumption and no pollution. Compared with other heating methods, induction heating has high heating efficiency, low energy consumption, and no pollution.

5. The temperature is controlled by a Raytheon thermometer from the United States, and the heating is uniform. The bar material does not crack or deform.

6. Consistency of higher hardness and uniformity of microstructure;

7. The heated threaded steel bars have high toughness and impact strength;

IGBT Induction Power Supply

Threaded Steel Bar Heating Equipment
