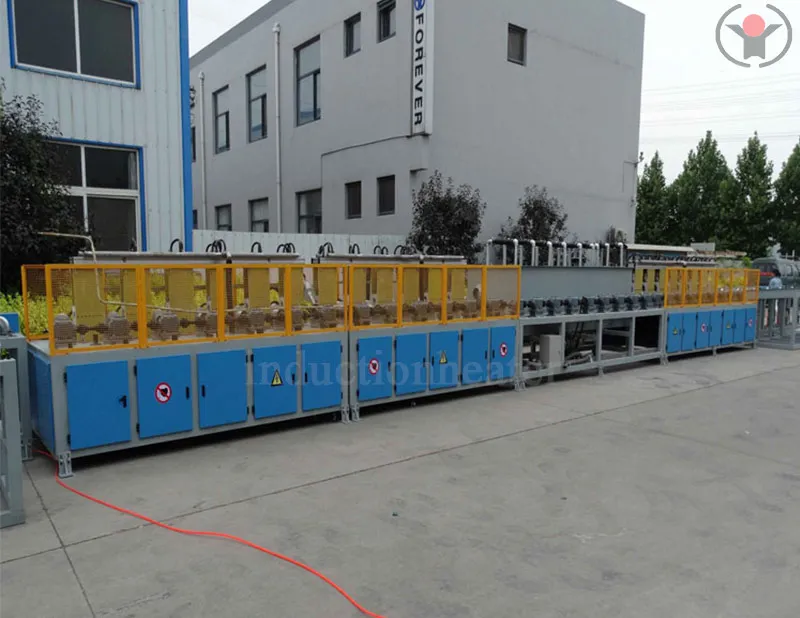

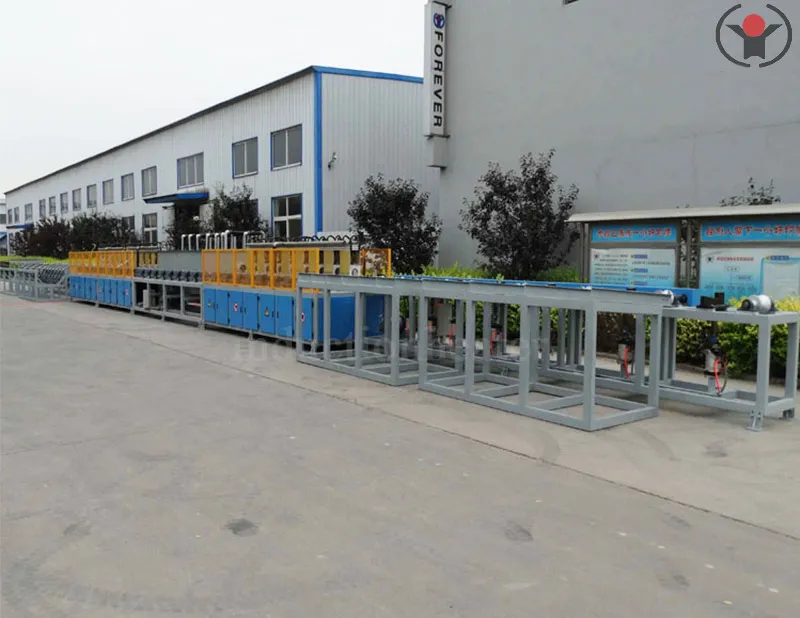

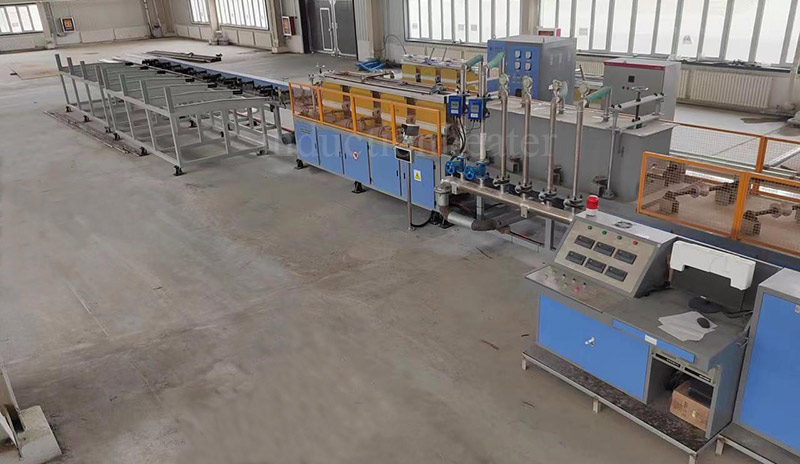

Long Rod Quenching and Tempering Production Line

Long rod quenching and tempering production line

The long rod quenching and tempering heat treatment production line adopts the principle of electromagnetic induction to heat the quenched and tempered rods. The intelligent long rod quenching and tempering heat treatment production line is a non standardized product. In the early stage of technical communication, the heating temperature, heating speed, rod specifications and other parameters should be clarified, and the heating power, feeding method, etc. can be determined to determine the parameter design of the quenching and tempering heat treatment production line, laying a foundation for the design, equipment manufacturing, debugging and maintenance, after-sales service, etc. of the quenching and tempering heat treatment production line.

① Quenching uses two power sources, two frequencies, each with a set of sensors.

② Tempering also uses two power supplies, two frequencies, each with a set of sensors, making it easier to control the temperature, making it easier for the heated parts to be burned through, and the temperature to be more uniform.

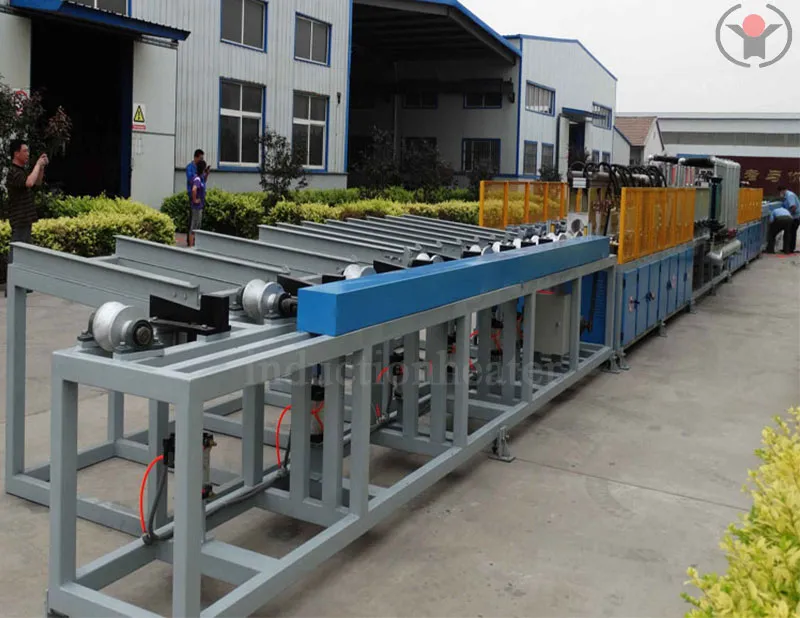

③ Automatic loading and unloading.

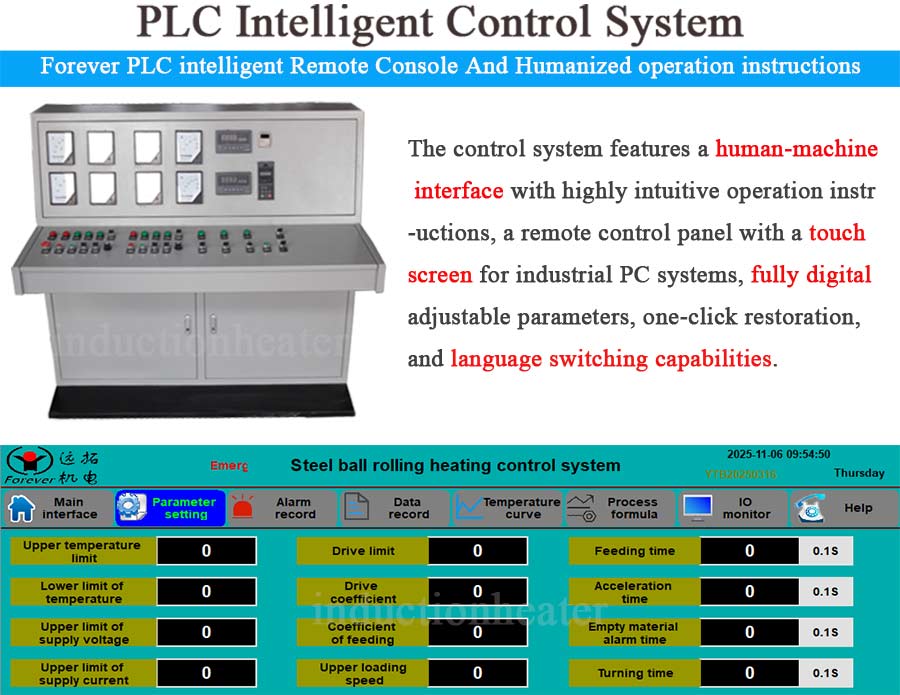

④ The flow rate and water pressure of quenching and tempering spray can be automatically controlled according to the heat treatment process and can be communicated between humans and machines. Three stage annular spray device, with independently adjustable flow rate for each stage. (It can also be adjusted to one or two levels according to the requirements of the heat treatment process).

⑤ Automatic operation makes the quality of oil drilling tools more stable and reliable.

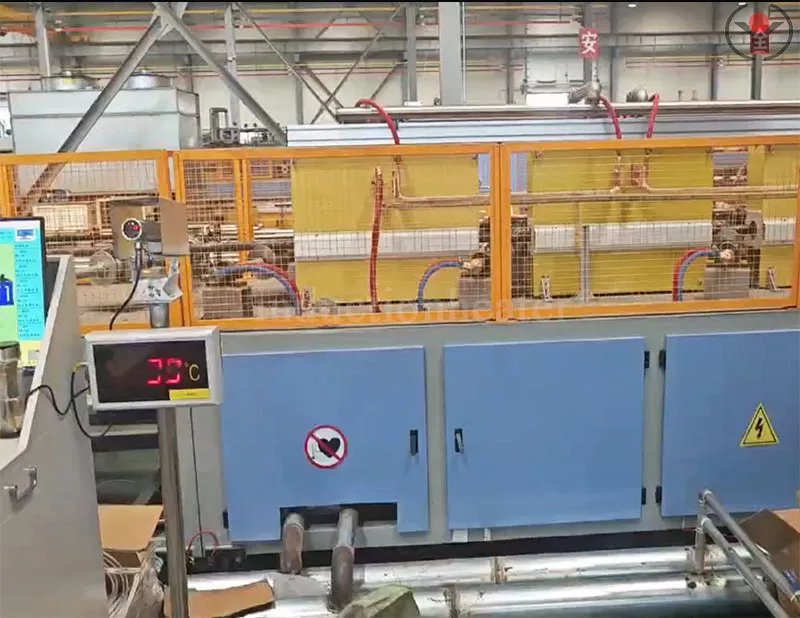

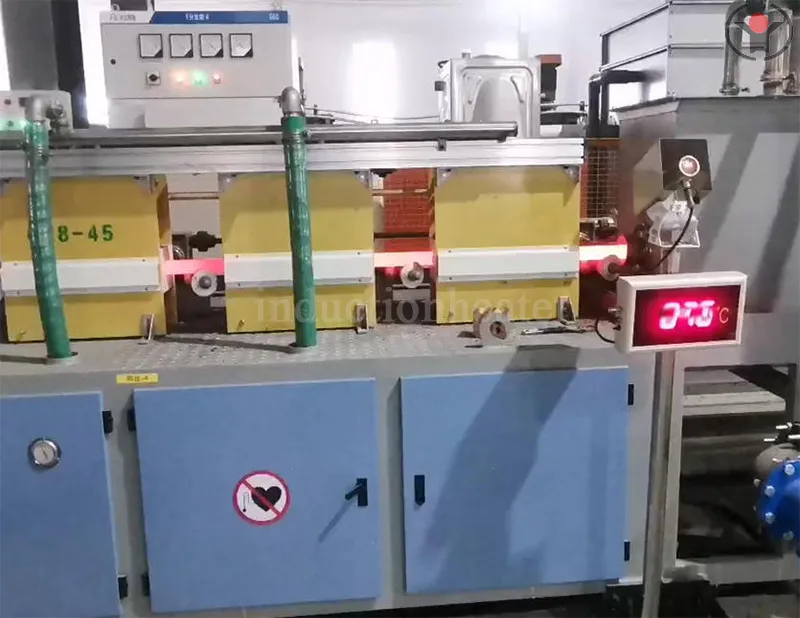

⑥ The quenching machine includes sensors, roller conveyors, frequency converters, and cylindrical quenching spray devices. The tempering machine includes sensors, roller conveyors, frequency converters, and circular cylindrical tempering spray devices.

⑦ Adjustment device: The workpiece rotates and advances along the axial direction, using stepless variable frequency speed regulation. The driving power and speed range can meet the quenching and tempering speed requirements of workpieces with different diameters.
