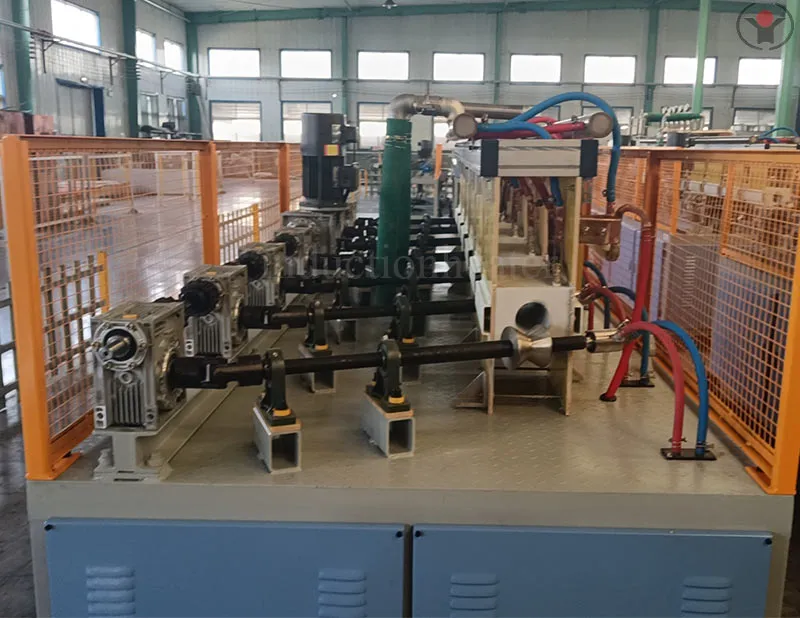

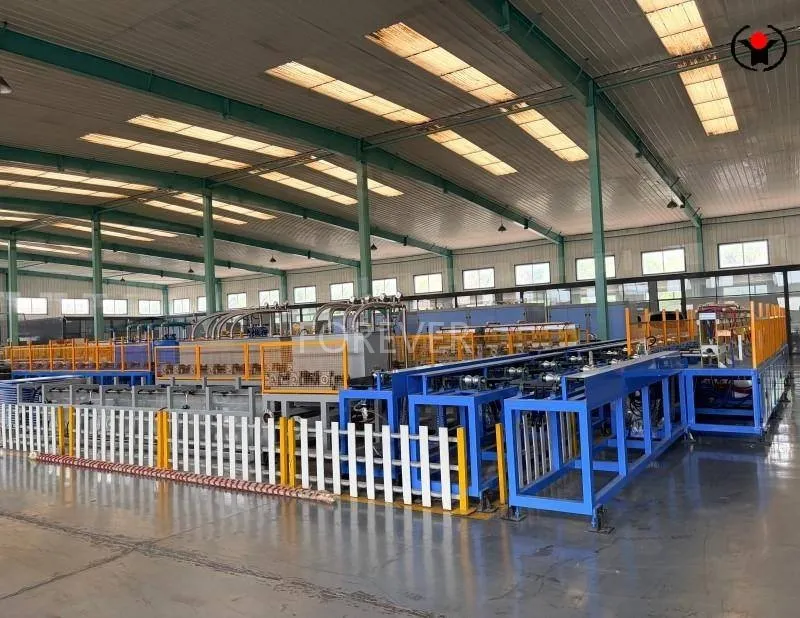

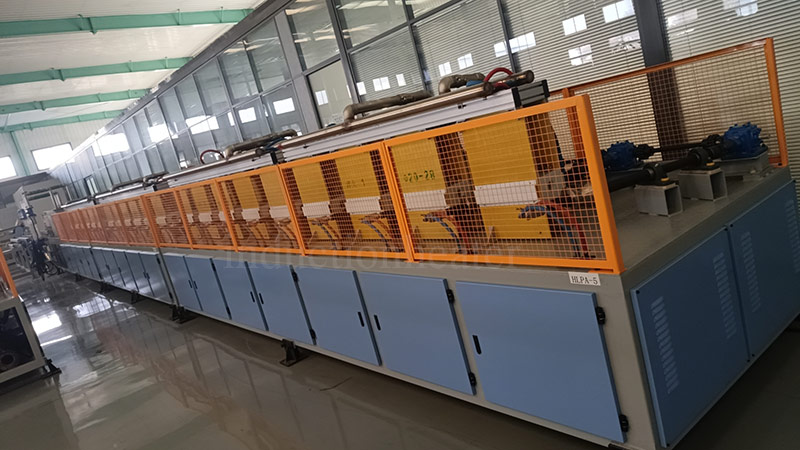

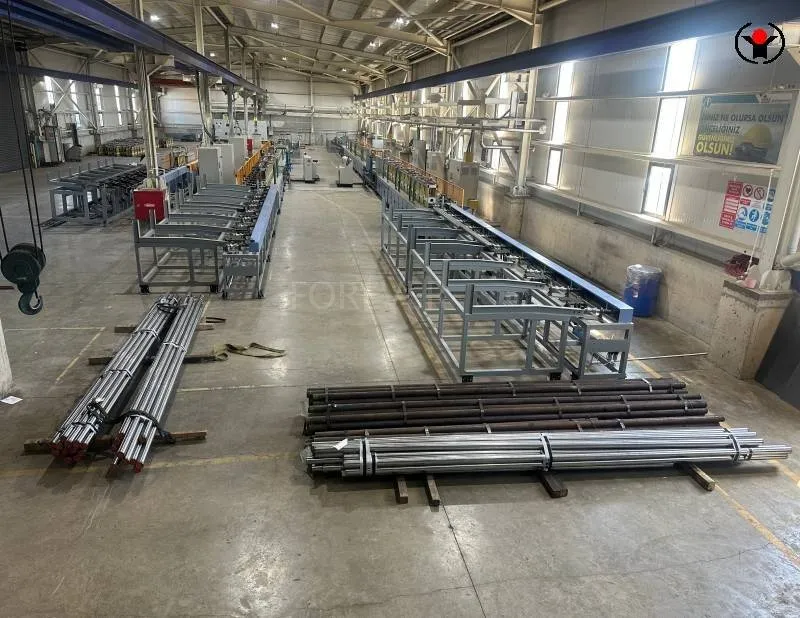

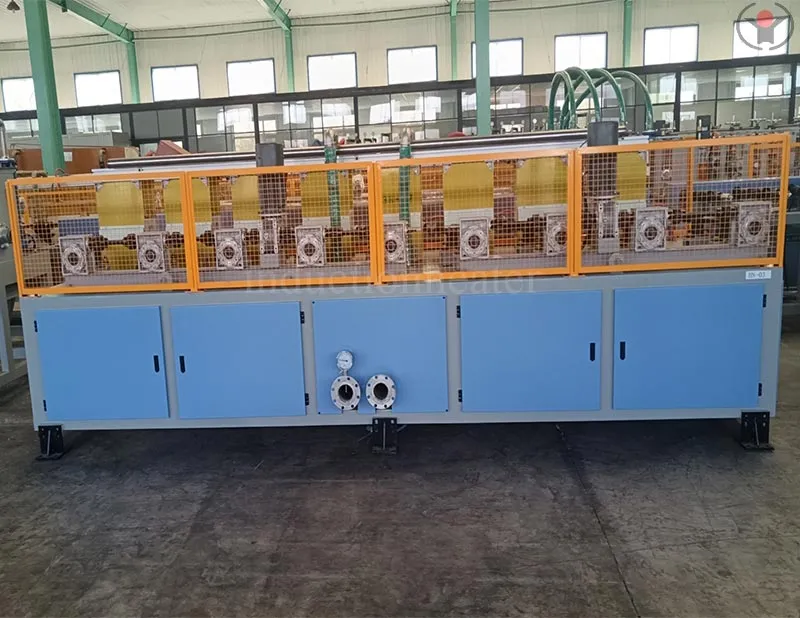

Long Bar Induction Quenching and Tempering Line

Inquire Now Next Product

product details

This fully automatic continuous heat treatment line is customized for long steel bars and rods ranging Φ20–150mm, covering carbon steel, alloy steel, 42CrMo and other metal blanks. Equipped with high-efficiency IGBT medium-frequency induction power supply, it integrates automatic feeding, induction quenching, circulating spray cooling, induction tempering and discharging as one closed-loop production system.

Supported by PLC + infrared closed-loop temperature control, the line realizes precise regulation of heating power, conveying speed and cooling flow, delivering uniform hardness within ±10HB and minimal workpiece deformation without surface decarburization.

The modular design supports flexible adjustment for various bar lengths and diameters. Widely used for hydraulic piston rods, wind power bolts, lead screws and machinery long shafts, it stabilizes tensile strength, toughness and wear resistance to meet strict industrial heat treatment standards, ideal for large-volume metal processing factories worldwide.

Long Bar Induction Quenching and Tempering Line

Advantages & Features

Advantages & Features of Long Bar Induction Quenching and Tempering Line

Integrated continuous process
Combine automatic feeding, quenching, cooling, tempering and discharging into one production line, realize one-stop heat treatment for long bars, save labor and floor space.
IGBT medium-frequency induction heating
Fast heating speed, high thermal efficiency, 30%-50% lower energy consumption than traditional furnace heating, reduce production cost.
Precise constant temperature control
Match PLC system with infrared temperature detector, stable heating temperature, uniform hardness of workpieces, small deformation, no surface decarburization.
Wide processing adaptability
Modular adjustable structure, support different diameters and lengths of alloy steel, carbon steel long bars, easy parameter switching for multi-spec production.
Stable & high output
Continuous automatic conveying, uninterrupted mass production, consistent product quality, suitable for large-scale metal processing factories.
Environment-friendly
Clean heating without fuel combustion, no waste gas emission, circulating cooling water with recycling system, low noise operation.
Easy operation & low maintenance
Intelligent touch screen operation, preset process recipes for one-click start; standardized modular components, convenient daily inspection and replacement.
Excellent mechanical performance of finished products
After quenching and tempering, long bars gain balanced hardness, toughness and wear resistance, meet strict standards for piston rods, long shafts, wind power fasteners.
