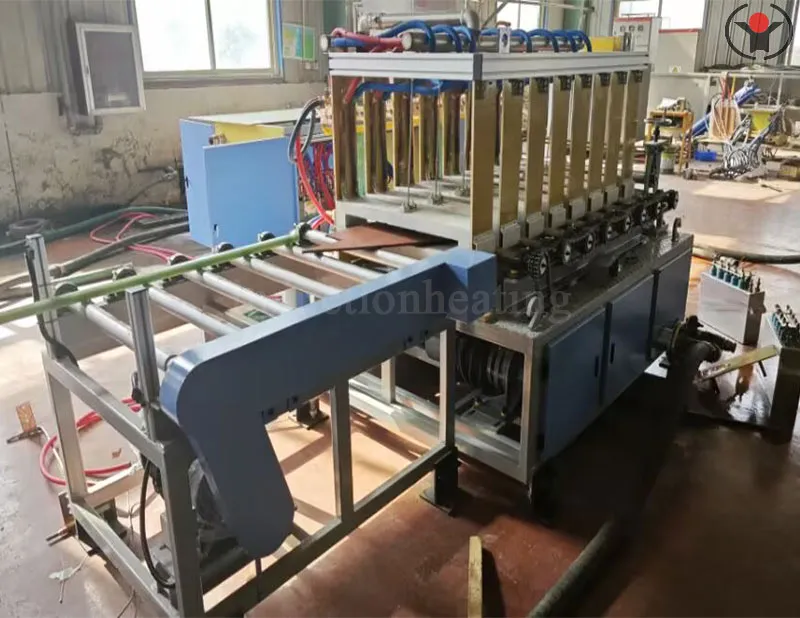

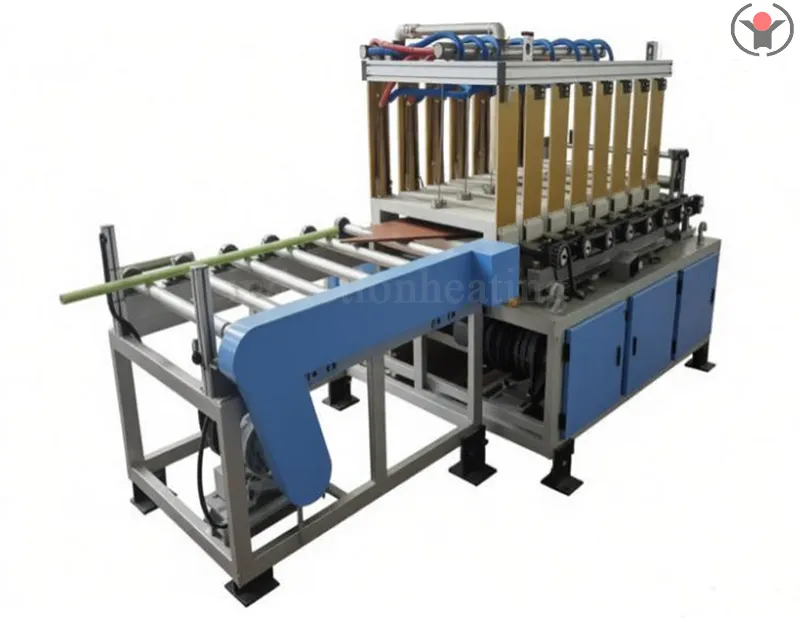

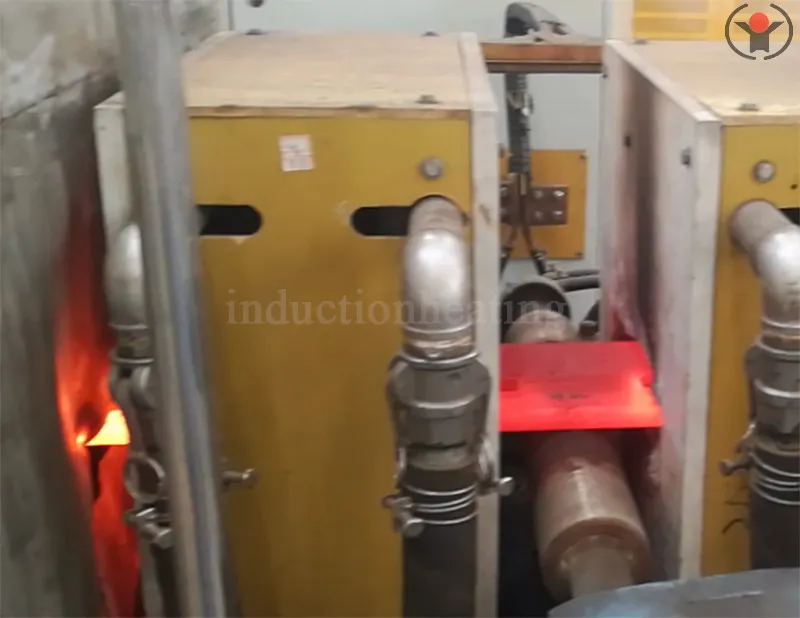

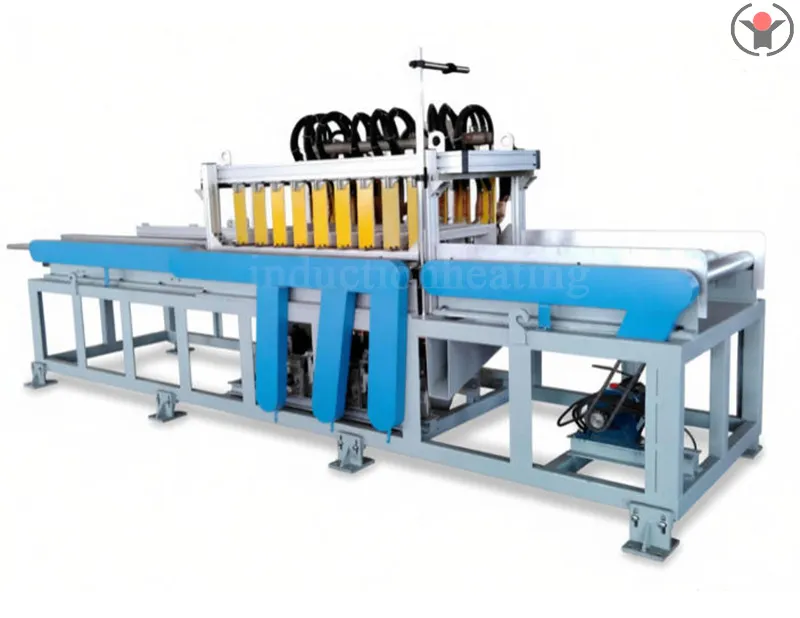

Steel plate quenching heat treatment equipment

Main technical parameters of the equipment: Power supply system: KGPS200~800KW/4~8KHZ or IGBT 200~800KW/4~15KHZ; The hourly output is 0.6-2.5 tons. ·Scope of application: 20mm~60mm thick, 220mm~510mm wide. Energy conversion: Heating one ton of steel to 840 ° C consumes 240-260 kWh per ton. ·Roller electrical isolation: In response to the problem of workpiece and roller ignition, we have designed a sturdy and durable roller electrical isolation system to solve the problem of workpiece ignition damage. ·Applicable workpieces: Suitable for quenching heat treatment of steel plates, slabs, blade angle plates, engineering blade plates, etc.

Inquire Now Next Product

Product Details

Main technical parameters of steel plate quenching production line:

·Applicable workpieces: Suitable for quenching heat treatment of steel plates, slabs, blade angle plates, engineering blade plates, etc.

Power supply system: KGPS200~800KW/4~8KHZ or IGBT 200~800KW/4~15KHZ; The hourly output is 0.6-2.5 tons.

·Scope of application: 20mm~60mm thick, 220mm~510mm wide.

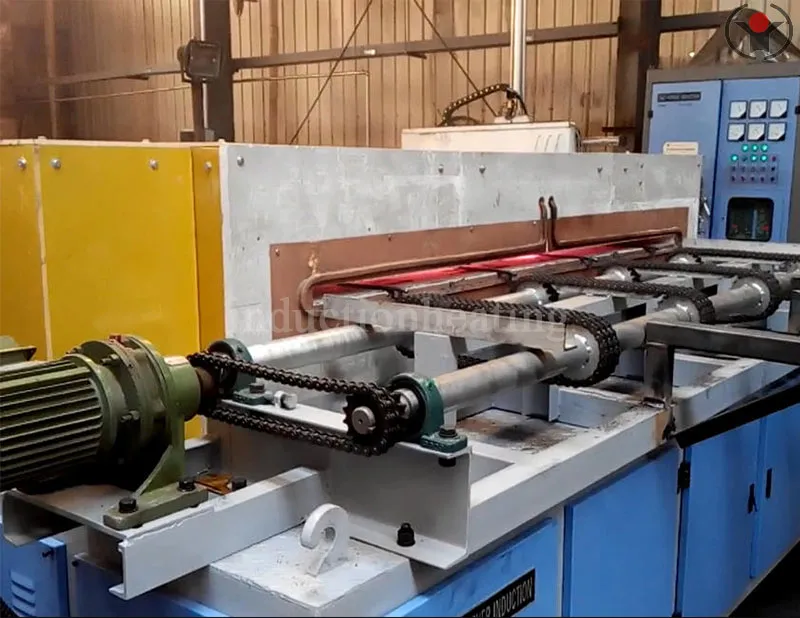

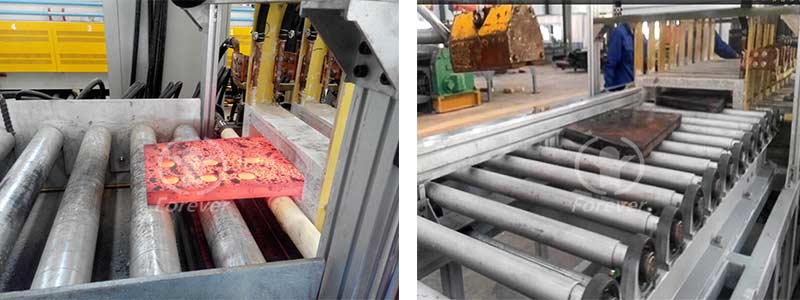

Feeding system: roller conveyor+power double pinch roller, each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed. Roller electrical isolation: In response to the problem of workpiece and roller ignition, we have designed a sturdy and durable roller electrical isolation system to solve the problem of workpiece ignition damage. Formula management function: A powerful formula management system that automatically calls relevant parameters after selecting the steel grade and plate type parameters to be produced, without the need to manually record, view, or input the required parameter values for various workpieces.

Energy conversion: Heating one ton of steel to 840 ° C consumes 240-260 kWh per ton.

Steel plate quenching heat treatment equipment

Advantages and characteristics of steel plate quenching production line: Good straightness The Forever electromechanical steel plate induction heating and quenching production line is adopted, and the straightening function is designed during the heat treatment process. The steel plate can achieve good straightness after heat treatment and quenching. High level of intelligence, safe and easy to operate The steel plate induction quenching heat treatment production line adopts PLC control system+touch screen display, with high intelligence, one click control, more installation, and more convenience. ·Strong reliability for continuous operation Forever Electromechanical IGBT Variable Frequency Power Supply, used for steel plate induction heating heat treatment quenching production line, operates continuously for more than one year without stopping for 24 hours, and has undergone multiple non-stop load changes (switching between heavy and light loads repeatedly) without any faults. ·Energy saving and environmental protection in production The induction heating heat treatment quenching line production process of steel plates does not produce harmful substances, effectively improving the working environment of workers. By using induction frequency to quench steel plates, the yield rate is high and more energy-efficient.

Advantages and characteristics of steel plate quenching production line:

Good straightness

The Forever electromechanical steel plate induction heating and quenching production line is adopted, and the straightening function is designed during the heat treatment process. The steel plate can achieve good straightness after heat treatment and quenching. High level of intelligence, safe and easy to operate

The steel plate induction quenching heat treatment production line adopts PLC control system+touch screen display, with high intelligence, one click control, more installation, and more convenience. ·Strong reliability for continuous operation

Forever Electromechanical IGBT Variable Frequency Power Supply, used for steel plate induction heating heat treatment quenching production line, operates continuously for more than one year without stopping for 24 hours, and has undergone multiple non-stop load changes (switching between heavy and light loads repeatedly) without any faults.

·Energy saving and environmental protection in production

The induction heating heat treatment quenching line production process of steel plates does not produce harmful substances, effectively improving the working environment of workers. By using induction frequency to quench steel plates, the yield rate is high and more energy-efficient.

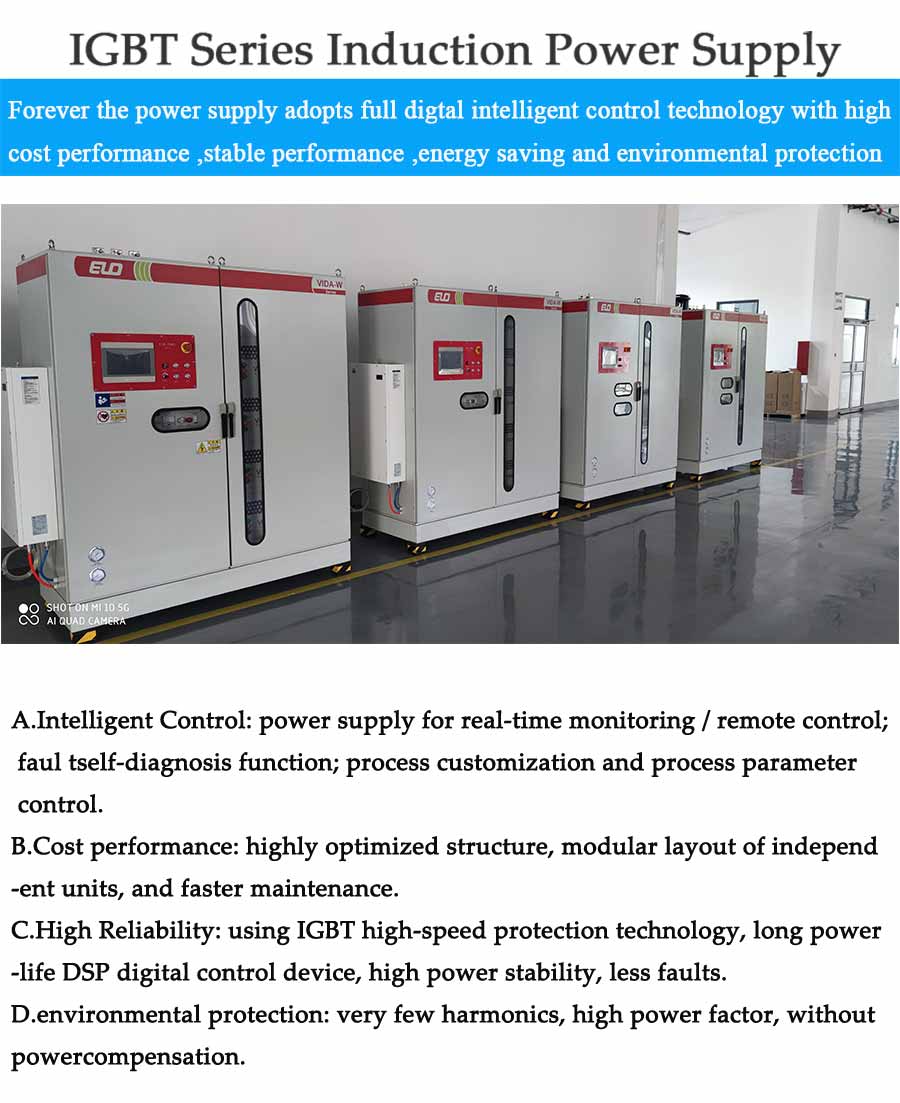

IGBT Induction Power Supply
