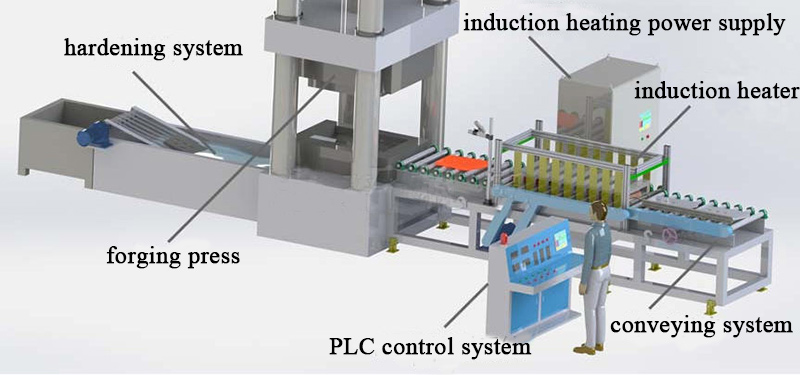

Steel Plate Hot Rolling Production Line
The Forever Electromechanical Steel Plate Hot Rolling Production Line adopts induction heating and rapid cooling to improve the hardness and durability of steel. Induction heating is a non-contact heating process that converts electricity into heat. The steel plate induction heating electric furnace and steel plate heating equipment can heat the steel plate as a whole and locally, making it easy to use and operate.
【Equipment power】 1600KW~12000KW
【 Device Frequency 】 500HZ~1200Hz
【Production capacity】100-300t/h
【 Scope of application 】 Width 570mm -1200mm, thickness 80mm -150mm, length 8000mm -12000mm
Characteristics of steel plate hot rolling production line
The power supply system adopts a brand new digital IGBT induction heating power supply, which greatly saves electricity. Compared with thyristor intermediate frequency, it saves 20% -30% of electricity.
The steel plate hot rolling production line is different from gas furnaces and coal furnaces. During work, there will be no grid side pollution, no heating of transformers, no heating of compensating capacitors in the substation, and no interference with the operation of other equipment.
The induction heating equipment for steel plates has good start-up performance and stable operation. The original components are purchased globally, using world-renowned brands such as American Raytheon infrared thermometers and German Siemens, with reliable quality.
The control system adopts a human-machine interface and can provide a remote control console with a touch screen or industrial computer system according to user needs; Specially customized interpersonal interface, highly user-friendly operation instructions; All digital, high depth adjustable parameters make it easier for customers to control the induction heating electric furnace for steel plates; Strict level management system, perfect one click restoration system; Provide language switching according to different countries and regions.
IGBT Induction Power Supply
PLC intelligent control system

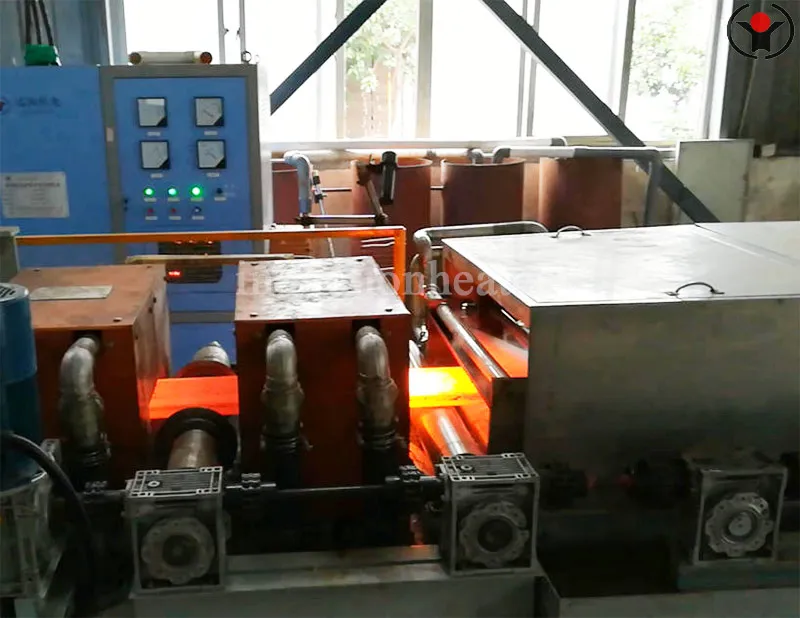

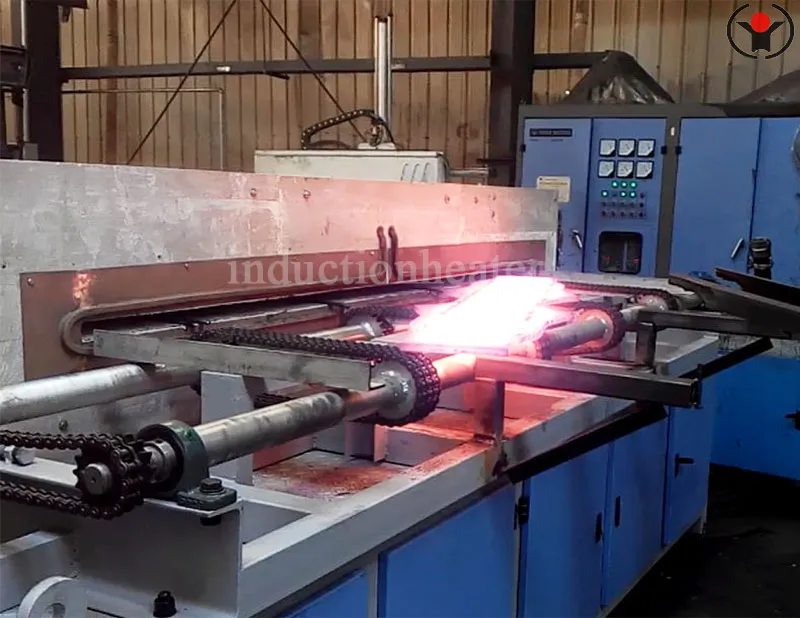

Forever Steel Slab Induction Heat Treatment Furnace Case
