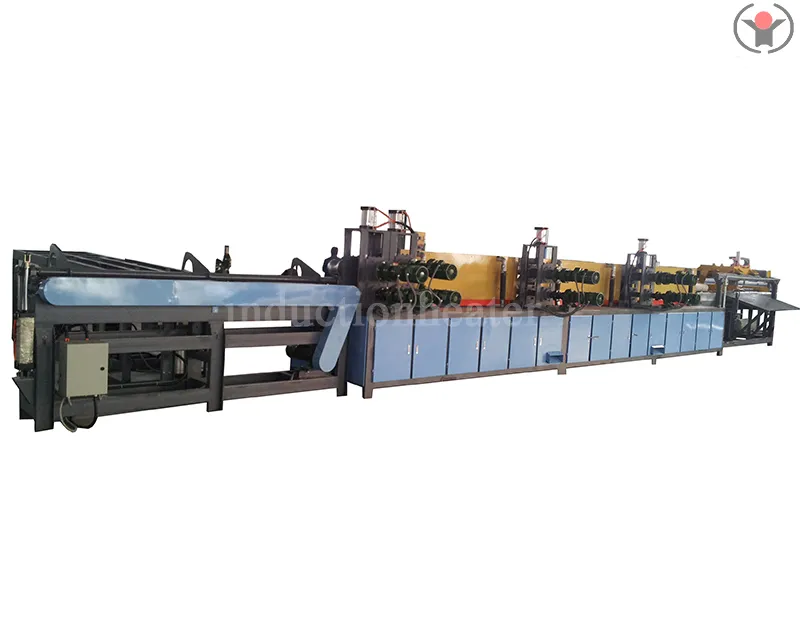

Plate Hardening Induction System

Forever Electromechanical specializes in producing plate quenching furnaces. As long as you tell us your workpiece size, product specifications, heating temperature, process requirements, and the heating method you are currently using, Forever Electromechanical will provide reasonable suggestions for your process improvement and choose the appropriate plate induction quenching furnace for your workpiece requirements, reducing production costs, improving quality, and efficiency to make your products more competitive in the same industry. Welcome to consult.

Induction heating equipment sprayer: Forever Electromechanical uses a circular spray device made of stainless steel material, which is installed at the discharge end of the plate quenching furnace sensor. The workpiece passes through the sprayer, and high-pressure cooling water is sprayed from the spray holes on the inner wall of the sprayer to quench the workpiece. There is a water collection tank below the sprinkler, and the cooling water flows into the quenching circulating water tank through the water collection tank.

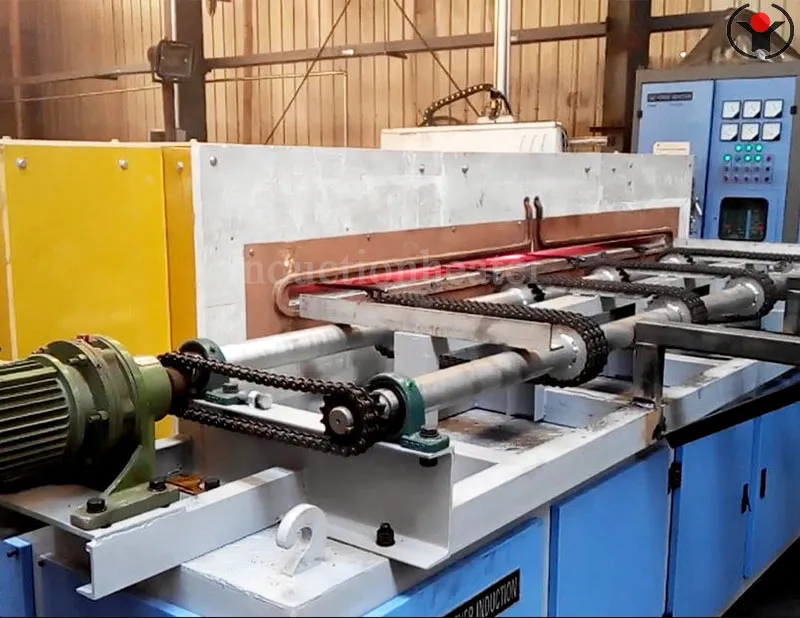

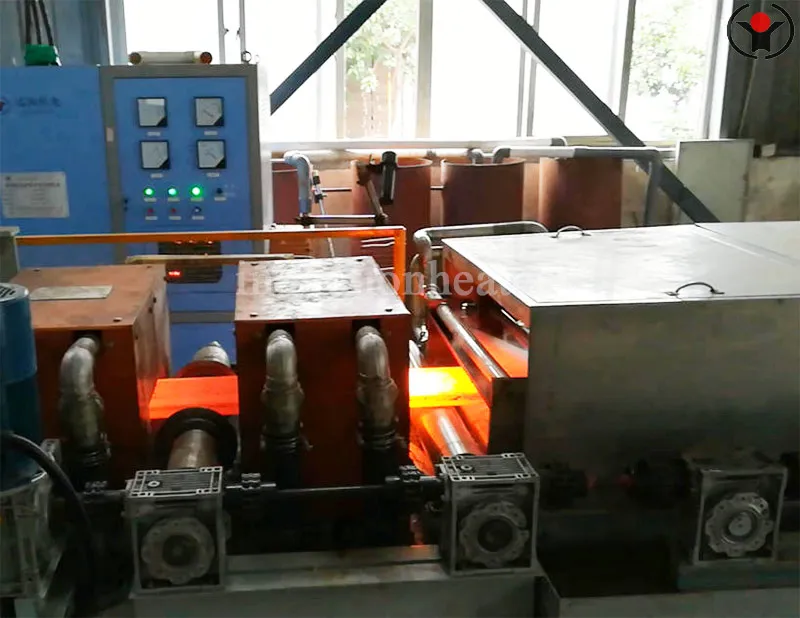

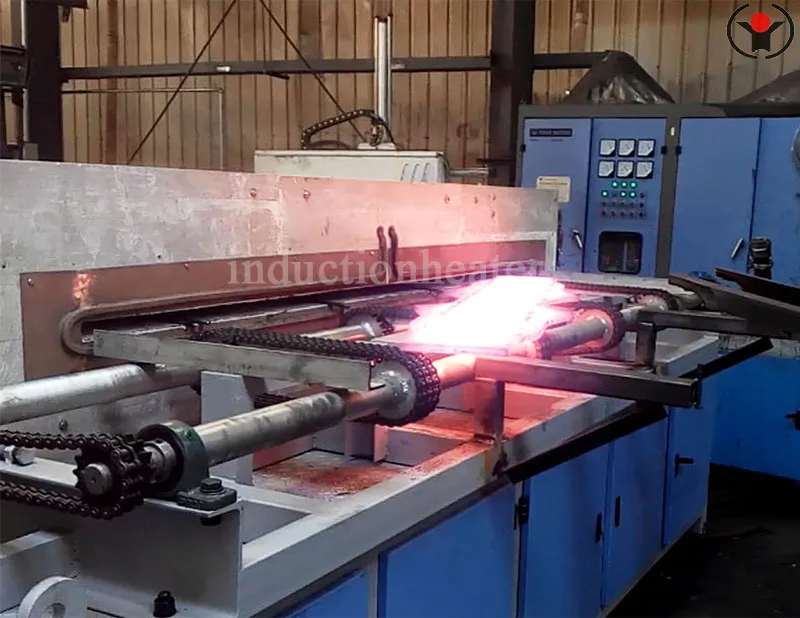

Plate quenching furnace inductor: The inductor copper tube is wrapped with T2 oxygen free copper, with a wall thickness of 3.0mm or more. The inductor insulation material has high strength, high temperature resistance, and longer service life; The input and output ends of the sensor are encapsulated with 5mm purple copper plate, which greatly reduces magnetic leakage and extends its service life. The sensor chassis is made of high-strength aluminum alloy to reduce the impact of magnetic leakage and heat generation on other components. A water-cooled roller is installed between every two sensors, and each roller is equipped with a variable frequency speed motor.

Dual color infrared thermometer and display: The temperature measurement device for the board quenching furnace adopts a non-contact dual color infrared thermometer, which can be used for temperature measurement in harsh environments with dust and smoke. Equipped with temperature display and multiple output interfaces for use with printers or recorders. There is a temperature display on the external control panel, which has the characteristics of high accuracy, good reliability, and strong resistance to environmental influences. When the measured temperature exceeds the set value, there are sound and light alarm functions.
