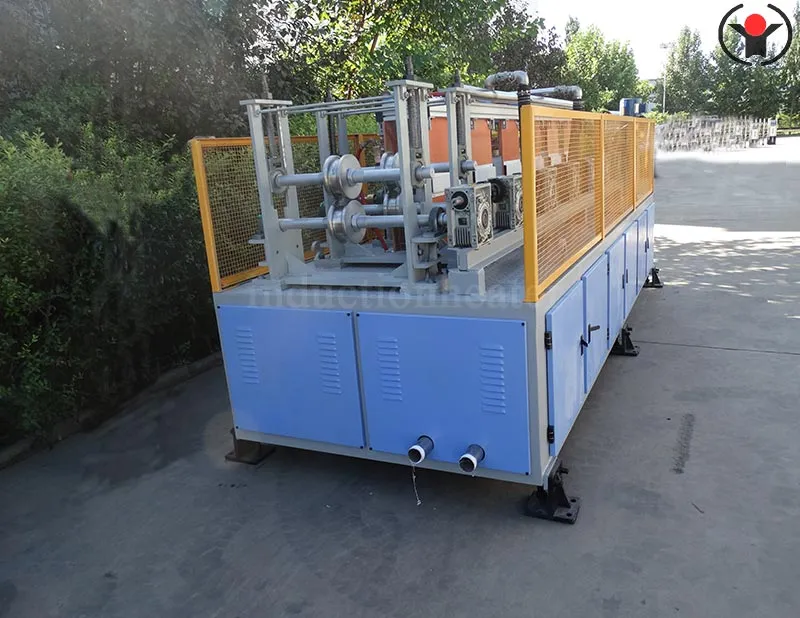

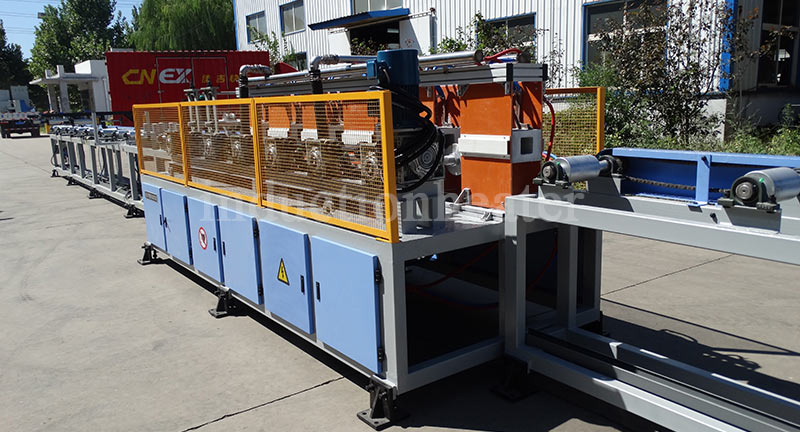

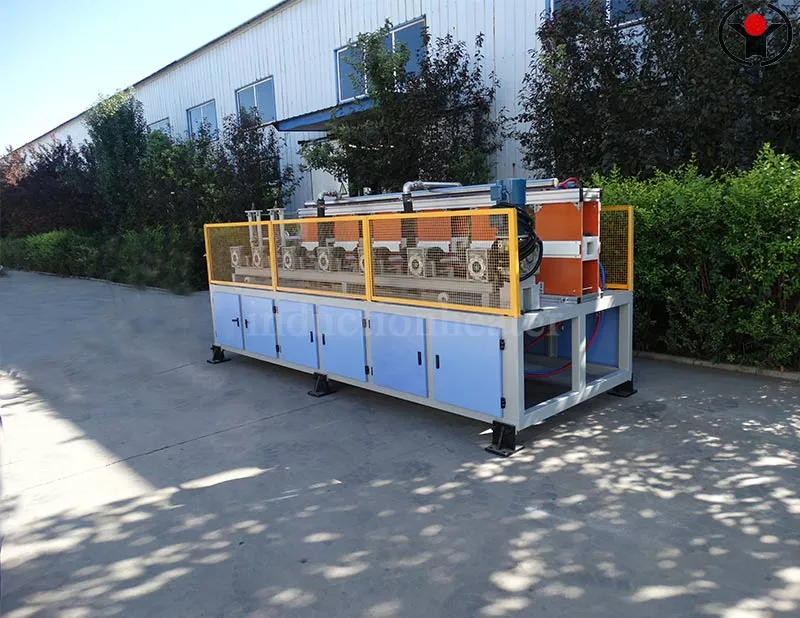

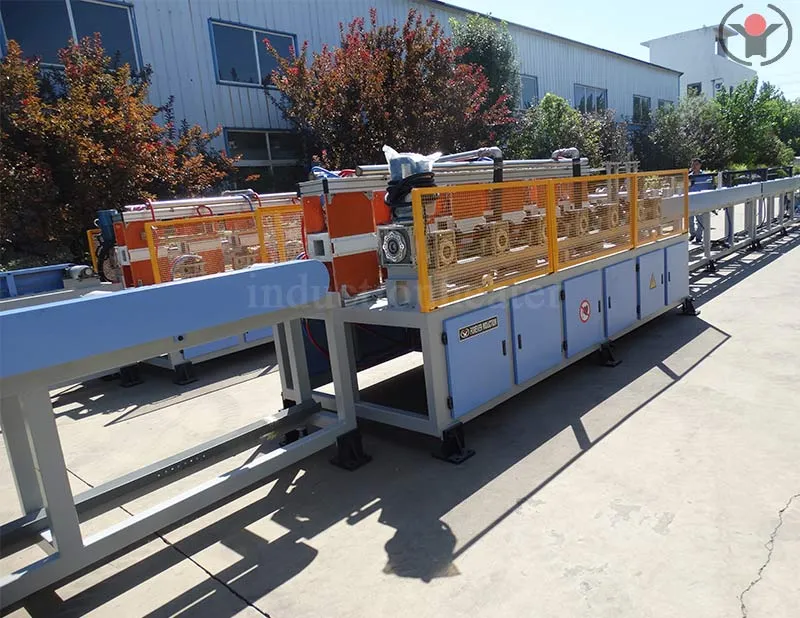

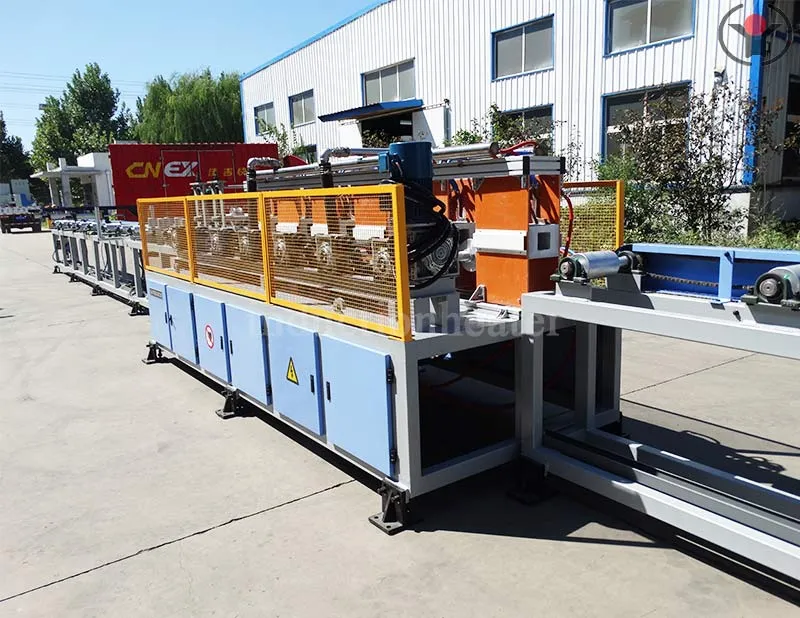

Square tube quenching production line

The square tube quenching production line is a specialized induction heating quenching equipment designed and manufactured for the quenching heat treatment of square tubes. By using a medium frequency furnace for heating, the heating speed has been increased, and online heating quenching has been achieved. Combined with automation control, the intelligence level of the square tube quenching production line has been greatly upgraded, which meets the automatic production requirements of current smart factories.

Improve the mechanical properties of square tubes, enabling them to have good tensile, bending, fatigue resistance, and increased wear resistance

Workpiece specifications: 30x50, 40x40, 20X20-200X200

Pipe wall thickness: 1mm~10mm

Power supply composition: 200KW~1000KW

Applicable workpieces: thin-walled rectangular tubes, square tubes, trailer collision beam tubes, etc

Characteristics of square tube quenching production line

1. The operation panel adopts a color LCD display, a large-sized touch screen, high-definition operation images, and is equipped with a safety protection system for easy operation.

2. The user-friendly design of a sound operating system greatly shortens the preparation work for using the device. Advanced automatic diagnostic system assists operators in quickly controlling the performance of the machine.

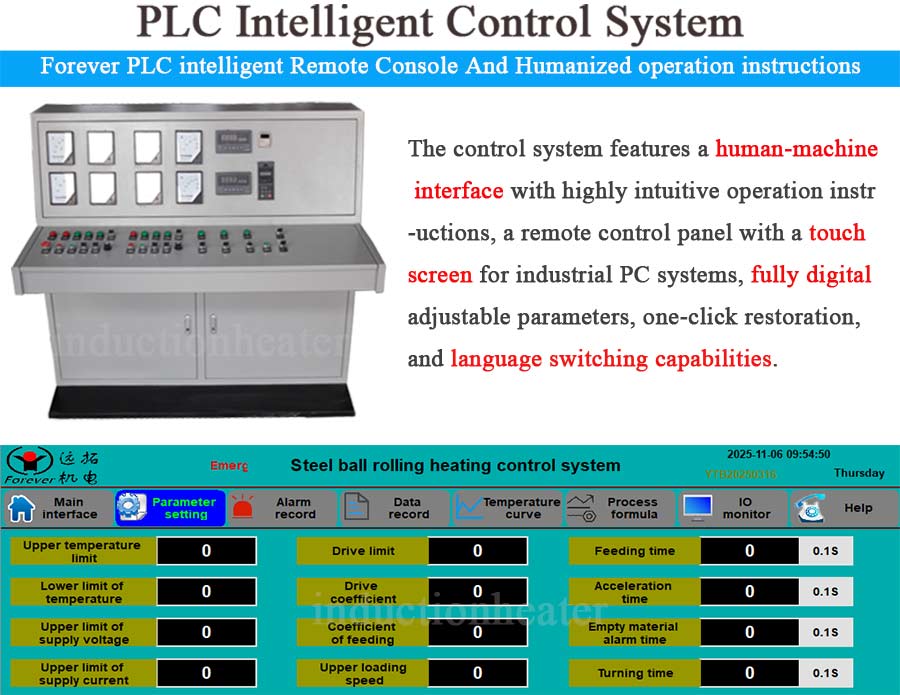

3. Adopting an intelligent PLC control system to ensure the stability of the square tube quenching production line.

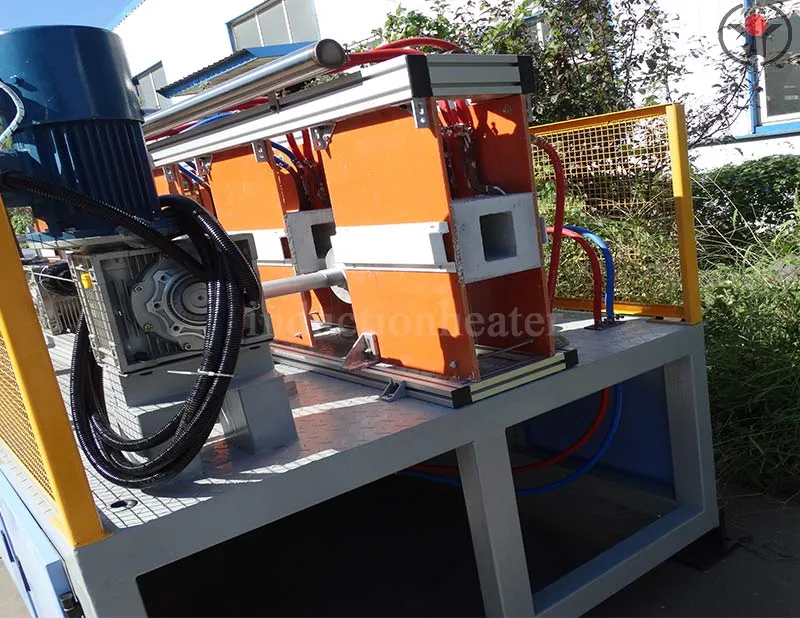

4. The feeding system adopts 304 non-magnetic stainless steel, which is wear-resistant and has a long service life.

IGBT Induction Power Supply

Square Tube Quenching Production Line
