Why Power Alone Cannot Determine the Selection of Quenching and Tempering Machine for Steel Pipe

Jul. 24, 2026

Why Power Alone Cannot Determine the Selection of intermediate frequency induction pipe heat treatment equipment – Forever Electromechanical Shares Complete Selection Logic

Released by Forever Electromechanical

Many pipe processing manufacturers take power as the only standard to select quenching and tempering machine for steel pipe, mistakenly believing that higher power means better heating effect and higher finished product quality. In actual production, countless clients who only refer to power data encounter serious problems after equipment commissioning: uneven hardness on pipe inner and outer walls, severe bending deformation of thick-wall pipes, excessive energy waste, and frequent equipment failures. As a professional manufacturer of induction heat treatment equipment for steel pipes, Forever Electromechanical sorts out multi-dimensional selection standards, reminding global buyers that power is only one auxiliary reference factor instead of the decisive indicator.

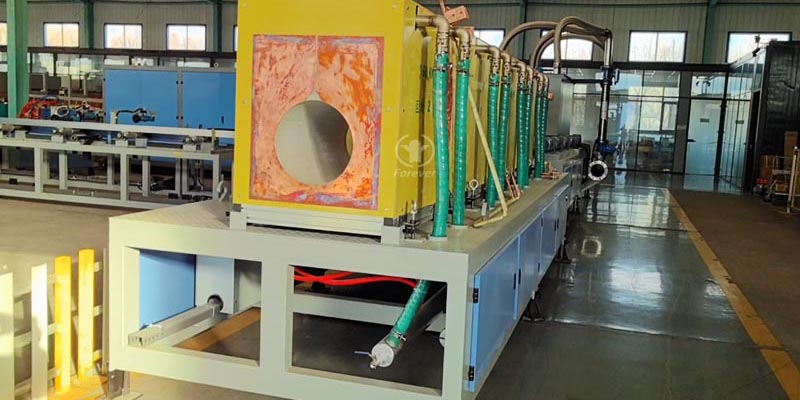

Steel Pipe Cooling System For Quenching (2).jpg

First of all, pipe specifications and conveying structure determine the matching power range, rather than the other way around. The wall thickness, outer diameter, length and single-line hourly output of steel pipes are the primary basis for configuring induction power. A high-power unit blindly matched for thin-wall small-diameter pipes will lead to ultra-fast heating speed, severe pipe oxidation and local overheating, resulting in scrapped workpieces. Conversely, low-power equipment for large-diameter thick-wall oil casings cannot heat the pipe core to the required temperature, causing layered hardness and unqualified mechanical properties. Apart from power, rotary conveying speed, supporting roller load and induction coil length must match pipe parameters synchronously. Forever Electromechanical adopts segmented power distribution design for different pipe sizes to avoid power surplus or insufficiency.

Secondly, the steel pipe material and target heat treatment process demand customized coil structures, independent of power size. Carbon steel, alloy steel, OCTG tubing and high-pressure hydraulic pipes have distinct thermal conductivity and tempering requirements. Even with the same power, ordinary single-turn induction coils fail to realize uniform circumferential heating for alloy drill pipes. Clients need annular composite coils with multi-layer water cooling channels to balance temperature difference between inner and outer walls. If buyers only focus on power and ignore coil customization, power cannot solve the core defect of uneven hardness around the pipe.

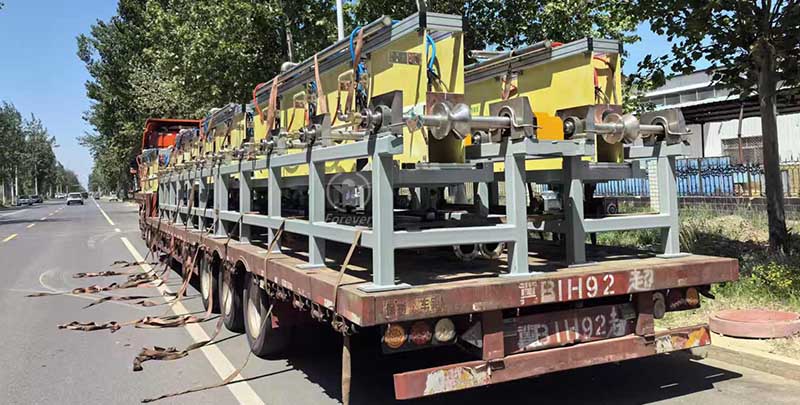

steel pipe induction hardening and tempering machine

steel pipe induction hardening and tempering machine .jpg

Thirdly, intelligent control system and cooling supporting system directly affect the final processing quality, which cannot be replaced by power. A high-power machine without closed-loop infrared temperature control will still produce unstable heating temperature. The annular quenching water spray system, water circulation cooling unit and online hardness testing equipment are equally critical core configurations. Many low-price high-power machines are equipped with simple open water circulation and manual temperature regulation, leading to high water consumption and unstable cooling effect. Forever Electromechanical equips standard QT lines with full digital PLC closed-loop control and graded pressure quenching system to stabilize product quality regardless of power grade.

Fourthly, long-term operation cost and certification standards are hidden selection factors ignored by power-only buyers. High-power equipment with outdated IGBT modules generates huge idle power loss during standby, pushing up electricity bills sharply. CE, ISO and energy-saving certification requirements also require matched power supply, transmission and auxiliary systems, which cannot be achieved merely by increasing power.

Forever Electromechanical suggests purchasers provide complete pipe parameters including pipe size, material grade, target hardness and workshop layout before quotation. Our technical team will match the most suitable power, coil structure and supporting systems comprehensively to balance processing quality, energy consumption and investment cost, avoiding waste of funds caused by single power-oriented selection.
