The induction heat transfer equipment is the core heating equipment before metal forging, extrusion, and heat treatment, with electromagnetic induction and eddy current heating as the core, achieving efficient, accurate, and green overall heat transfer.

1、 Core principle

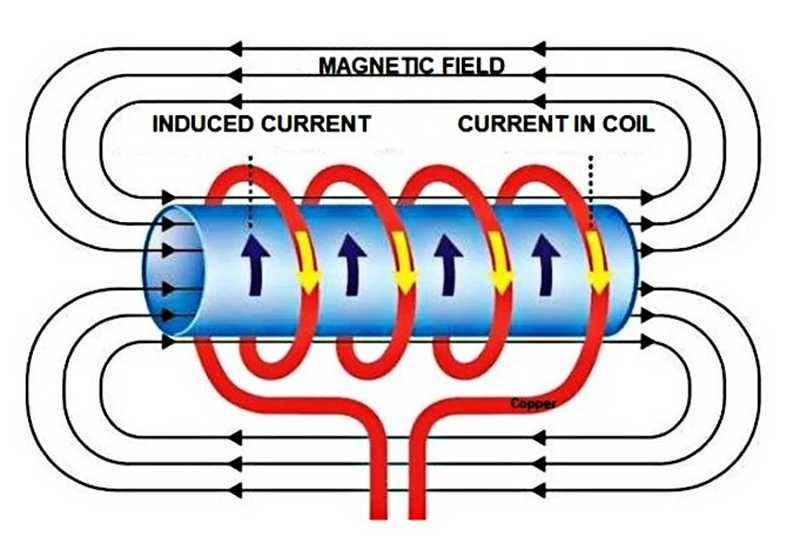

Alternating current is passed into the induction coil to generate an alternating magnetic field. The metal billet is placed in the magnetic field, and eddy currents are induced inside. Due to its own resistance, Joule heat is generated, achieving internal self heating without the need for open flames or contact heat transfer. Medium frequency (1-20kHz) is suitable for deep penetration heating of steel/copper/aluminum billets, with a heating depth of 3-10mm, meeting the uniform preheating requirements before forging/rolling.

2、 Equipment composition (Forever electromechanical standard configuration)

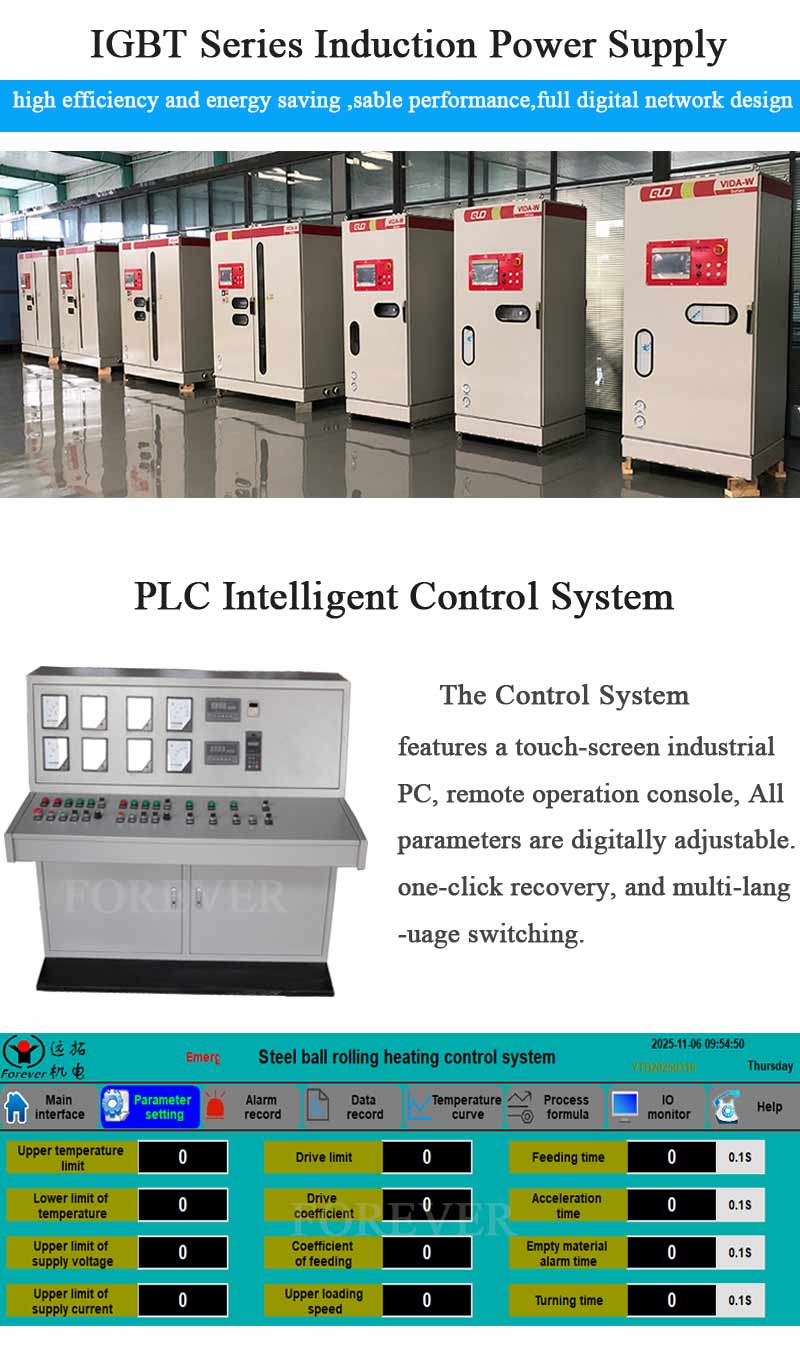

IGBT induction heating power supply: fully digital DSP control, constant power/constant temperature/constant current three modes, 0.2s fast start, efficiency of 90%+.

induction heating machine body: customized coil, suitable for bar/billet/pipe, uniform heating, small temperature difference between core and surface.

PLC+touch screen control system: infrared temperature measurement closed-loop, temperature control accuracy ± 5 ℃, supports continuous/intermittent/multi-stage heating modes.

Cooling+feeding system: closed-loop water cooling, automatic feeding/discharging, suitable for automated production lines.

3、 Technical advantages

Efficient and energy-saving: The thermal efficiency is 80% -90%, which is more than 30% energy-saving than flame/resistance furnaces, and the oxidation loss is only 0.5% -1%.

Accurate and controllable: adjustable frequency/power, programmable heating depth and temperature curve, high process consistency.

Green and environmentally friendly: no smoke, no exhaust gas, in line with low-carbon production requirements.

Stable and reliable: 24-hour continuous operation, suitable for large-scale automated production.

4、 Typical applications

Heat penetration before forging, extruding, and rolling of steel billets/copper billets/aluminum alloy billets; Integrated quenching and tempering of shafts/rods; Continuous heating of metal wires, etc.

Forever Electromechanical has been deeply involved in induction heating for more than 20 years, providing efficient and energy-saving complete solutions for metal thermal processing with fully digital control and variable frequency adaptive technology.
