Technical Breakthrough: Sucker Rod Induction Heating Machine Empowers High-Precision Casting Experimental Furnace Project
In response to the industry’s long-standing pain points of uneven heating, high energy consumption, and unstable product quality in the traditional casting and heat treatment process of petroleum sucker rods, a professional industrial heating equipment manufacturer has successfully completed a full-process experimental verification project for a customized Sucker rod induction heat treatment furnace matched with a casting experimental furnace. The project has achieved remarkable results in precise temperature control, efficient energy saving, and improved casting microstructure consistency, providing a mature and reliable technical solution for the upgrading of high-quality sucker rod casting and heat treatment processes in the petroleum equipment industry.
As a core load-bearing component of petroleum extraction equipment, sucker rods require extremely high material compactness, structural uniformity and mechanical stability. Traditional casting furnaces rely on resistance heating and open-flame heating methods, which suffer from slow temperature rise, large temperature difference in the furnace, serious oxidation of rod blanks, and inconsistent mechanical properties of finished products. In addition, the traditional process has long preheating cycles and high energy loss, which cannot meet the experimental verification requirements of high-precision, low-defect and batch-stable sucker rod casting for new material research and development and process optimization.
Aiming at the above industry bottlenecks, the customized sucker rod induction heating machine for this experimental project adopts advanced electromagnetic induction heating technology and is equipped with an intelligent PLC numerical control system, realizing fully automated and refined heating control for the casting experimental furnace. Different from traditional heating equipment, this set of induction heating equipment can independently adjust core parameters such as heating power, conveying speed and rotating speed according to the specifications of sucker rod blanks (diameter 16-32mm conventional models and customized special models) and casting process requirements . It effectively avoids overheating and damage to the threaded sections of sucker rods, accurately controls the heating transition zone of the rod head, and solves the common problem of local overheating and deformation of rod blanks in traditional casting and heating experiments .
In the experimental furnace verification stage, the technical team carried out multi-group casting and heating cycle tests for carbon steel, alloy steel and other common sucker rod raw materials. The experimental data shows that the
induction heating machine shortens the overall preheating and heating cycle of the casting furnace from the traditional 30-minute level to within 2 minutes, greatly improving the experimental efficiency and meeting the rapid debugging requirements of multi-process and multi-formula casting experiments . At the same time, the equipment supports constant-temperature precise heating, with the internal temperature control accuracy of the experimental furnace controlled within ±5℃, which ensures uniform heating of the entire sucker rod blank, eliminates casting defects such as internal porosity and uneven grain caused by temperature difference, and significantly improves the compactness and tensile strength of cast rod blanks.
In terms of equipment stability and energy consumption, the optimized induction heating structure is matched with a sealed heat preservation cavity of the experimental furnace, which greatly reduces heat loss and surface oxidation of castings. Compared with the traditional resistance heating casting furnace, the overall energy consumption of the equipment is reduced by more than 35%, and the failure rate of long-term continuous experimental operation is extremely low, realizing green and low-carbon experimental production . Equipped with an intelligent temperature sensing and feedback system, the equipment can monitor the real-time temperature curve in the furnace throughout the whole process, automatically record experimental data, and support parameter traceability and process iteration, which provides accurate data support for the research and development of new sucker rod casting processes and material performance improvement .

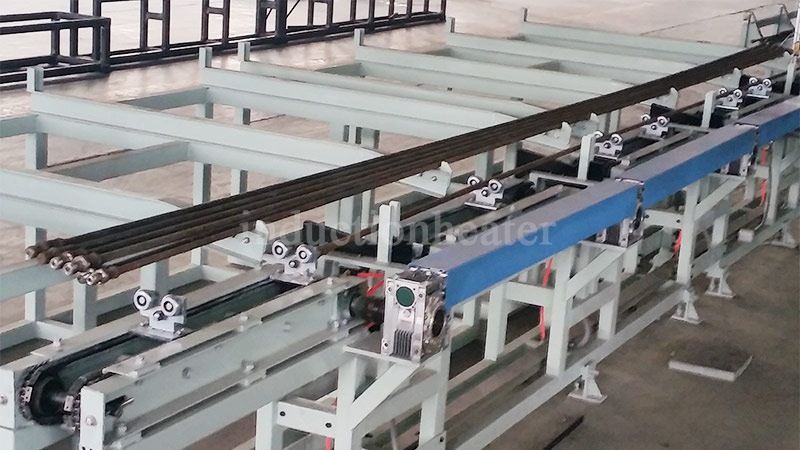

In addition, the equipment is designed with humanized structural optimization. Pressure limiting rollers are installed on both sides of the conveying mechanism to effectively suppress heating deformation of long-strip sucker rod blanks during high-temperature casting and heating, ensuring the straightness and dimensional accuracy of cast finished products . The modular design of the induction heating host and the experimental furnace body is convenient for equipment disassembly, maintenance and experimental scene switching, and can adapt to the experimental requirements of small-batch, multi-variety sucker rod customized casting.
At present, this sucker rod induction heating machine casting experimental furnace system has completed all performance verification and stable trial operation. The successful implementation of the project not only verifies the technical advantages of induction heating technology in the field of precision casting and heat treatment of petroleum equipment, but also fills the market gap of high-efficiency and intelligent special experimental equipment for sucker rod casting process research. In the future, the technology will be further promoted and applied in new product research and development, process optimization and batch production of petroleum sucker rods, helping the petroleum equipment manufacturing industry to move towards high precision, high efficiency and green intelligence.
