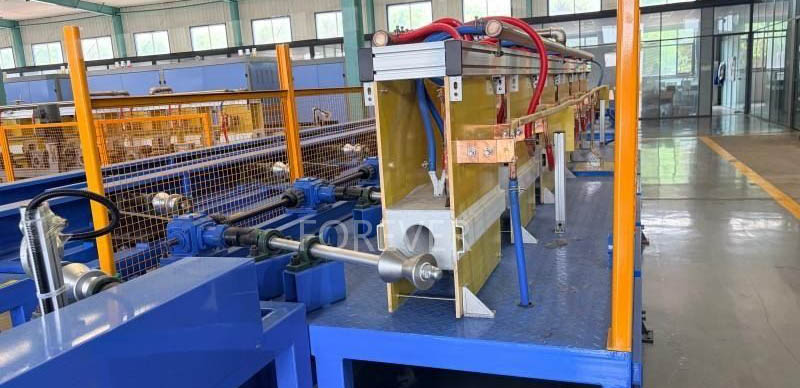

Sucker rod induction heat treatment furnace | Forever Electromechanical

Oil‑field sucker rods bear cyclic tension‑compression loads underground. Induction heat‑treatment furnace directly determines rod hardness, toughness and service life. Forever Electromechanical summarizes core customization points for sucker rod induction heat treatment furnacefor global manufacturers, helping clients obtain stable, high‑yield production lines.

Workpiece parameters define basic configuration

Customization starts with actual sucker‑rod specifications. Diameter, length, material grade are primary inputs. Different sizes determine induction coil structure, power selection and roller‑conveying layout. For 42CrMo and other alloy sucker rods, power and frequency must match material hardenability. Multi‑spec mixed production needs modular replaceable inductors to realize fast‑switching without repeated disassembly, avoiding long‑time downtime for specification adjustment.

Heat‑treatment index decides process layout

Target hardness, effective hardening‑layer depth and straightness are core technical indicators. Sucker‑rod thread area is stress‑concentrated position, requiring differentiated heating reinforcement. Clients pursuing full quenching‑tempering shall equip complete heating, quenching and tempering sections. Only surface‑strengthening demand focuses on heating depth and spray cooling system. All indexes shall be clarified in early stage to prevent finished products from fracture and excessive deformation in practical application.

Power supply & control system for stable batch quality

IGBT induction heating power supply is preferred for sucker‑rod induction furnace. It adjusts output power synchronously with line speed to lower energy consumption. Multi‑point infrared temperature measuring sensor builds closed‑loop temperature control system. PLC‑based control platform stores multi‑group process formulas, supports one‑key parameter calling for different workpieces. For smart factories, reserve MES and cloud remote monitoring interfaces to complete data traceability of whole production flow.

Cooling system affects deformation and qualification rate

Spray quenching cooling directly influences metallographic structure and rod straightness. Custom design includes nozzle arrangement, water pressure and flow rate. Unreasonable cooling easily causes bending deformation or uneven hardness. Forever Electromechanical adopts segmented gradient cooling solution. It balances cooling speed and thermal shock, keeps rod straightness within allowable range, and improves finished‑product qualification rate of continuous production.

Production capacity and workshop layout optimization

Hourly output decides station quantity of heating sections. Small‑batch factories choose compact layout to save workshop space. Large‑capacity projects configure automatic loading‑unloading mechanism for non‑stop unmanned running. While designing overall dimension, fully consider site power condition, water circulation and maintenance space. Reasonable matching of feeding, heating, quenching, tempering and discharging rhythm avoids bottleneck of single station restricting whole‑line output.

Forever Electromechanical adheres to non‑standard customized R&D, avoids rigid standardized equipment. Combining workpiece condition, process requirement and site environment, we deliver complete induction heating machine solution, supporting oil‑field component manufacturers to realize high‑efficiency and high‑quality heat‑treatment production.
