FOREVER Electromechanical Rolls Out Upgraded Furnace Body for Steel Pipe Quenching & Tempering Machine, Boosting Heat Treatment Stability and Energy Efficiency

FOREVER Electromechanical, a professional manufacturer of induction heat treatment equipment for metal pipes, has recently completed a full structural upgrade on the furnace body of its flagship Steel Pipe Quenching & Tempering Machine, addressing long-standing pain points of traditional furnace designs and delivering revolutionary improvements in structural rigidity, thermal insulation, temperature uniformity and maintainability. The optimized furnace unit has passed continuous thermal load testing and been put into mass production, serving seamless alloy pipes, oil casing tubes and hydraulic precision steel pipes for global petroleum, machinery and pipeline manufacturers.

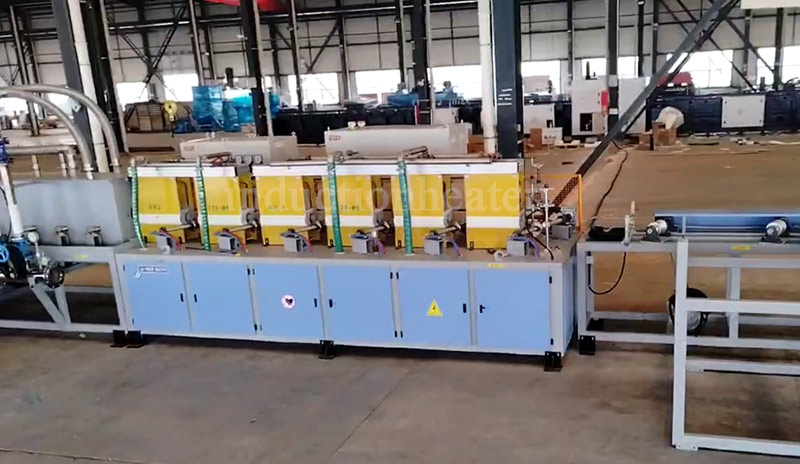

pipe induction hardening and tempering system

For years, conventional steel pipe heat treatment production line adopt simple spliced frames, single-layer refractory lining and basic sealing structures. After months of 24-hour high-frequency induction operation, they easily suffer frame thermal deformation, furnace cavity heat leakage, severe temperature deviation and accelerated lining wear. Uneven internal temperature field leads to inconsistent hardness and toughness along steel pipes, lowering finished product qualification rate. Meanwhile, massive heat dissipation pushes power consumption up, and scattered assembly structures make daily coil inspection, cleaning and component replacement extremely time-consuming, lifting long-term maintenance costs for pipe processing factories.

Targeted at these industrial bottlenecks, the R&D team carried out comprehensive reconstruction covering bearing frame, thermal insulation lining, sealing system, induction coil support and internal cooling layout. The core furnace frame abandons old split assembly and adopts an integrated full welding structure with thickened high-strength low-alloy steel plates, matched with multi-point shock absorption supports and anti-deformation limit baffles. This design effectively offsets thermal stress and electromagnetic vibration generated during induction heating, avoiding furnace wall sagging, lateral displacement and coil offset. Service life of the whole furnace body is extended by over 40%, and equipment downtime caused by structural distortion is cut sharply.

induction heat treatment equipment

The thermal insulation system receives the most critical upgrade: single-layer refractory bricks are replaced with four-layer nano composite energy-saving lining, combining high-aluminum fiber, low-thermal-conductivity castable and sealed reflective layers. The layered structure blocks internal heat radiation loss, limiting overall heat dissipation within 12% and reducing unit energy consumption by 25% compared with old models. The outer shell surface temperature stays below 40℃, cutting workshop ambient heat load and improving operator safety. All pipe inlet and outlet ends are equipped with flexible high-temperature resistant sealing strips, eliminating cold air intrusion and hot air overflow, which stabilizes the internal temperature field and controls cross-section temperature difference of steel pipes within ±3℃.

Inside the furnace cavity, the induction coil fixing frame is redesigned with an integrated water-cooled shield and anti-flashover isolation structure. Optimized oxygen-free copper coil layout forms a uniform closed magnetic loop, solving surface-core temperature imbalance of thick-wall steel pipes. The internal circulating cooling pipeline adopts seamless bending technology to enhance pressure resistance and heat exchange efficiency, supporting stable long-hour high-load operation. In addition, the furnace body applies a modular split design; each heating and tempering section can be independently disassembled, greatly shortening maintenance time for coil replacement and furnace cavity cleaning.

Matched with upgraded PLC zoned temperature control and multi-point infrared real-time monitoring, the pipe induction hardening and tempering furnace body realizes dynamic adjustment of heating power according to pipe diameter, wall thickness and transmission speed. Post-upgrade field data shows steel pipe heat treatment consistency is significantly improved, with product qualification rate rising from 93% to above 99%. The equipment fully meets API pipeline standards and is customizable for pipe outer diameters ranging from 20mm to 350mm, covering carbon steel, alloy steel and wear-resistant pipeline steel processing demands.

Company technical director introduced that this furnace body structural upgrade integrates low-carbon manufacturing and intelligent production concepts, balancing processing quality, energy conservation and operation convenience. Moving forward, FOREVER Electromechanical will continue to iterate induction heat treatment furnace structures, launching personalized upgrade transformation services for old production lines, helping global pipe manufacturers reduce production costs and upgrade high-end steel pipe processing capacity with stable, efficient and eco-friendly quenching & tempering equipment.
