Oil Drill Pipe Induction Heat Treatment Machine Empowers High-End Petroleum Pipe Manufacturing
With the rapid upgrading of global petroleum exploration and drilling engineering, high-strength, high-toughness, and high-precision oil drill pipes have become core consumables for deep and ultra-deep well operations. Traditional heat treatment equipment is plagued by uneven heating, high energy consumption, severe oxidation and decarburization, and low production efficiency, which can no longer meet the stringent quality standards of API series petroleum pipes. Recently, the newly upgraded Oil Drill Pipe Induction Heat Treatment Machine has been officially put into industrial application, bringing a comprehensive technological breakthrough for the precision heat treatment of large-diameter oil drill pipes.

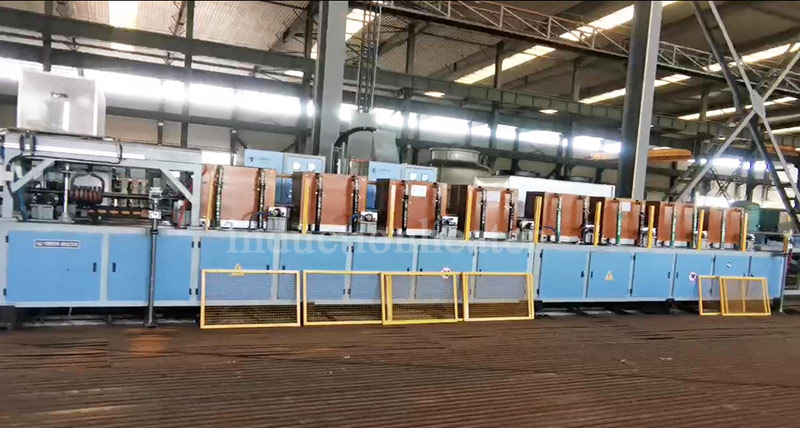

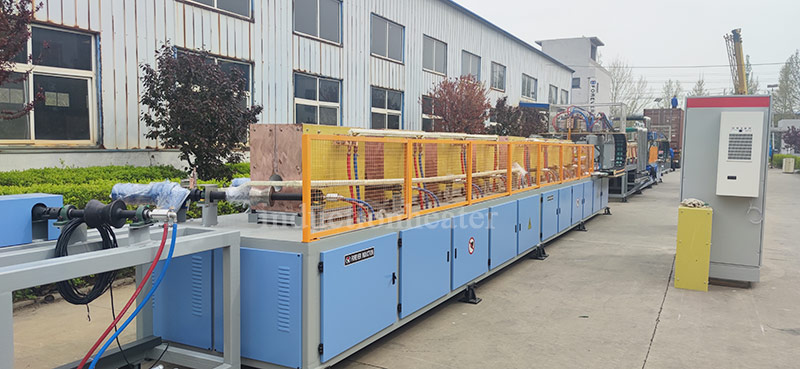

The oil drill pipe heat treatment machine is a specialized intelligent induction quenching and tempering production line tailored for 760mm-specification oil drill pipes, casings and OCTG (Oil Country Tubular Goods). Integrating advanced IGBT air-cooled medium-frequency induction heating technology and full-digital closed-loop control system, the equipment perfectly realizes one-stop continuous heat treatment processes including precise quenching, uniform tempering and controlled cooling, solving multiple pain points of traditional pipe heat treatment and establishing a new benchmark for high-efficiency and high-quality petroleum pipe processing.
Core Advantage 1: Ultra-Uniform Heating & Superior Product Quality Stability
Different from the overall slow heating mode of traditional resistance furnaces and gas furnaces, the model adopts optimized multi-stage segmented induction heating and helical rotating conveying technology. Equipped with uniquely designed diagonal V-shaped roller groups, the equipment drives large-diameter drill pipes to perform synchronous spiral rotation and linear feeding, ensuring 360° circumferential uniform heating without dead angles. Supported by high-precision infrared temperature measurement and PLC full closed-loop temperature control system, the heating temperature error is controlled within ±5℃, which completely avoids quality defects such as uneven hardness, local overheating and insufficient quenching.
This precise heating mode greatly reduces surface oxidation and decarburization layer (less than 0.1mm), maintaining the smooth metallic luster of the drill pipe surface. After heat treatment, the drill pipe features stable tensile strength, yield strength and impact toughness, fully complying with API 5CT international standards, and effectively improving the fatigue resistance and deep-well impact resistance of oil drill pipes in complex downhole environments.
Core Advantage 2: High Energy Efficiency & Low Operating Cost
Energy conservation and consumption reduction are the prominent highlights of the oil drill pipe heat treatment machine. Adopting high-efficiency IGBT variable frequency power supply architecture, the equipment realizes directional concentrated heating through electromagnetic induction skin effect, with a thermal efficiency of over 90%, far exceeding that of traditional heating equipment. Compared with conventional furnace heat treatment, its comprehensive energy consumption is reduced by 40%-50%, with stable unit energy consumption controlled at 260-280 kWh per ton of pipes.
The equipment supports instant start-stop heating without preheating waiting time, eliminating long-term heat loss of traditional furnaces. The independent circulating water cooling system and air-cooled power supply design further reduce auxiliary energy consumption, greatly lowering the long-term production and operation costs for pipe manufacturers while realizing green and low-carbon production.
Core Advantage 3: Intelligent Automatic Operation & Ultra-High Production Efficiency
The heat treatment production line is equipped with a full intelligent automatic control system, integrating automatic feeding, constant-speed conveying, precise heating, proportional spray cooling, automatic tempering and discharging. It supports one-key parameter setting for different materials such as 42CrMo, 40Cr and 35Mn2 drill pipes, with adaptive frequency conversion and power adjustment functions.
The whole production process realizes unmanned automatic operation, effectively avoiding human operation errors. The rapid induction heating mode shortens the heat treatment cycle of a single drill pipe from hours to minutes, and the continuous online production mode greatly improves production capacity, solving the bottleneck of low output of large-diameter oil pipe heat treatment in the industry. Meanwhile, the built-in fault self-diagnosis and intelligent protection system can real-time monitor equipment operation status, effectively reducing failure rate and maintenance costs.
Core Advantage 4: Low Deformation & Strong Operational Adaptability
Aiming at the problem of easy bending and deformation of large-diameter and thick-walled drill pipes during heat treatment, the 760 model optimizes the roller spacing, conveying speed and spray cooling balance structure. The stable spiral conveying system effectively reduces pipe radial runout, and the multi-stage uniform spray cooling technology ensures synchronous and consistent cooling of the inner and outer walls of the drill pipe. The heat-treated drill pipe has extremely small linear deformation, no cracking or residual stress concentration, and excellent product consistency.
In addition, the equipment has strong compatibility, covering the heat treatment processing of various specifications of petroleum drill pipes, casings and structural pipes. It features compact overall structure, flexible installation and simple daily maintenance, which can quickly adapt to diversified production needs of manufacturers and realize flexible switching of multiple product models.
Industry Value & Market Prospect
As a dedicated high-end equipment for large-diameter oil drill pipe heat treatment, the induction heat treatment machine breaks through the technical limitations of traditional equipment in precision, efficiency and energy conservation. It not only improves the overall quality level of domestic petroleum steel pipes, but also helps pipe manufacturing enterprises reduce costs, increase efficiency and upgrade green production.
With the continuous development of deep-sea and deep-earth oil and gas exploration, the market demand for high-performance oil drill pipes continues to rise. The oil drill pipe heat treatment machine, with its superior comprehensive performance, will become the core preferred equipment for high-end petroleum pipe processing, injecting strong power for the high-quality development of the global petroleum equipment manufacturing industry.
